Installation Procedure

WARNING: This page is about a different car, the 2006 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

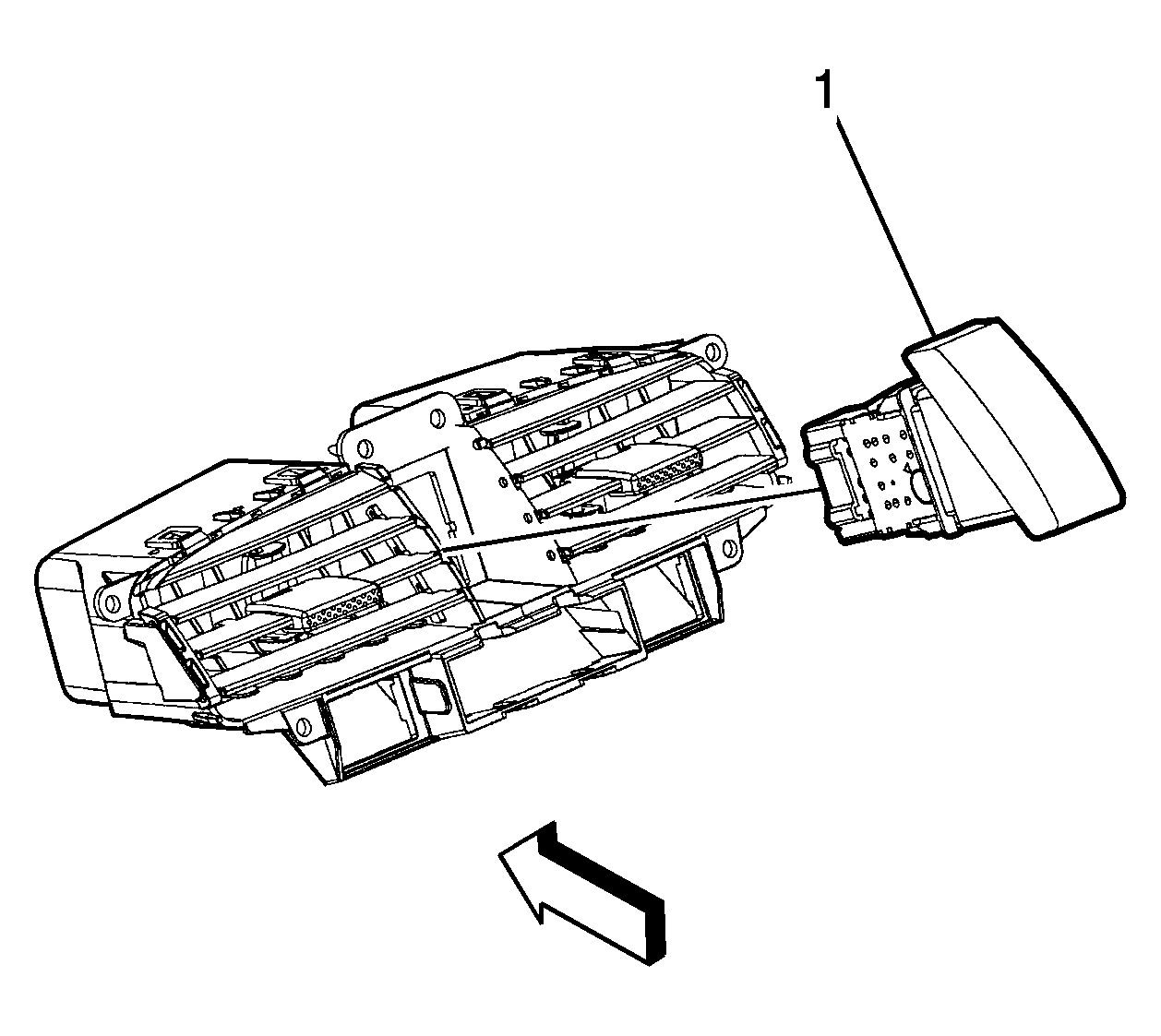

Fig 1: Hazard Switch
GM1716377Courtesy of GENERAL MOTORS CORP.
  1. Align the switch (1) with the trim plate and clip in place, insuring tabs are fully seated.
  2. Connect the electrical connector to the hazard switch.
  3. Install the I/P center trim bezel. Refer to Trim Bezel Replacement - Center in Instrument Panel, Gages and Console.
  4. Test the flasher switch for proper operation.
