Instrument Panel Components
WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

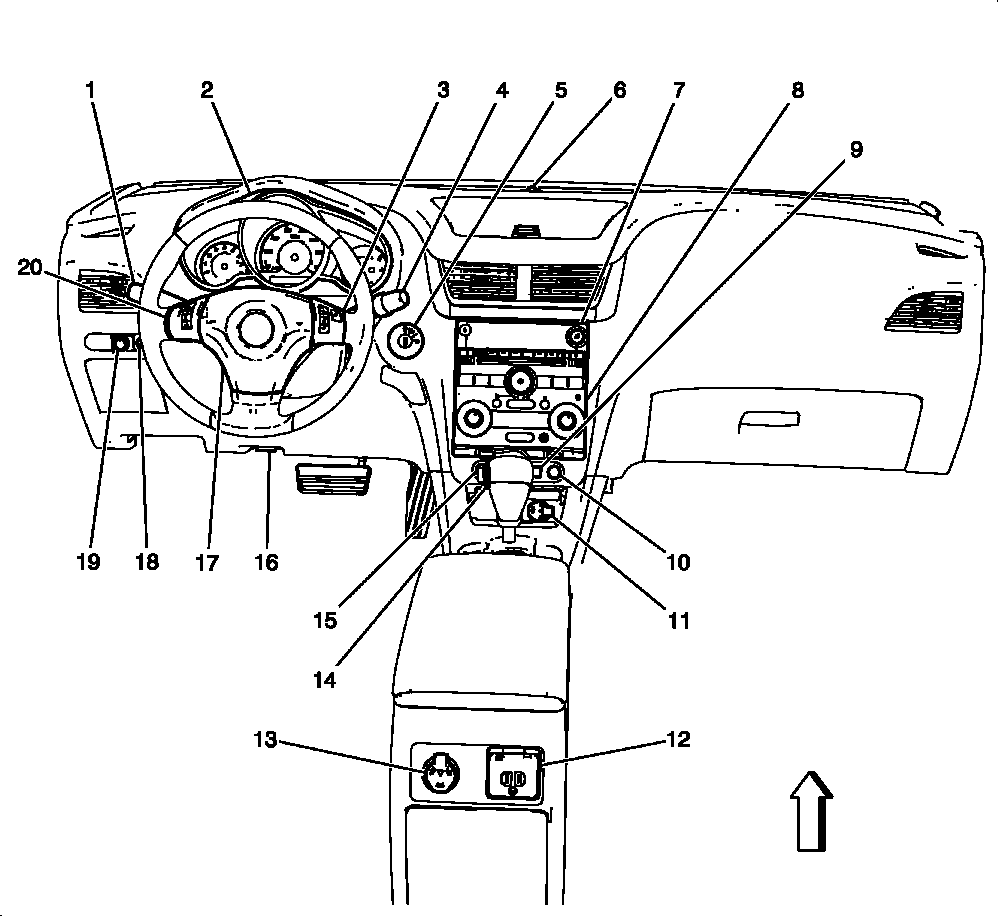

Instrument Panel Components
| Component Name | Callout |
|---|---|
| Turn Signal/Multifunction Switch | 1 |
| Instrument Panel Cluster (IPC) | 2 |
| Steering Wheel Control Switch - Right | 3 |
| Windshield Wiper/Washer Switch | 4 |
| Ignition Switch | 5 |
| Sunload Sensor (C68)/Ambient Light Sensor (C60) | 6 |
| Radio | 7 |
| HVAC Control Module | 8 |
| Inflatable Restraint I/P Module Indicator | 9 |
| Traction Control Switch (TCS) | 10 |
| Accessory Power Outlet- I/P | 11 |
| Accessory Power Outlet - 110V AC (KV1) | 12 |
| Accessory Power Outlet- Center Console | 13 |
| Transmission Manual Shift Switch | 14 |
| Hazard Warning Switch | 15 |
| Data Link Connector (DLC) | 16 |
| Inflatable Restraint Steering Wheel Module | 17 |
| Fog Lamp Switch (T96) | 18 |
| I/P Dimmer Switch | 19 |
| Steering Wheel Control Switch - Left | 20 |
