Center Console Components

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Center Console Components

Component Name Callout
Automatic Transmission Manual Shift Switch 1
Automatic Transmission Shift Lever 2
Automatic Transmission Shift Lever Position Indicator 3
Automatic Transmission Shift Lock Control Solenoid 4

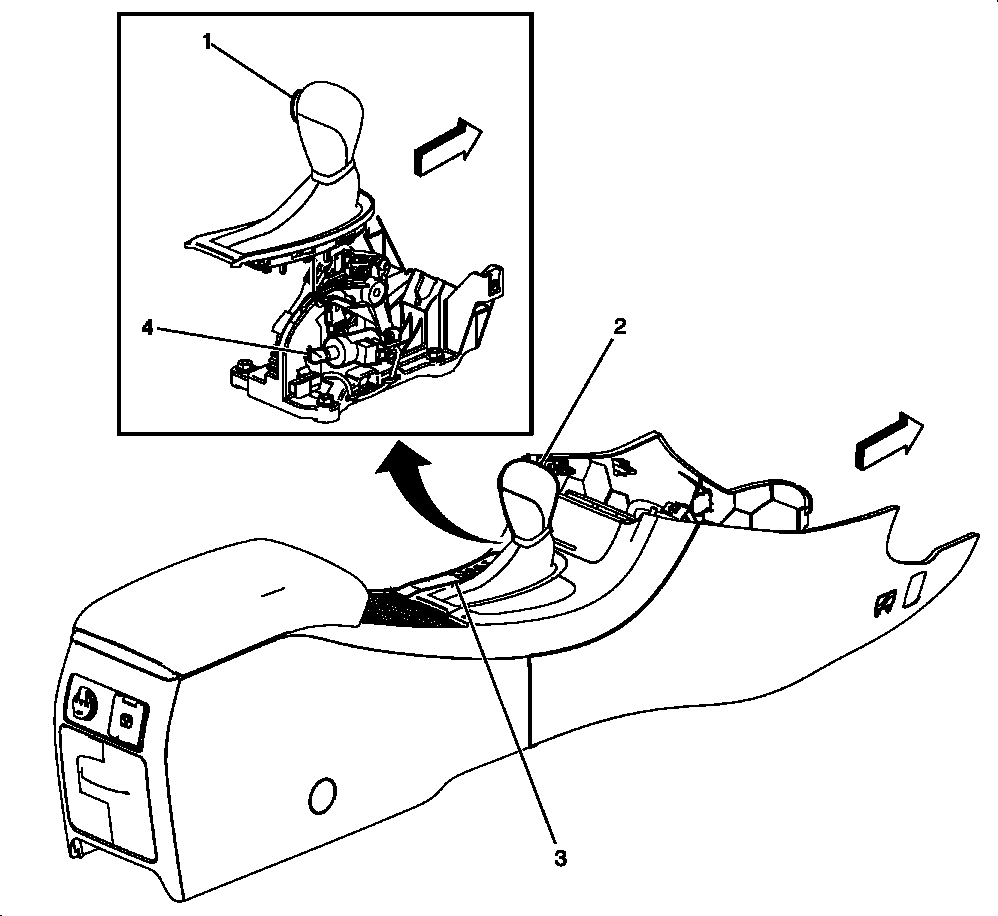

Fig 1: Center Console Components
GM2700212Courtesy of GENERAL MOTORS COMPANY
