Behind the Instrument Panel Components
WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

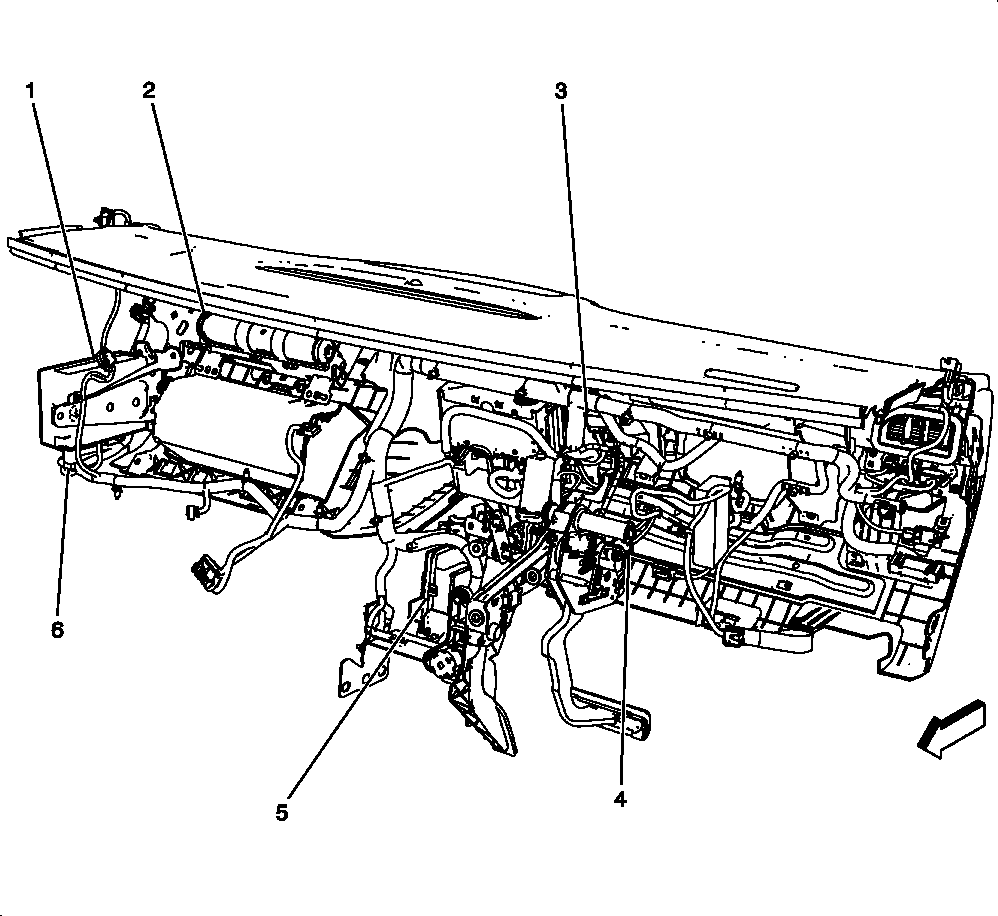

Behind the Instrument Panel Components
| Component Name | Callout |
|---|---|
| Vehicle Communications Interface Module (VCIM) (UE1) | 1 |
| Inflatable Restraint I/P Module | 2 |
| Theft Deterrent Module (TDM) | 3 |
| Brake Pedal Position (BPP) Sensor | 4 |
| Body Control Module (BCM) | 5 |
| Wireless Communication Interface Antenna- Bluetooth (UPF) | 6 |
