Behind Right Side and Center of the Instrument Panel Components
WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

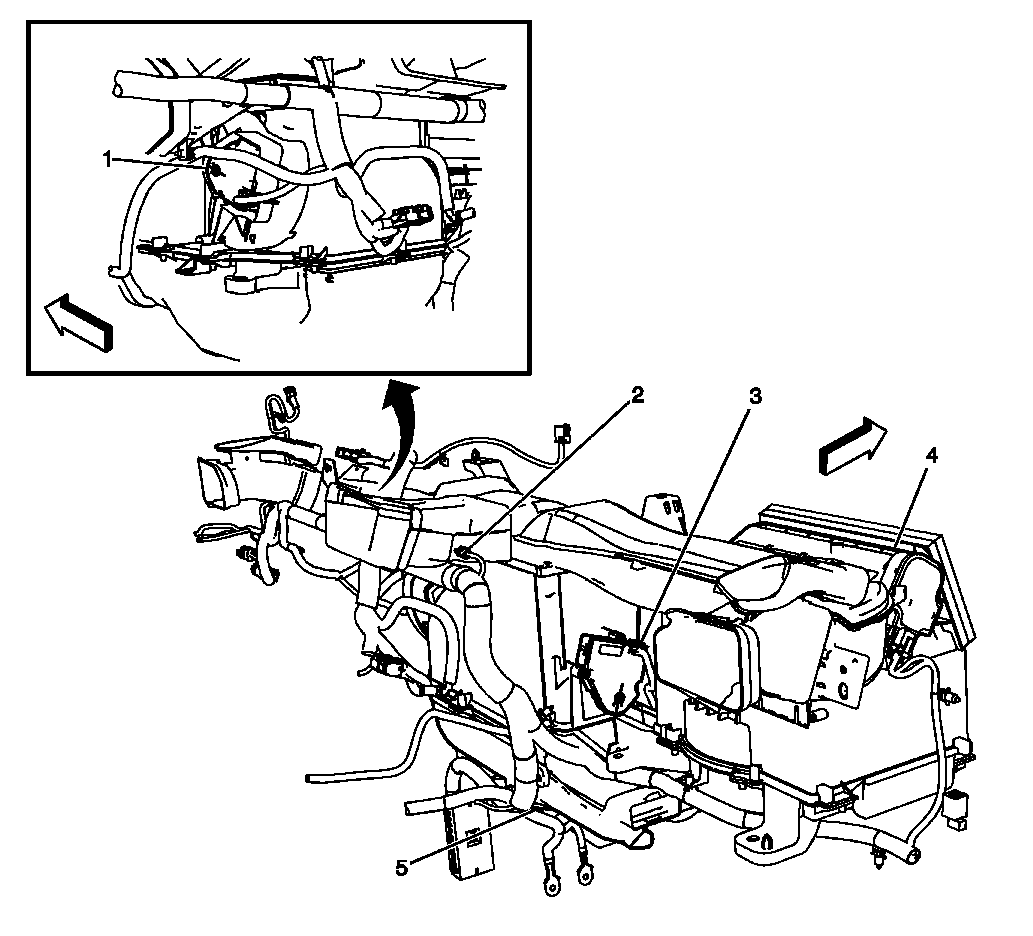

Behind Right Side and Center of the Instrument Panel Components
| Component Name |
Callout |
| Mode Actuator |
1 |
| Air Temperature Sensor- Upper (C68) |
2 |
| Air Temperature Actuator |
3 |
| Recirculation Actuator |
4 |
| Air Temperature Sensor- Lower (C68) |
5 |
Courtesy of GENERAL MOTORS COMPANY
