Front of the Vehicle Components

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Front of the Vehicle Components

Component Name Callout
Headlamp - Right Low Beam 1
Park/Turn Signal Lamp - Right 2
Headlamp - Right High Beam 3
Park/Turn Signal Lamp - Left 4
Headlamp - Left High Beam 5
Headlamp - Left Low Beam 6
Side Marker Lamp - Left Front 7
Fog Lamp - Left Front (T96) 8
Side Marker Lamp - Right Front 9
Fog Lamp - Right Front (T96) 10

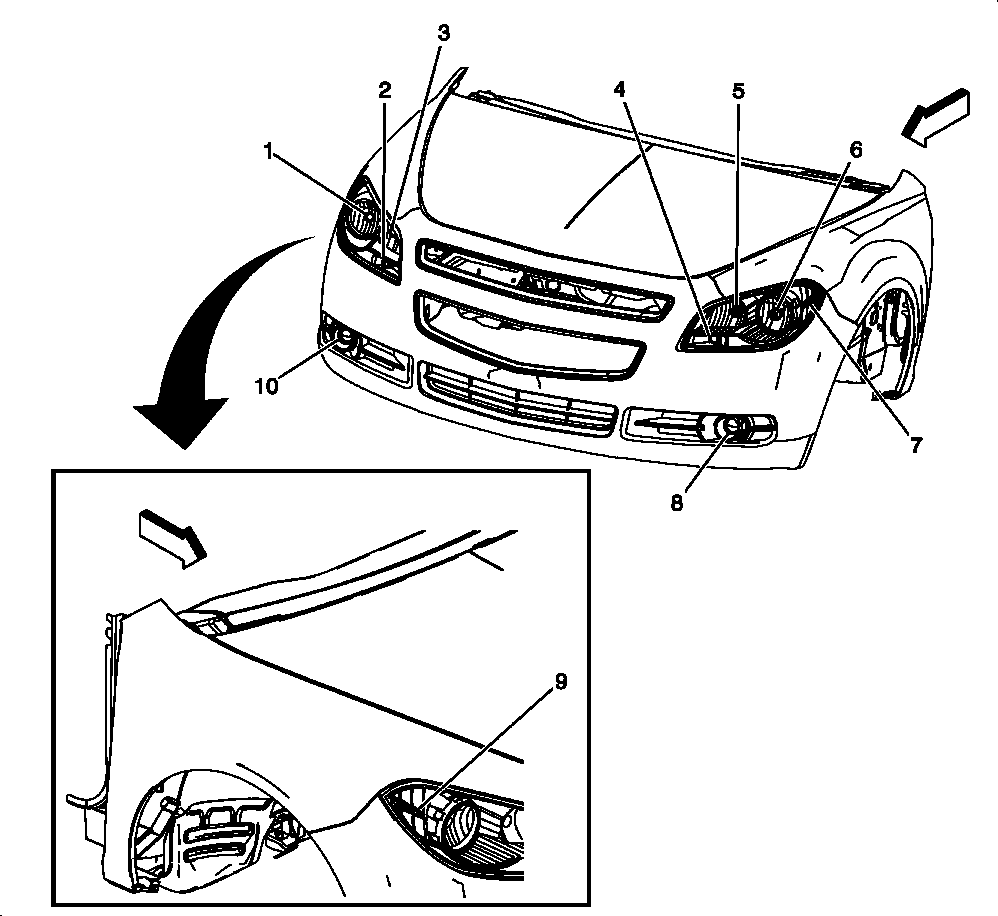

Fig 1: Front of the Vehicle Components
GM2356312Courtesy of GENERAL MOTORS COMPANY
