Installation Procedure

IMPORTANT: The service resonator pipe is designed to attach to either the production or service muffler assembly.

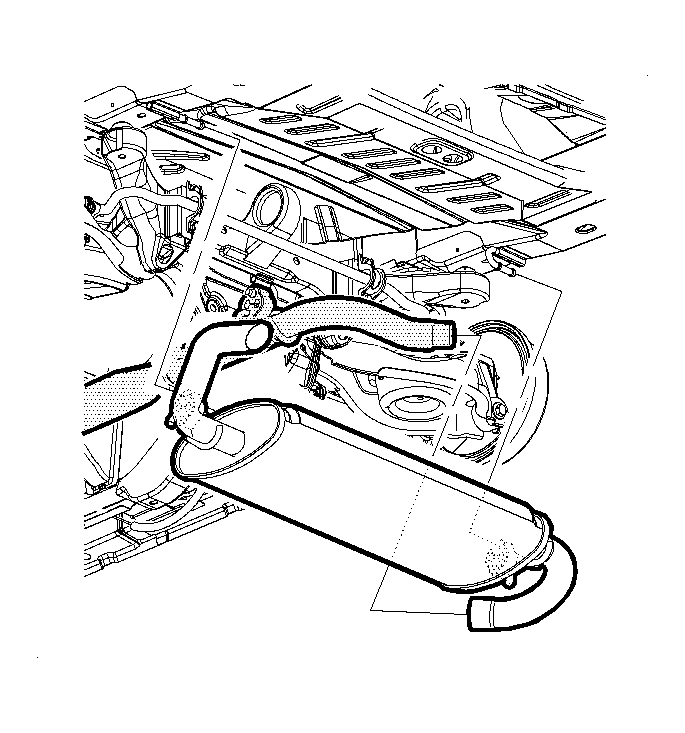

    Fig 1: Positioning Service Muffler & Tailpipe Assembly
    GM926862Courtesy of GENERAL MOTORS CORP.
  1. Deburr the pipe ends as necessary.
  2. Position the service muffler and tailpipe assembly onto the intermediate pipe.
  3. Install the rubber isolator to mount hanger.
    4. Fig 2: View Of Rear Muffler Pipe Service Clamp
    GM927058Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  4. Install the service clamp and tighten

    Tighten:  Tighten the rear muffler pipe service clamp to 45 N.m (33 lb ft).
