Installation Procedure

    Fig 1: View Of Hanger From The Rubber Isolators
    GM926825Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The service resonator pipe is designed to attach to either the production or service muffler assembly.
  1. Deburr the pipe ends as necessary.

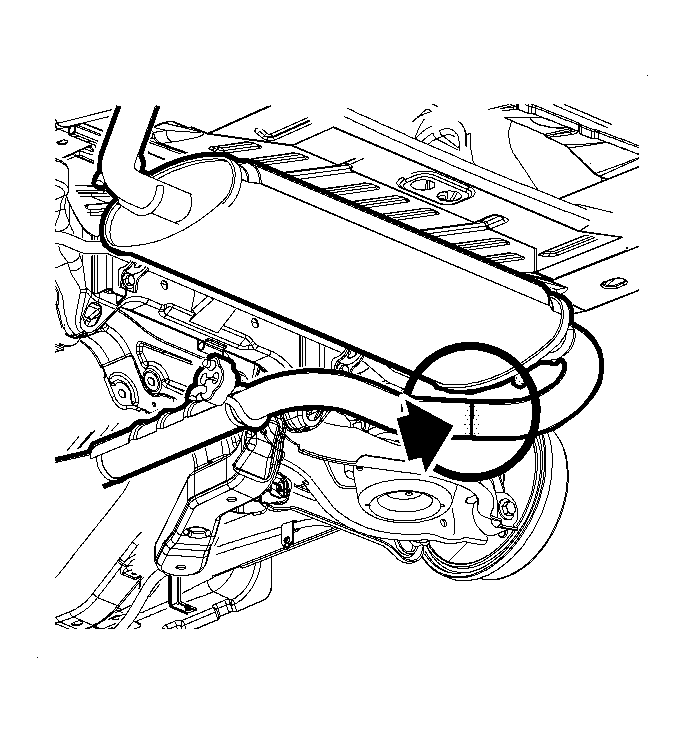

    2. Fig 2: Positioning Service Intermediate Pipe & Resonator Assembly
    GM926852Courtesy of GENERAL MOTORS CORP.
  2. Position the service intermediate pipe and resonator assembly on the rear muffler pipe.
    3. Fig 3: View Of Gasket Onto The Front Pipe Flange
    GM898156Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  3. Install the new gasket onto the front pipe flange. Position the resonator pipe to flange. Install the nuts and tighten.

    Tighten:  Tighten the resonator pipe-to-flange nuts to 30 N.m (22 lb ft).

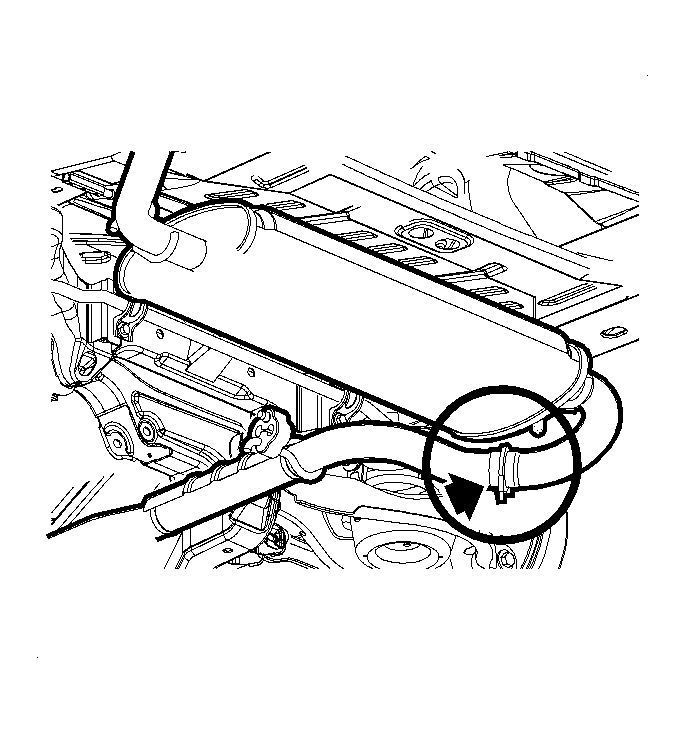

    4. Fig 4: View Of Rear Muffler Pipe Service Clamp
    GM927058Courtesy of GENERAL MOTORS CORP.
  4. Install the service clamp and tighten.

    Tighten:  Tighten the rear muffler pipe service clamp to 45 N.m (33 lb ft).

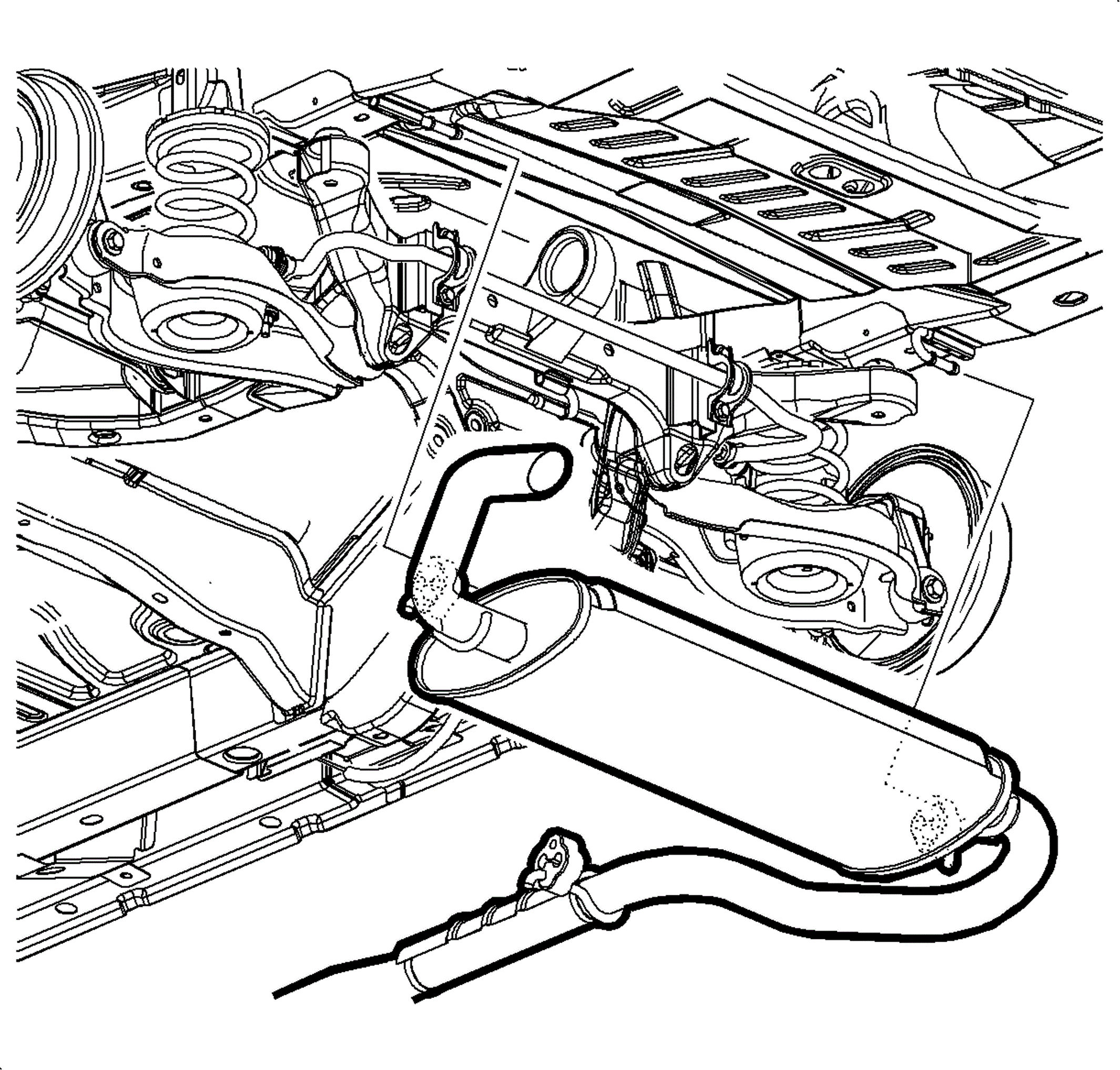

    5. Fig 5: Removing/Installing Intermediate Pipe & Muffler Assembly
    GM926831Courtesy of GENERAL MOTORS CORP.
  5. Install the rubber isolator to mount hanger.
