Installation Procedure

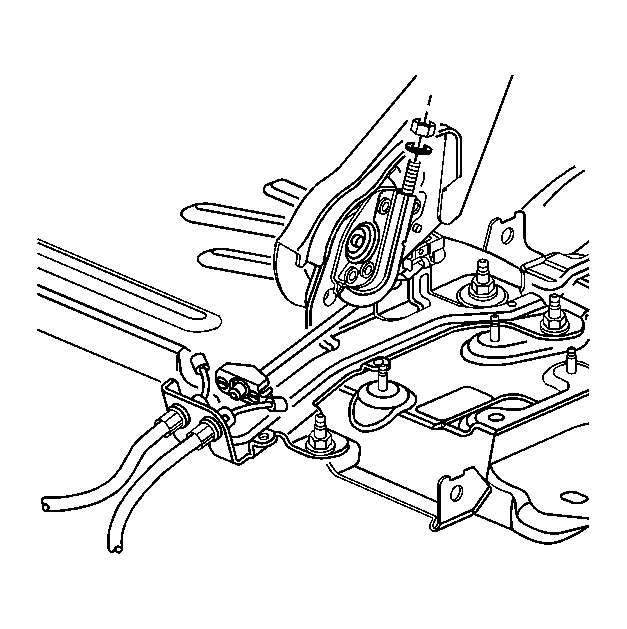

    Fig 1: View Of Front Park Brake Cable & Adjusting Nut
    GM891458Courtesy of GENERAL MOTORS CORP.
  1. Install the front park brake cable to the park brake lever.
  2. Install the rear cable ends to the cable equalizer.

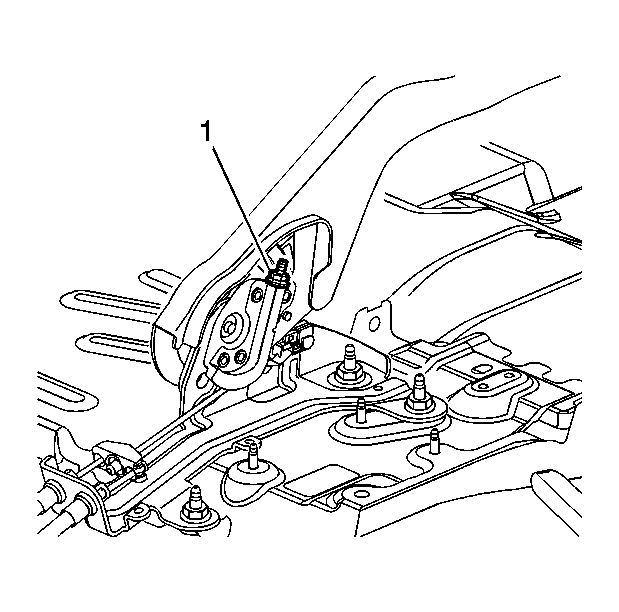

    3. Fig 2: Locating Parking Brake Cable Adjusting Nut
    GM891460Courtesy of GENERAL MOTORS CORP.
  3. Using ONLY hand tools, install the washer and NEW adjusting nut (1) to the front park brake cable.
  4. Adjust the park brake cable tension. Refer to Park Brake Adjustment .
  5. Install the front floor console. Refer to Front Floor Console Replacement .
  6. Enable the SIR system. Refer to SIR Disabling and Enabling .
