Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

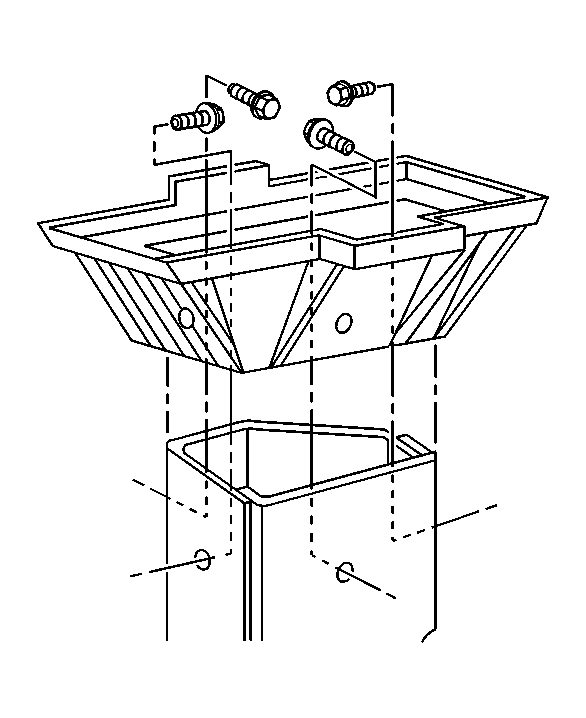

    Fig 1: View Of Battery Tray & Bolts
    GM71275Courtesy of GENERAL MOTORS CORP.
  1. Position the battery tray to the battery support.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolts attaching the tray.

    Tighten:  Tighten the battery tray bolts to 5 N.m (44 lb in).

  3. Install the battery. Refer to Battery Replacement in Engine Electrical.
