Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

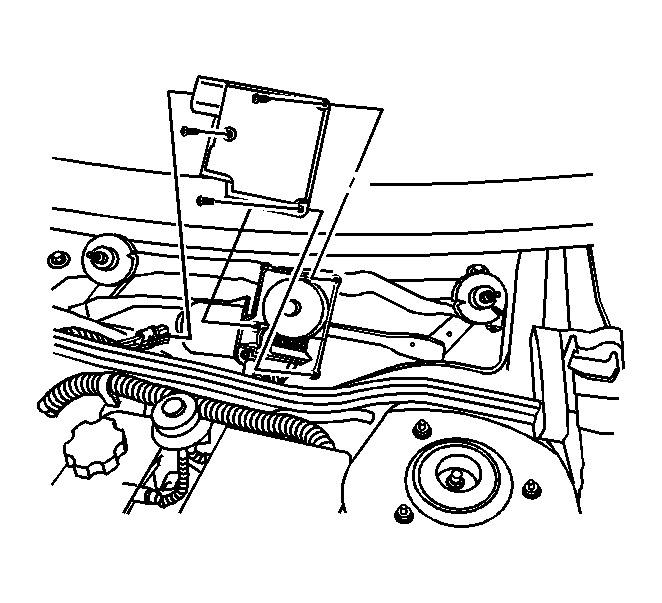

    Fig 1: View Of Wiper Motor Cover, Electrical Connector & Screws
    GM797406Courtesy of GENERAL MOTORS CORP.
  1. Position the wiper motor cover to the wiper motor.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the wiper motor cover screws.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  3. Connect the wiper motor electrical connector.
  4. Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
