OnStar Schematics

WARNING: This page is about a different car, the 2007 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

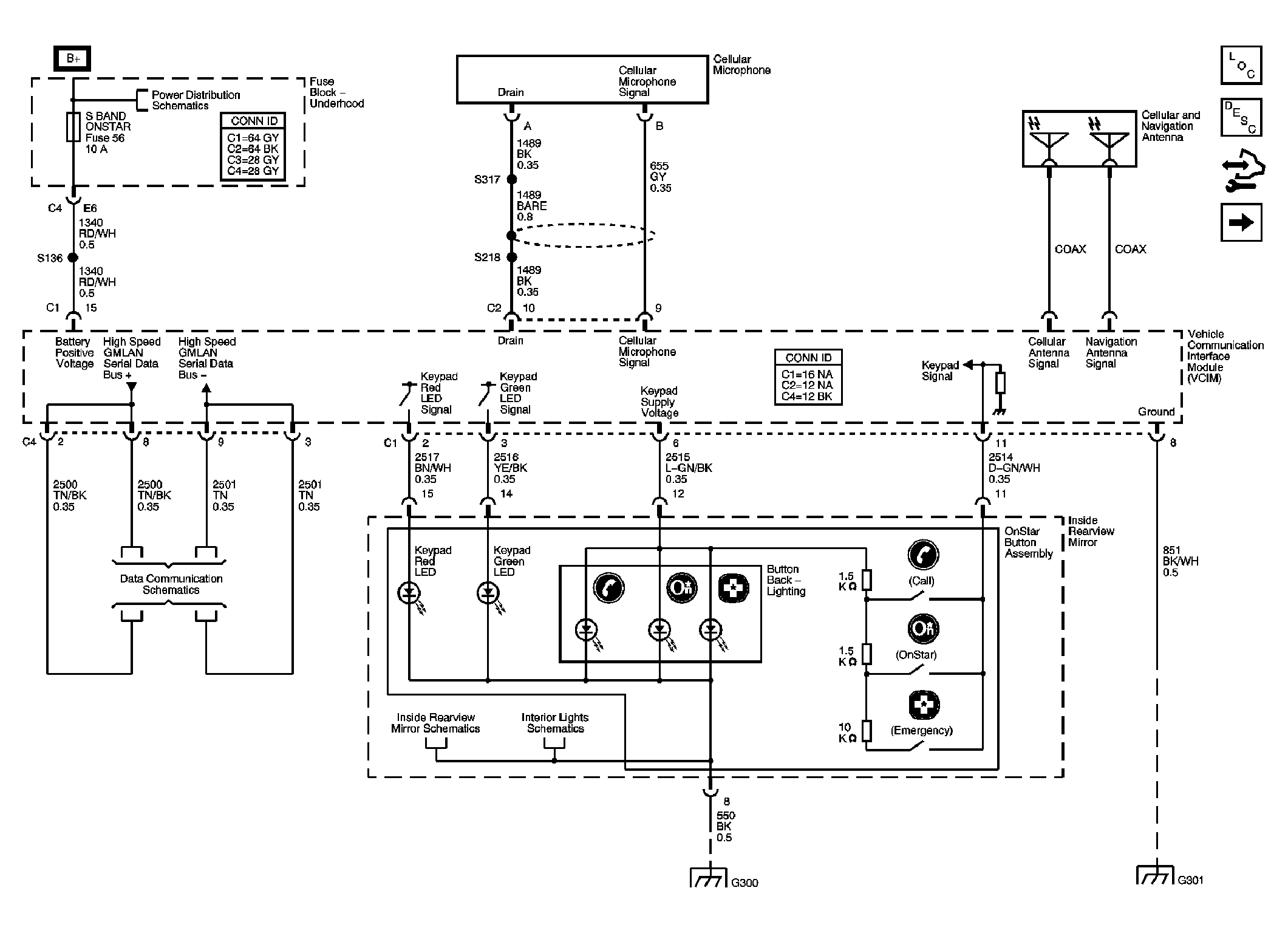

Fig 1: Antenna, DLC, Ground, Inputs, and Power Schematic
GM1830110Courtesy of GENERAL MOTORS CORP.

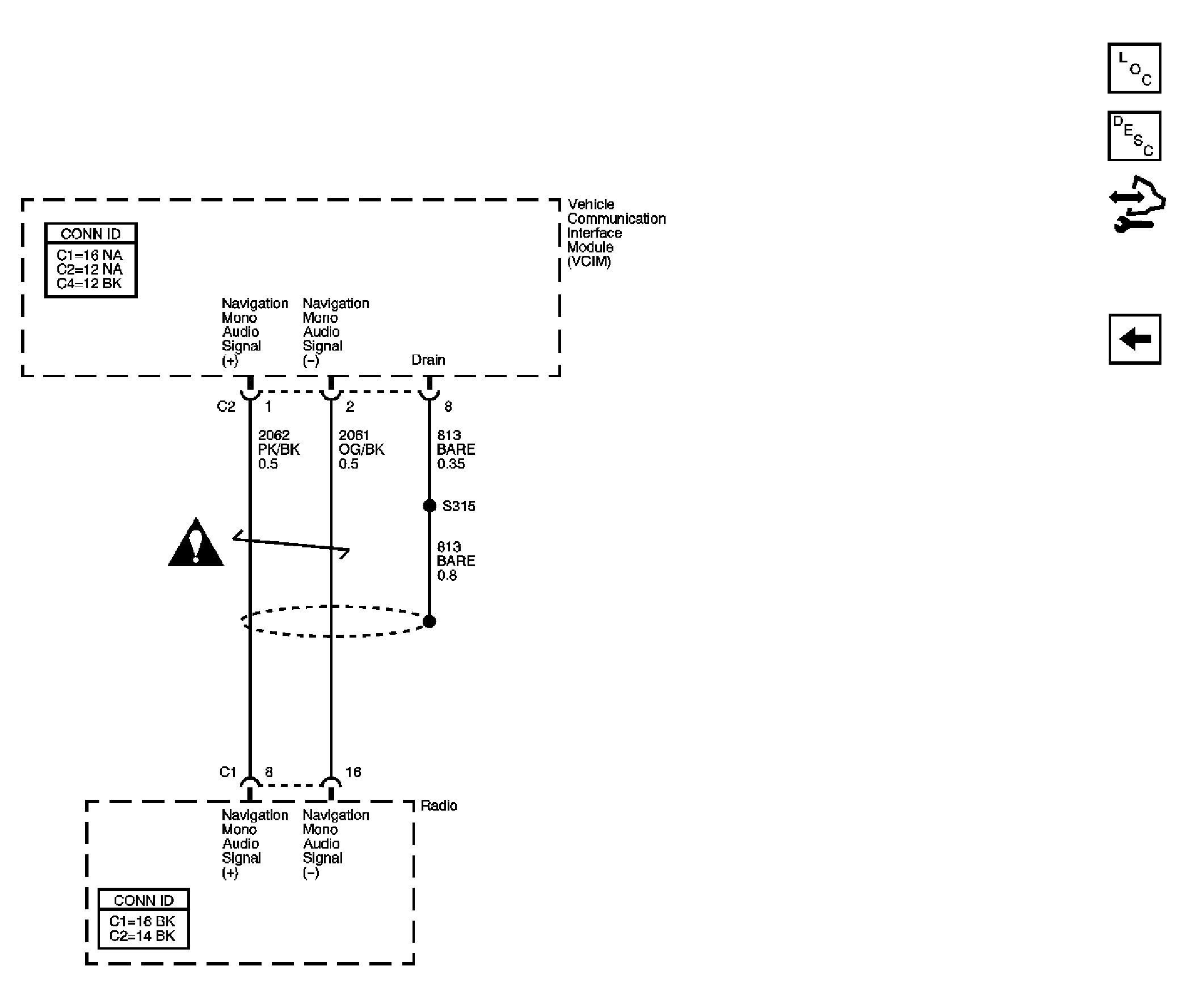

Fig 2: Audio Output Schematic
GM1830115Courtesy of GENERAL MOTORS CORP.
