Fixed Antenna Replacement

WARNING: This page is about a different car, the 2007 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

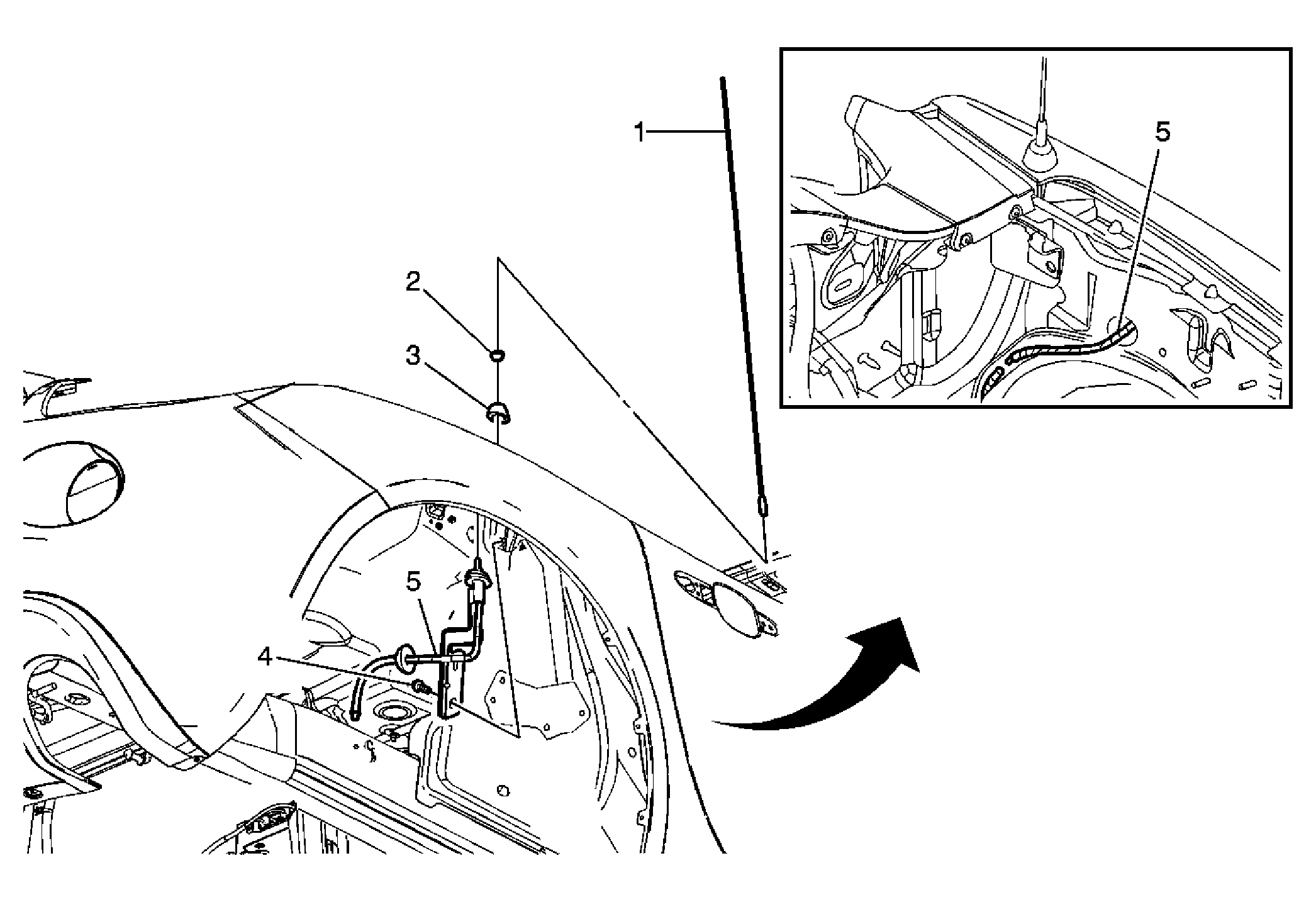

Fig 1: Fixed Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear compartment trim. Refer to Rear Compartment Trim Panel Replacement . Remove the right rear wheelhouse panel. Refer to Rear Wheelhouse Liner Panel Replacement .
1	Antenna Assembly, Radio
2	Nut, Radio Antenna Base NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
3	Cap, Radio Antenna Bracket Stud
4	Bolt, Radio Antenna Tighten: 10 N.m (89 lb in)
5	Bracket Assembly, Radio Antenna
