Digital Radio Receiver Replacement

WARNING: This page is about a different car, the 2007 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

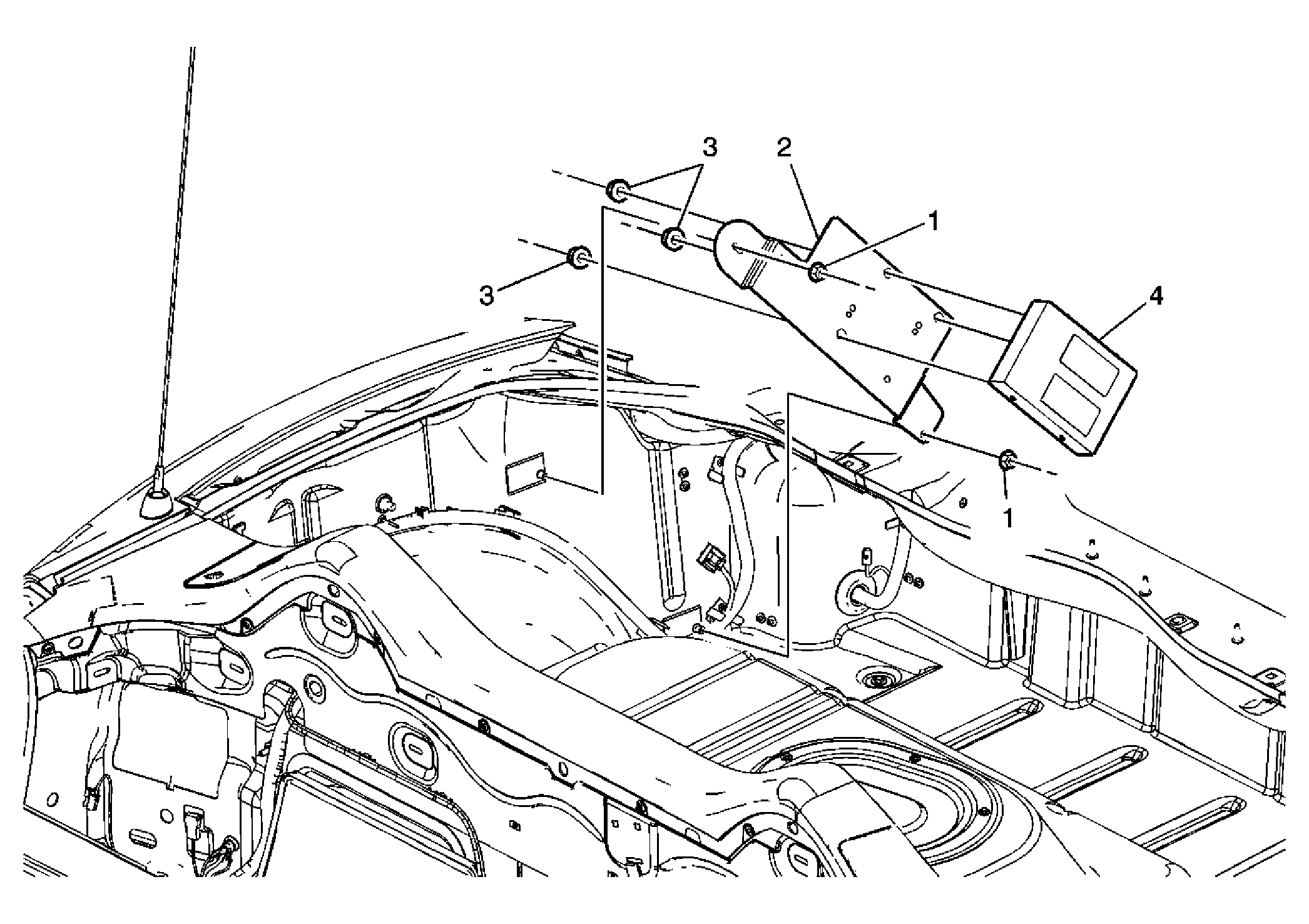

Fig 1: Digital Radio Receiver

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear compartment trim. Refer to Rear Compartment Trim Panel Replacement . Program the digital radio receiver after replacement. Refer to Control Module References .
1	Digital Radio Receiver Bracket Nuts (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Digital Radio Receiver Bracket Assembly
3	Digital Radio Receiver Nuts (Qty: 3) Tighten: 5 N.m (44 lb in)
4	Digital Radio Receiver Assembly
