Digital Radio Antenna Replacement
WARNING: This page is about a different car, the 2007 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

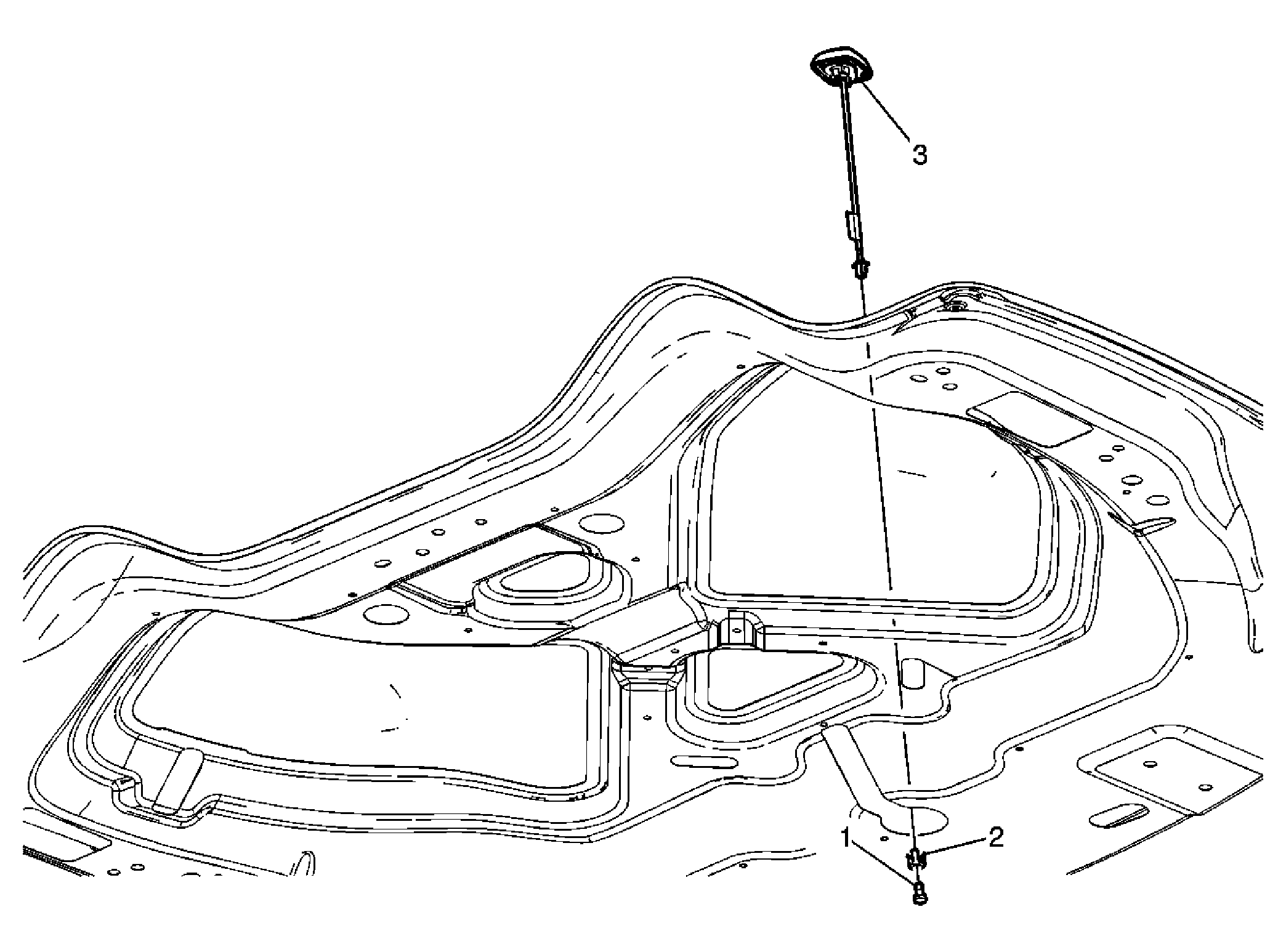

Digital Radio Antenna Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear compartment lid trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement . |
|
| 1 | Bolt, Mobile Telephone and Vehicle Location Antenna
NOTE:
Refer to Fastener Notice
.
Tighten: 9 N.m (80 lb in) |
| 2 | Expansion Sleeve, Mobile Telephone and Vehicle Location Antenna |
| 3 | Antenna and Base Assembly, Mobile Telephone and Vehicle Location |
