Front Floor Console Retainer Replacement

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

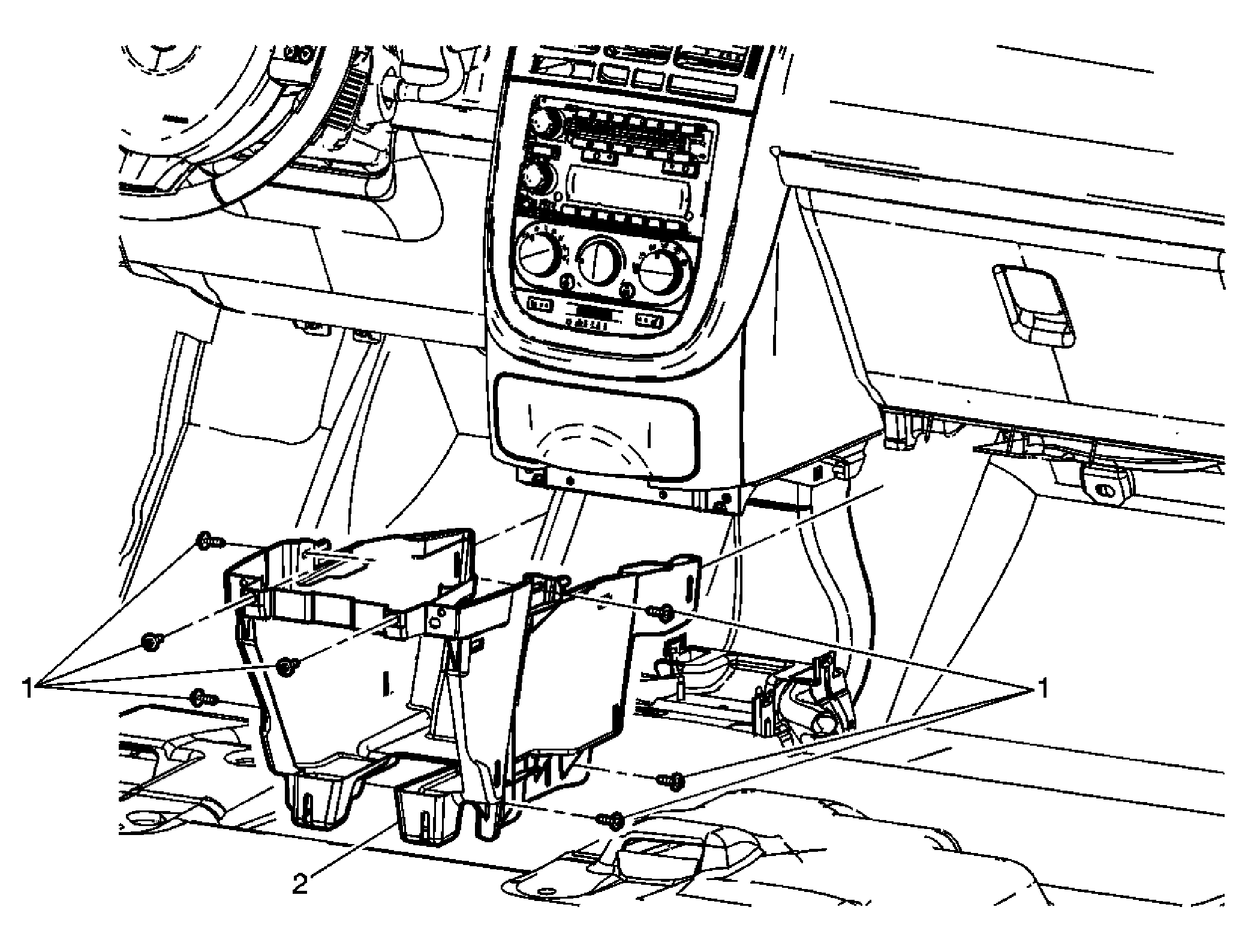

Fig 1: Front Floor Console Retainer
GM1751095Courtesy of GENERAL MOTORS CORP.
Front Floor Console Retainer Replacement

Callout Component Name
Preliminary Procedure:
Remove the front floor console right and left side trim panels. Refer to Front Floor Console Side Trim Panel Replacement - Right Side  and Front Floor Console Side Trim Panel Replacement - Left Side .
1 Front Floor Console Retainer Screws (Qty: 8)
NOTE: Refer to Fastener Notice .

Tighten:  2 N.m (18 lb in)
2 Front Floor Console Retainer Assembly
