Rear Disc Brake Backing Plate Replacement

WARNING: This page is about a different car, the 2007 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

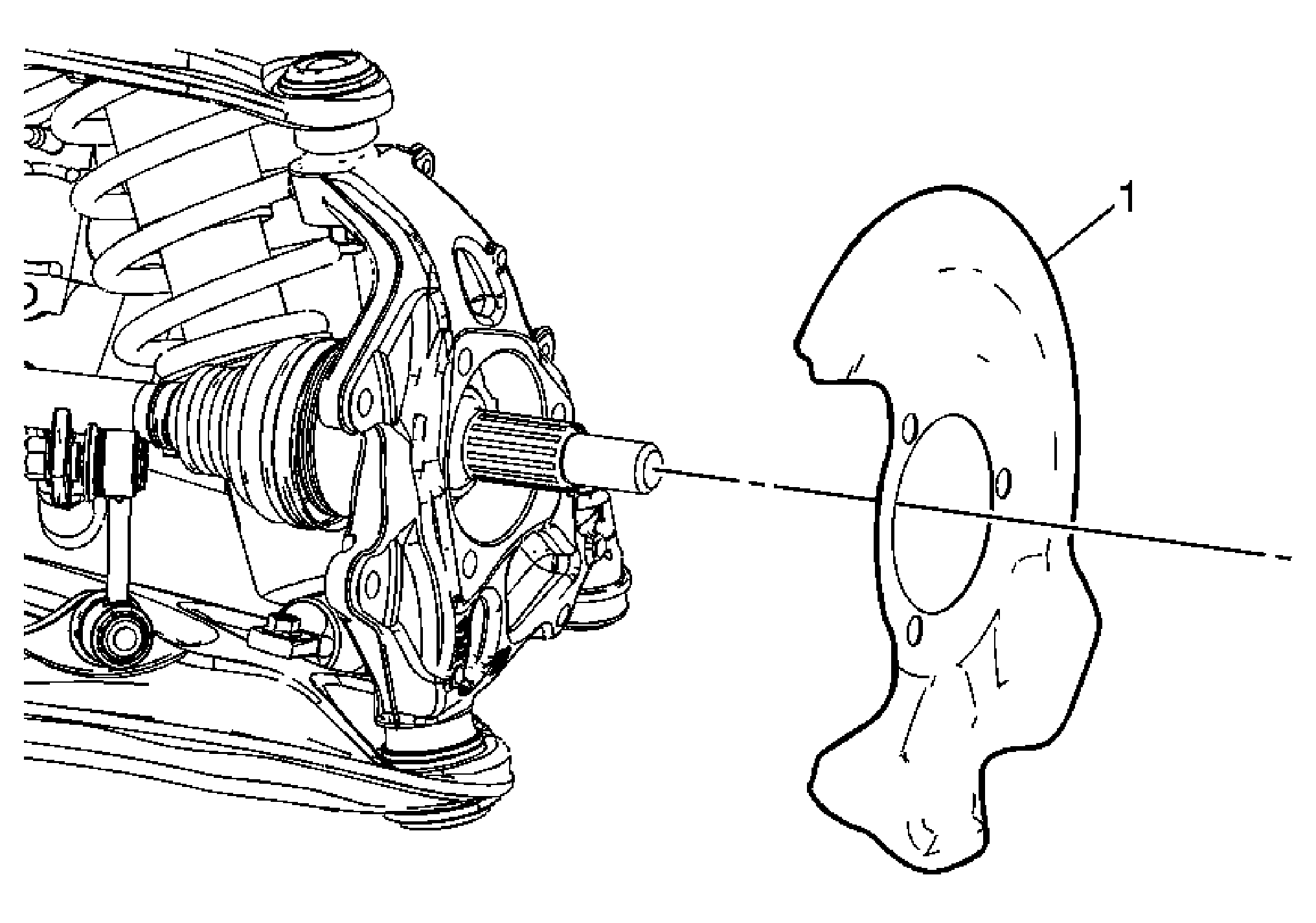

Fig 1: Rear Disc Brake Splash Shield

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation . Remove the wheel hub assembly. Refer to Wheel Bearing/Hub Replacement - Rear .
1	Plate, Rear Disc Brake Backing

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Remove the wheel hub assembly. Refer to Wheel Bearing/Hub Replacement - Rear .

Plate, Rear Disc Brake Backing
