Proportioning Valve Replacement

WARNING: This page is about a different car, the 2007 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

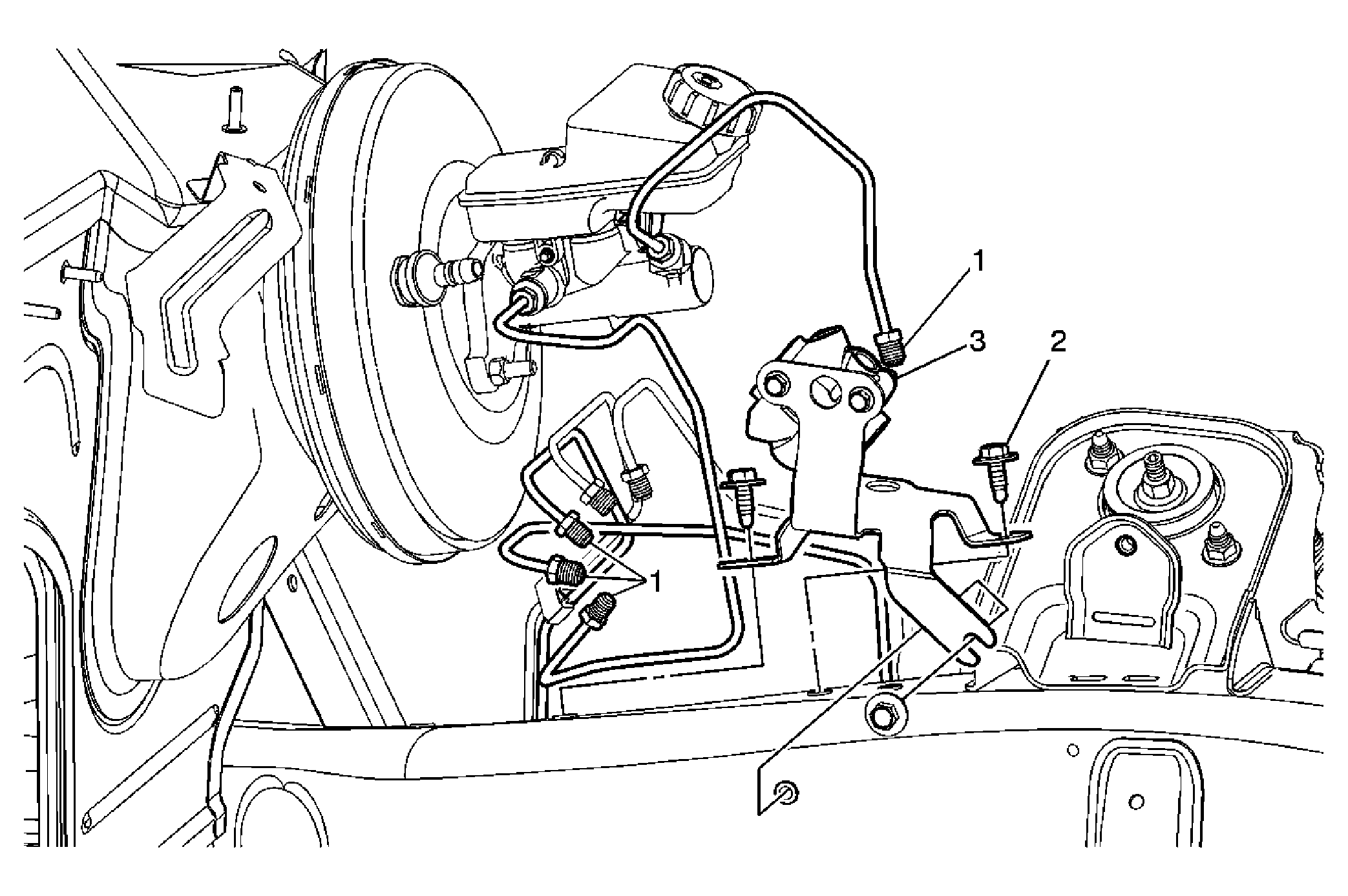

Fig 1: Proportioning Valve

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to Brake Fluid Irritant Caution . NOTE: Refer to Brake Fluid Effects on Paint and Electrical Components Notice .
1	Fitting, Brake Pipe (Qty: 6) NOTE: Refer to Fastener Notice . Tighten: 20 N.m (15 lb ft) Tip: Clean the area around the brake pipes and the proportioning valve of dirt and debris. Note the location and routing of the brake pipes before removal. Cap the brake pipe fittings to prevent fluid loss and contamination.
2	Bolt, Proportioning Valve (Qty: 3) Tighten: 10 N.m (89 lb in)
3	Valve, Proportioning Tip: Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) or Hydraulic Brake System Bleeding (Pressure) .
