Headlamp Replacement

WARNING: This page is about a different car, the 2007 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

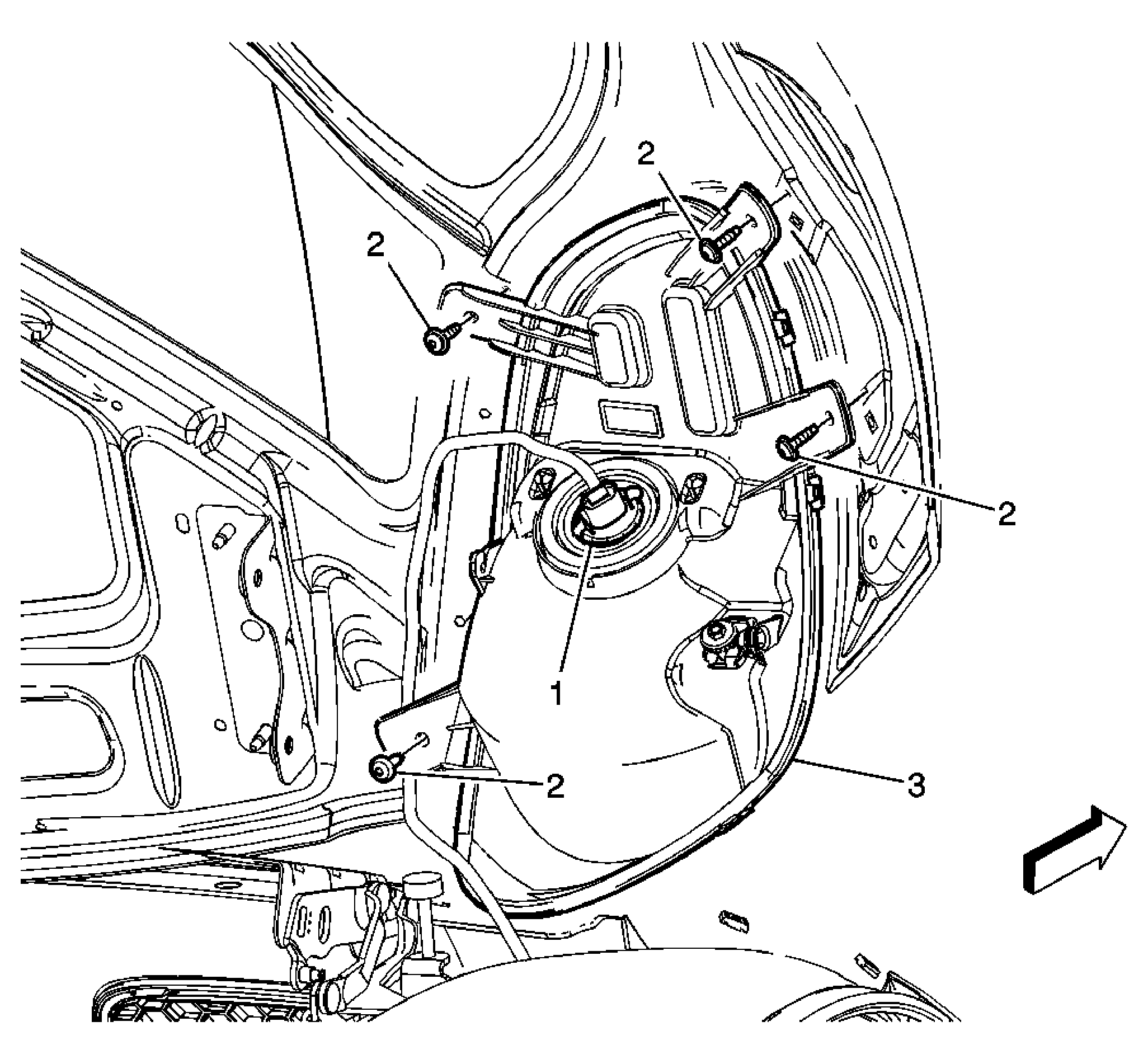

Fig 1: Headlamp

GM1581576

Courtesy of GENERAL MOTORS CORP.

Headlamp Replacement

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Open the hood. Release the connector positive assurance (CPA) connector at the headlamp bulb socket. Disconnect the electrical harness from the left side headlamp prior to removal.
1	Headlamp Assembly Socket Tip: Disengage the bulb socket from the headlamp assembly by rotating one quarter turn counterclockwise.
2	Headlamp Screws (Qty: 4) Tip: Hold the lamp assembly to the hood when removing the screws. Tighten: 8 N.m (71 lb in)
3	Headlamp Assembly Tip: On the left front headlamp assembly, disconnect the electrical harness from the rear of the headlamp composite.
