Backup Lamp Bulb Replacement

WARNING: This page is about a different car, the 2007 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

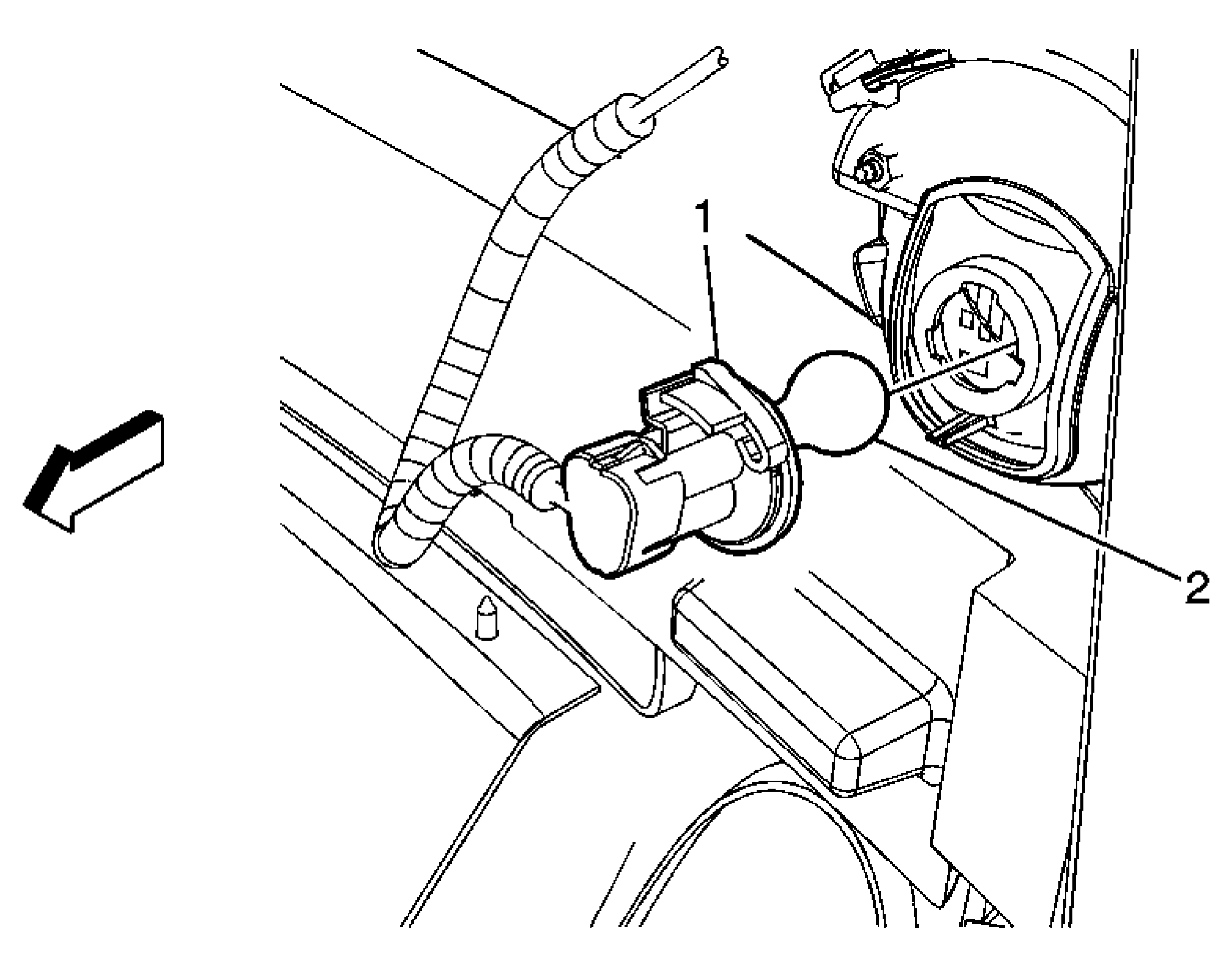

Fig 1: Backup Lamp Bulb
GM1588626Courtesy of GENERAL MOTORS CORP.
Backup Lamp Bulb Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove either the RR or LR wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Base) or Front Wheelhouse Liner Replacement (Turbo) .
1 Main Body Harness Electrical Connector
Tip:  Squeeze the locking tab and turn the socket counterclockwise to remove.
3 Backup and Rear Fog Bulb Assembly
Tip:  Remove the bulb from the electrical socket.
