Removal Procedure

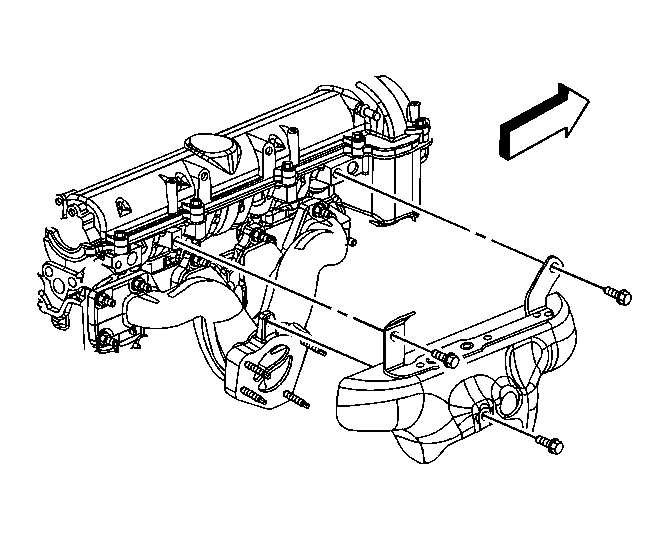

    Fig 1: View Of Exhaust Manifold Heat Shield Bolts
    GM1828137Courtesy of GENERAL MOTORS CORP.
  1. Remove the turbocharger. Refer to Turbocharger Replacement .
  2. Remove the exhaust manifold heat shield bolts.
  3. Remove the heat shield.

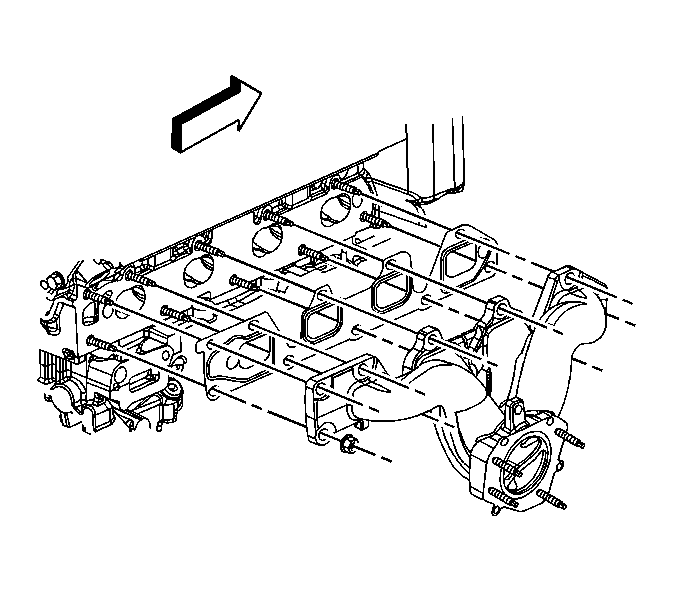

    4. Fig 2: View Of Exhaust Manifold
    GM1828140Courtesy of GENERAL MOTORS CORP.
  4. Remove and discard the exhaust manifold nuts.
  5. Remove the exhaust manifold.
  6. Remove and discard the exhaust manifold gasket.
