Wiper Arm Blade Replacement

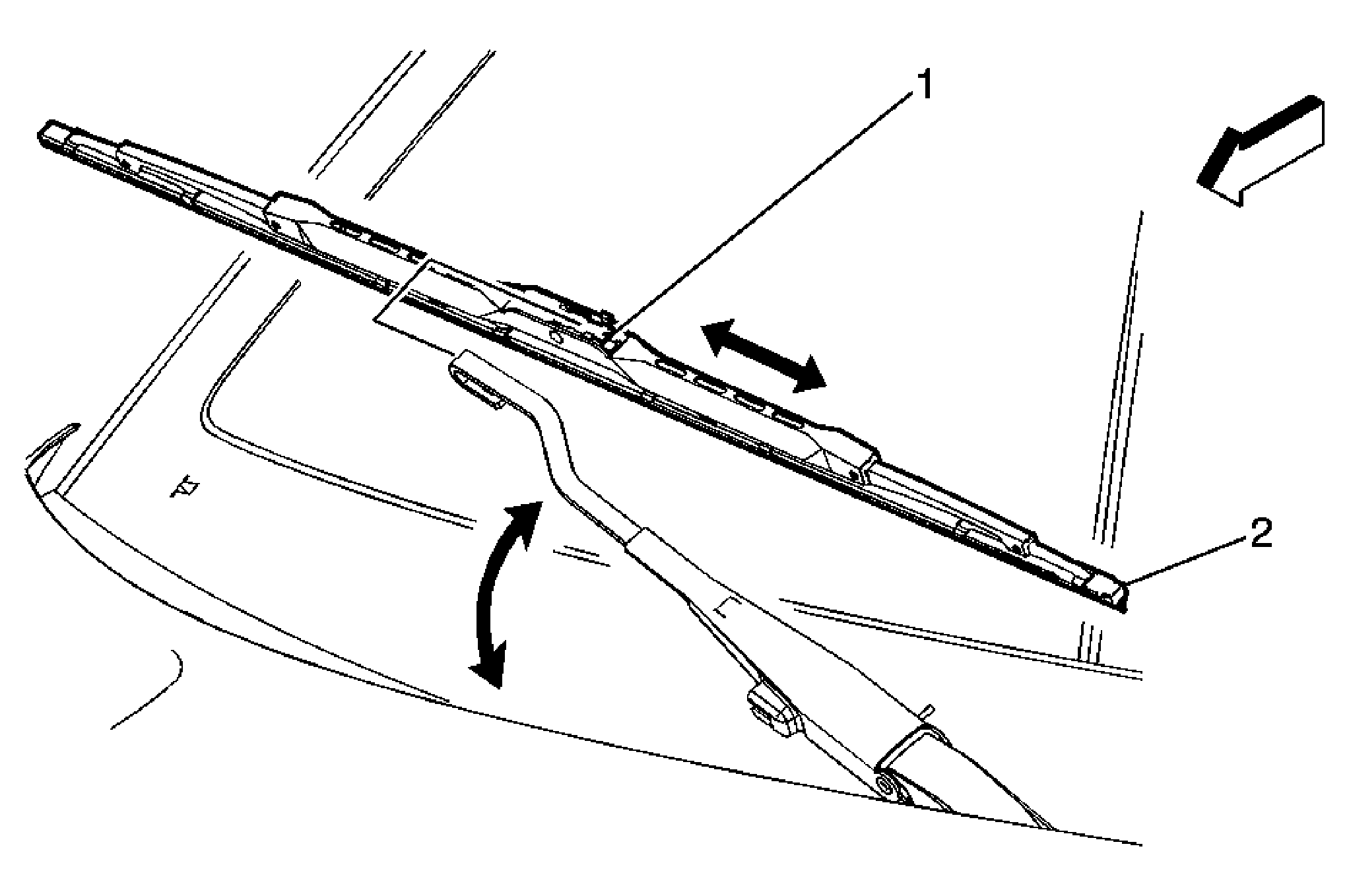

Fig 1: Wiper Arm Blade
GM1581627Courtesy of GENERAL MOTORS CORP.
Wiper Arm Blade Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Lift upward, "service up" the wiper arm from the windshield.
1 Tab, Release
Tip:  From the drivers side of the vehicle, apply downward pressure to the tab and pull wiper blade from the wiper arm hook.
2 Blade Assembly, Windshield Washer
Tip:  There is a right and left windshield washer blade assembly.
