Engine Controls Component Views

Fig 1: Engine Harness Routing 1 of 2 (LNF)
GM1749129Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block-Underhood
2 C162
3 Transmission Control Module (TCM) (M82)
4 Engine Control Module (ECM) Bracket
5 Splice S137
6 Splice S142
8 Splice S120
9 Engine Harness
Fig 2: Engine Harness Routing 2 of 2 (LNF)
GM1749126Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Splice S123
2 Splice S124
3 Engine Harness
4 Splice S121
5 C100
6 Fuse Block - Underhood
7 G103
8 Splice S140
9 Splice S107
10 C101 (M82)
11 Automatic Transmission (M82)
Fig 3: Above the Radiator
GM1749431Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Air Cleaner
2 Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor
Fig 4: Left Side of Engine (LNF)
GM1749428Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Manifold Absolute Pressure (MAP) Sensor
2 Throttle Actuator Control (TAC) Module
3 Starter
4 A/C Compressor
5 Generator
6 Evaporative Emission (EVAP) Canister Purge Solenoid Valve
Fig 5: Left Side of Engine Compartment - LNF
GM1830676Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Pressure Sensor
2 Intake Air Pressure and Temperature Sensor
3 Brake Booster Vacuum Sensor
4 Brake Fluid Level Switch
5 Brake Booster Pump Motor

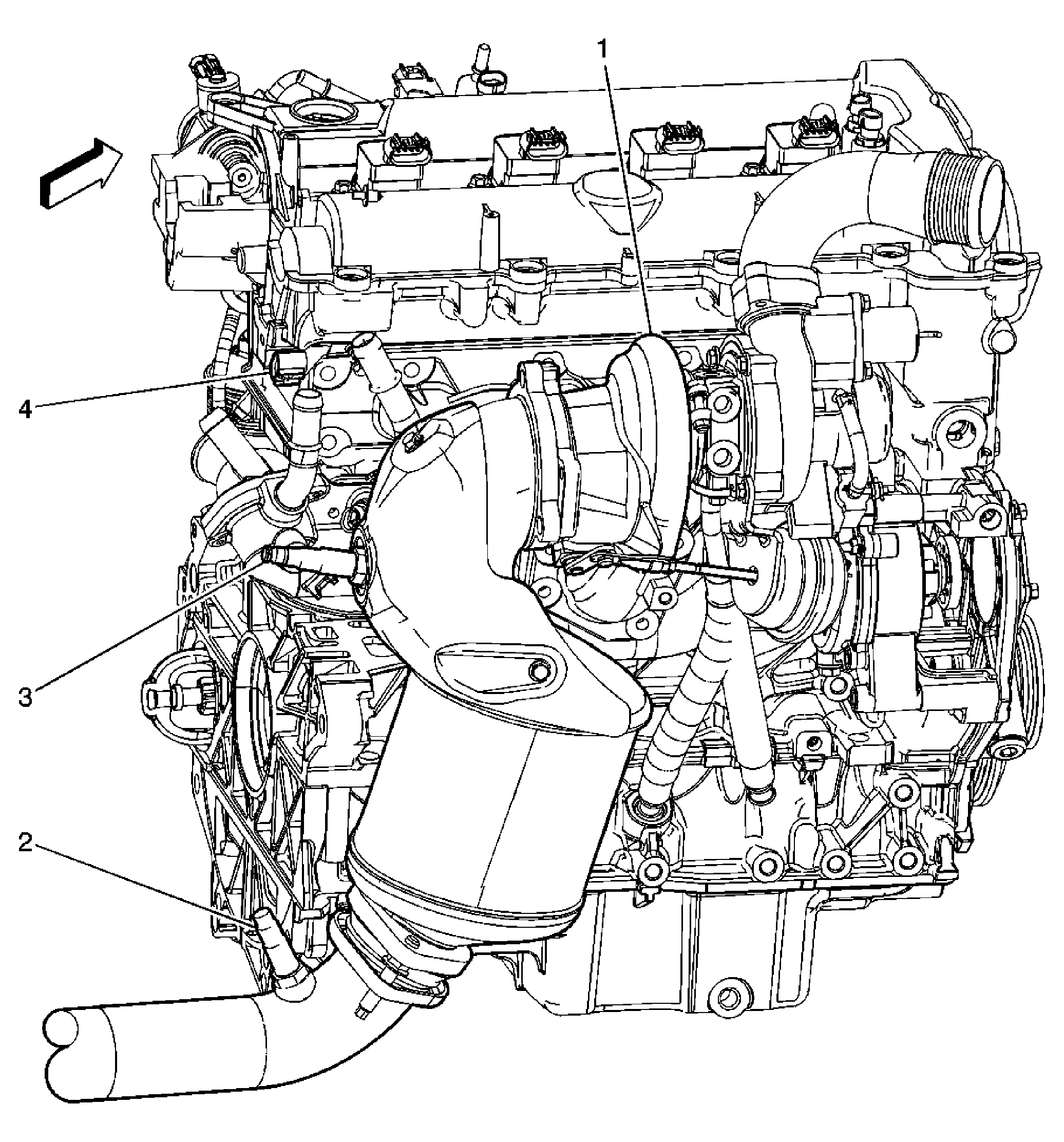

Fig 6: Right Side of Engine (LNF)
GM1749426Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turbocharger
2 Heated Oxygen Sensor (HO2S) 2
3 Heated Oxygen Sensor (HO2S) 1
4 Camshaft Position (CMP) Sensor - Exhaust
Fig 7: Left Side of Engine (LNF)
GM1749429Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Coil 1
2 Ignition Coil 2
3 Ignition Coil 3
4 Ignition Coil 4
5 Camshaft Position (CMP) Sensor - Intake
6 High Pressure Fuel Pump
7 Fuel Injector 1
8 Fuel Injector 2
9 Fuel Injector 3
10 Fuel Injector 4
11 Manifold Absolute Pressure (MAP) Sensor
12 Engine Oil Pressure (EOP) Switch
13 Crankshaft Position (CKP) Sensor
14 Knock Sensor (KS) 2
15 Starter
16 Evaporative Emission (EVAP) Canister Purge Solenoid Valve
17 Knock Sensor (KS) 1
18 Camshaft Position (CMP) Actuator Solenoid-Exhaust
19 Camshaft Position (CMP) Actuator Solenoid-Intake
Fig 8: Lower Left Side of I/P
GM1831798Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Brake Pedal Position Sensor
2 Accelerator Pedal Position (APP) Sensor
3 Data Link Connector (DLC)
4 Data Link Connector (DLC) Resistor
5 Clutch Pedal Position (CPP) Switch
6 Clutch Start Switch
7 C500
8 C501
9 Steering Angle Sensor (JL4)
