Removal Procedure

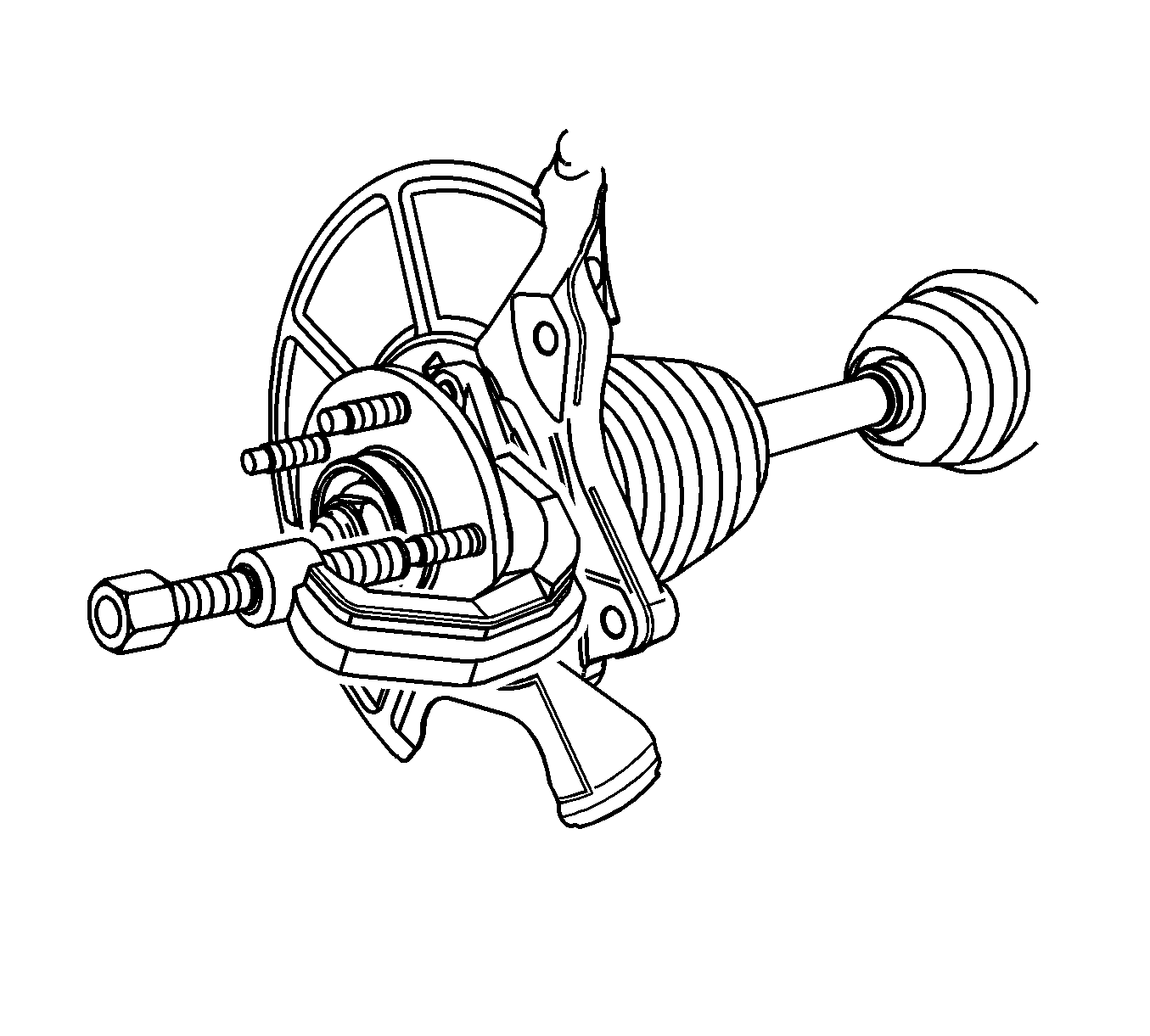

    Fig 1: Removing Wheel Stud - 5-Stud Pattern
    GM1233046Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. Without disconnecting the hydraulic brake flex hose, remove and support the brake caliper and bracket as an assembly, and remove the brake rotor. Refer to Front Brake Rotor Replacement .
  4. Rotate the bearing hub to a position where the least amount of interference between the stud and the steering knuckle exists.
  5. Using the J 43631  , release the wheel stud from the bearing hub and discard the stud. See Special Tools .
