Radio Replacement

WARNING: This page is about a different car, the 2007 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

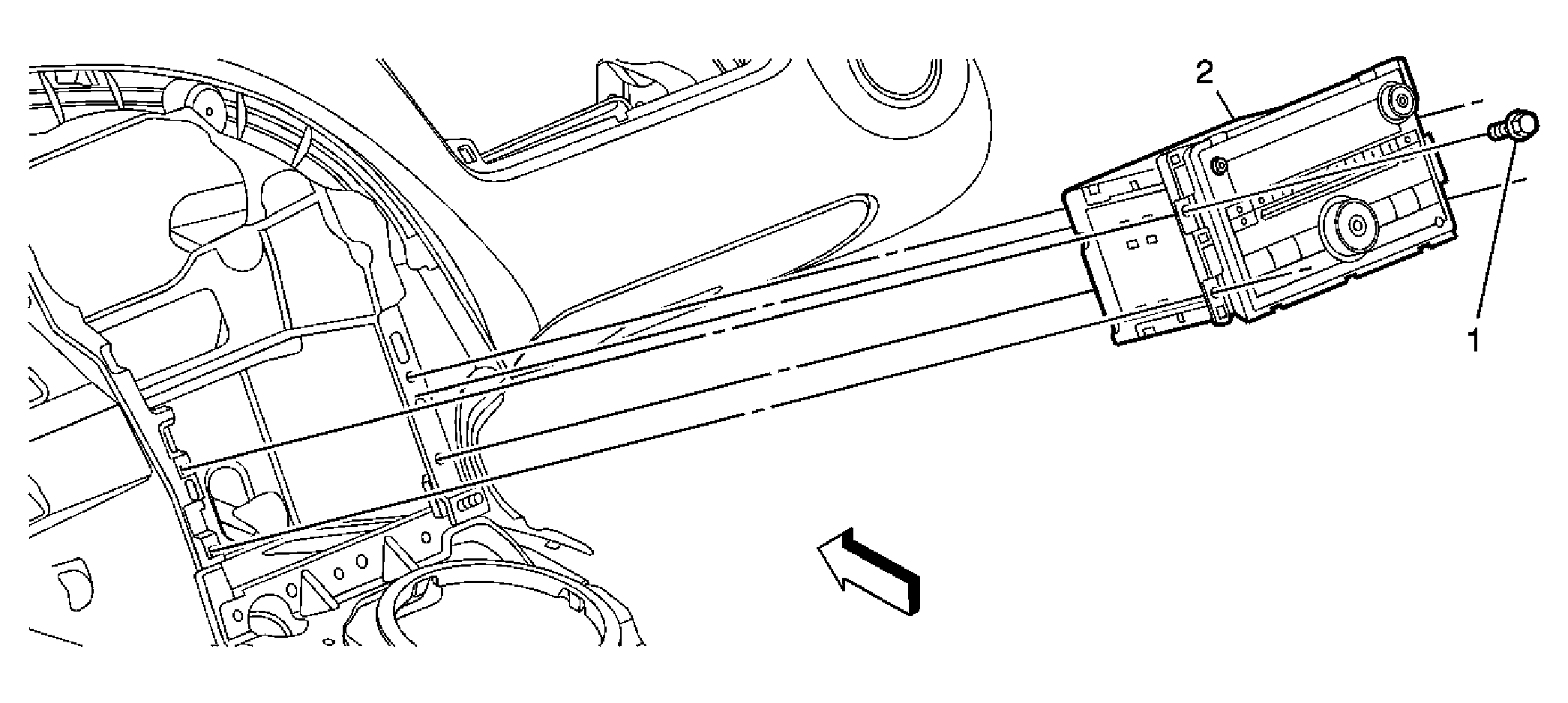

Fig 1: Radio

Courtesy of GENERAL MOTORS CORP.

Radio Replacement

Callout	Component Name
Preliminary Procedures Remove the cluster trim panel. Refer to Instrument Cluster Trim Panel Replacement . Program the radio after replacement. Refer to Control Module References .
1	Bolt/Screw, Radio (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Radio, AM/FM Stereo

Callout

Component Name

Preliminary Procedures

Remove the cluster trim panel. Refer to Instrument Cluster Trim Panel Replacement .
Program the radio after replacement. Refer to Control Module References .

Bolt/Screw, Radio (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 2 N.m (18 lb in)

Radio, AM/FM Stereo
