Mobile Telephone Microphone Replacement

WARNING: This page is about a different car, the 2007 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

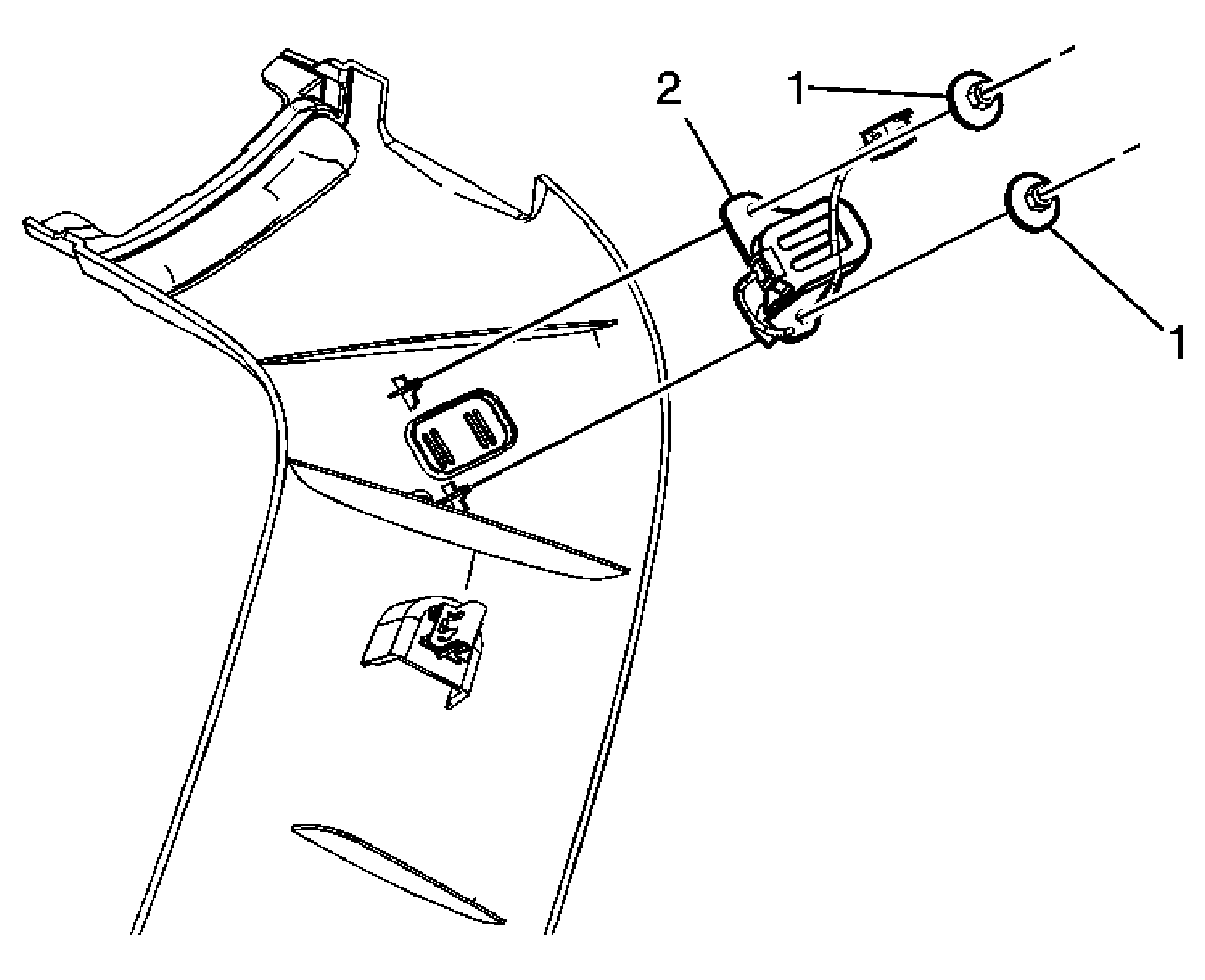

Fig 1: OnStar Microphone Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the driver side windshield garnish molding. Refer to Windshield Pillar Garnish Molding Replacement .
1	Retainer/Clip, Mobile Telephone Microphone NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Microphone Assembly, Mobile Telephone
