Antenna Cable Replacement

WARNING: This page is about a different car, the 2007 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

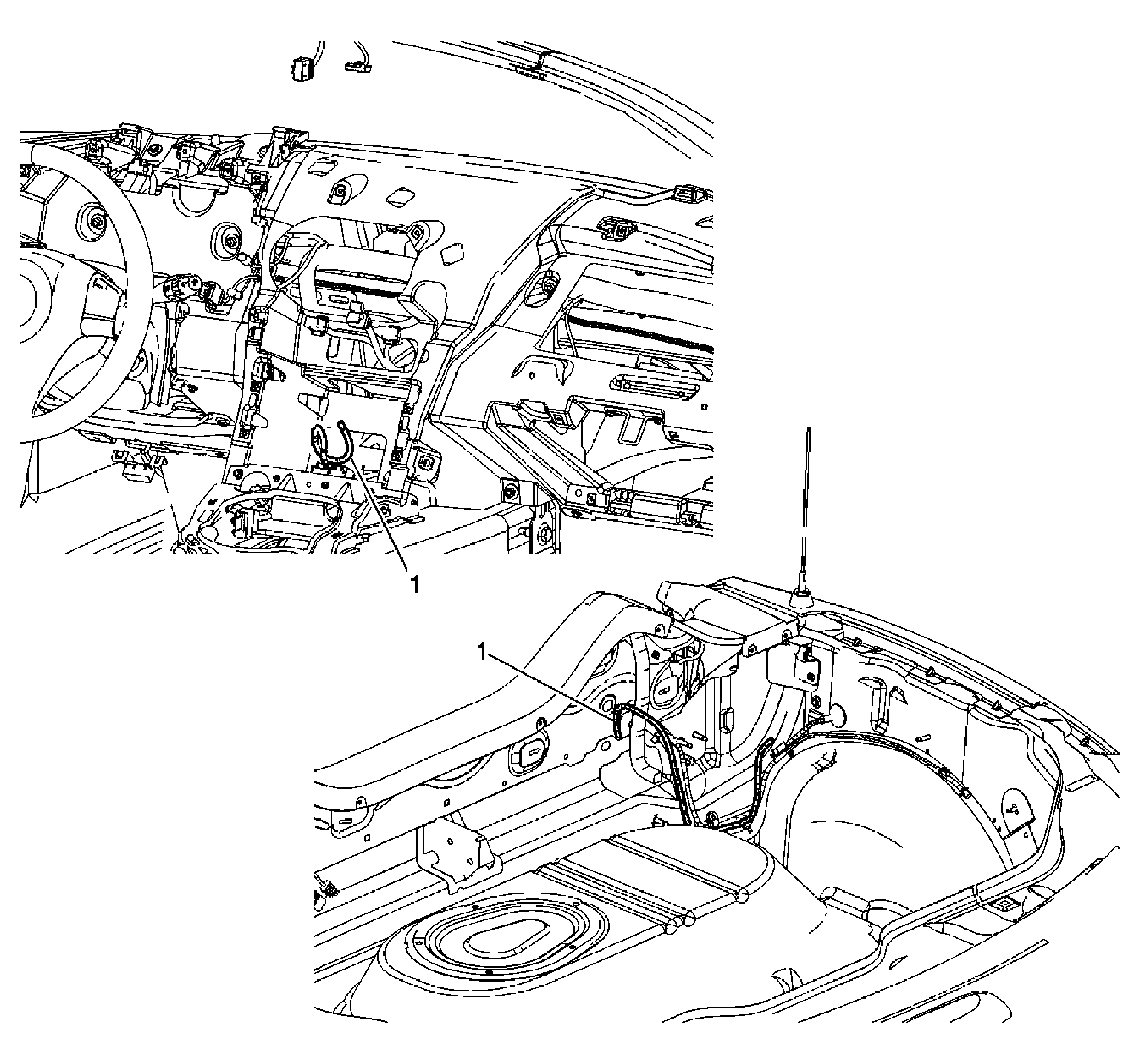

Fig 1: Antenna Cable

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear compartment trim. Refer to Rear Compartment Trim Panel Replacement . Remove the seat back body panel. Refer to Front Seat Back Body Panel Replacement . Remove the passenger side door sill plate. Refer to Door Sill Plate Replacement . Remove the instrument panel trim pad. Refer to Instrument Panel Trim Pad Replacement .
1	Cable Assembly, Radio Antenna Tip: The AM/FM radio antenna cable is part of the body electrical harness. When replacing an AM/FM radio antenna cable, cut both ends of the radio antenna cable. Route the cable next to the body wiring harness and tie/strap the replacement cable to the body wiring harness.

Callout

Component Name

Preliminary Procedure

Remove the rear compartment trim. Refer to Rear Compartment Trim Panel Replacement .
Remove the seat back body panel. Refer to Front Seat Back Body Panel Replacement .
Remove the passenger side door sill plate. Refer to Door Sill Plate Replacement .
Remove the instrument panel trim pad. Refer to Instrument Panel Trim Pad Replacement .

Cable Assembly, Radio Antenna
Tip: The AM/FM radio antenna cable is part of the body electrical harness. When replacing an AM/FM radio antenna cable, cut both ends of the radio antenna cable. Route the cable next to the body wiring harness and tie/strap the replacement cable to the body wiring harness.
