Amplifier Replacement

WARNING: This page is about a different car, the 2007 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

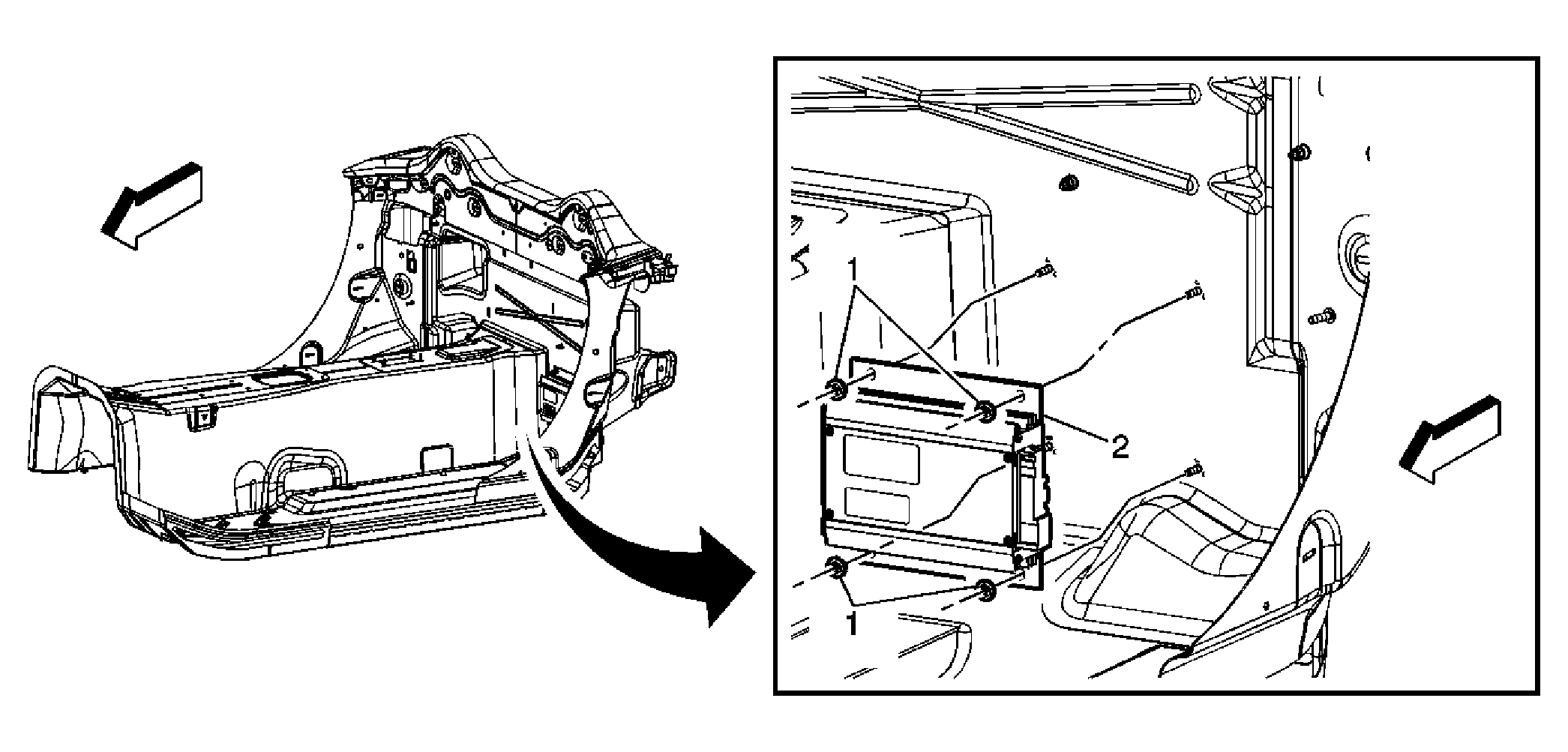

Fig 1: Amplifier

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front seat back body panel. Refer to Front Seat Back Body Panel Replacement . Program the audio amplifier after replacement. Refer to Control Module References .
1	Radio Speaker Amplifier Bolt/Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Radio Speaker Amplifier Assembly

Callout

Component Name

Preliminary Procedures

Remove the front seat back body panel. Refer to Front Seat Back Body Panel Replacement .
Program the audio amplifier after replacement. Refer to Control Module References .

Radio Speaker Amplifier Bolt/Screw (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 9 N.m (80 lb in)

Radio Speaker Amplifier Assembly
