Global Positioning System (GPS) Antenna Replacement

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

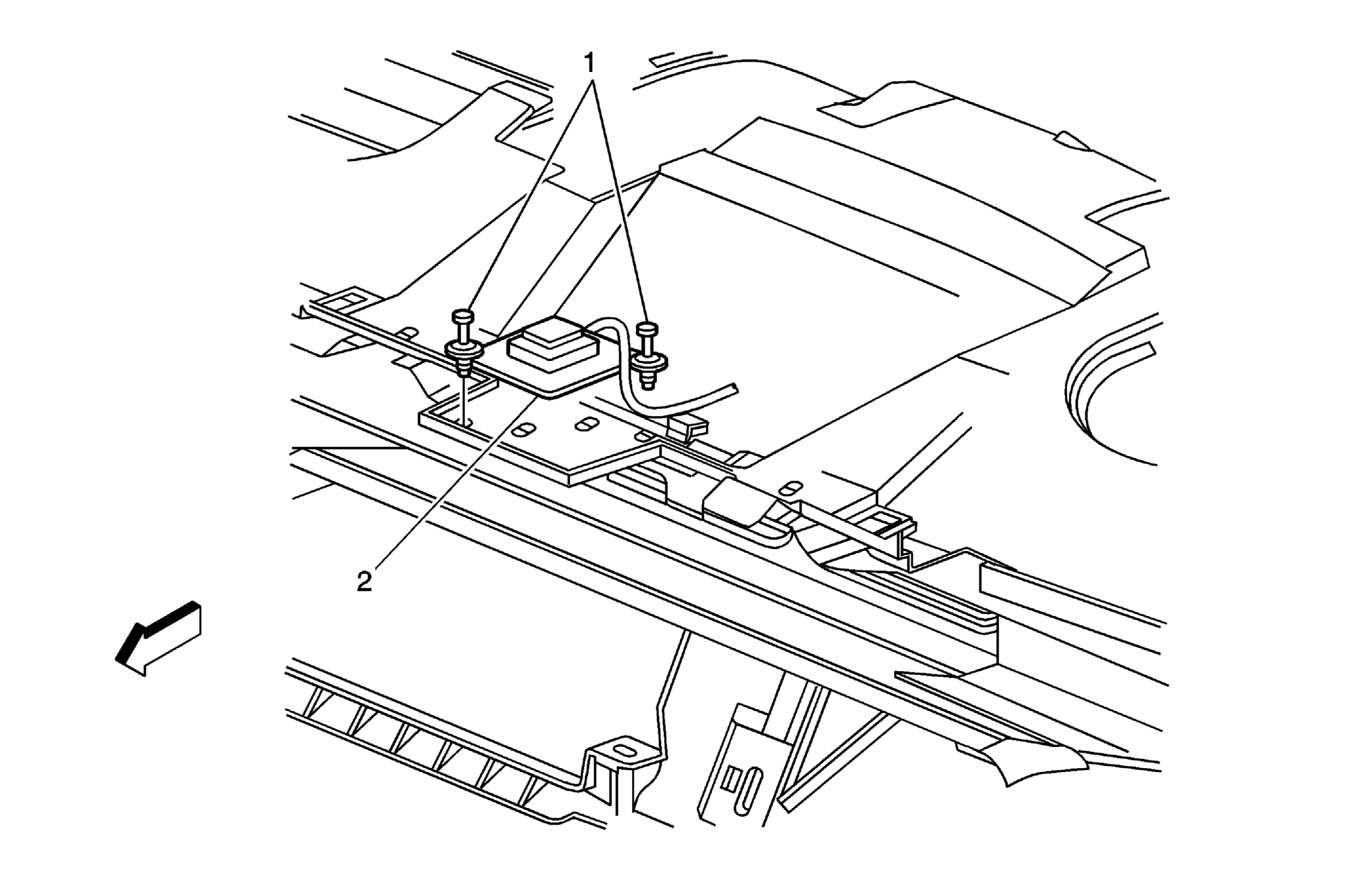

Fig 1: Locating GPS Antenna
GM1725128Courtesy of GENERAL MOTORS CORP.
Global Positioning System (GPS) Antenna Replacement

Callout Component Name
Preliminary Procedure:
Remove the upper IP trim pad.
1 GPS Plastic Push Pin Retainers (Qty: 2)
2 GPS Navigation Antenna
