Radiator Support Bracket Replacement
WARNING: This page is about a different car, the 2007 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.
Radiator Support Bracket Replacement

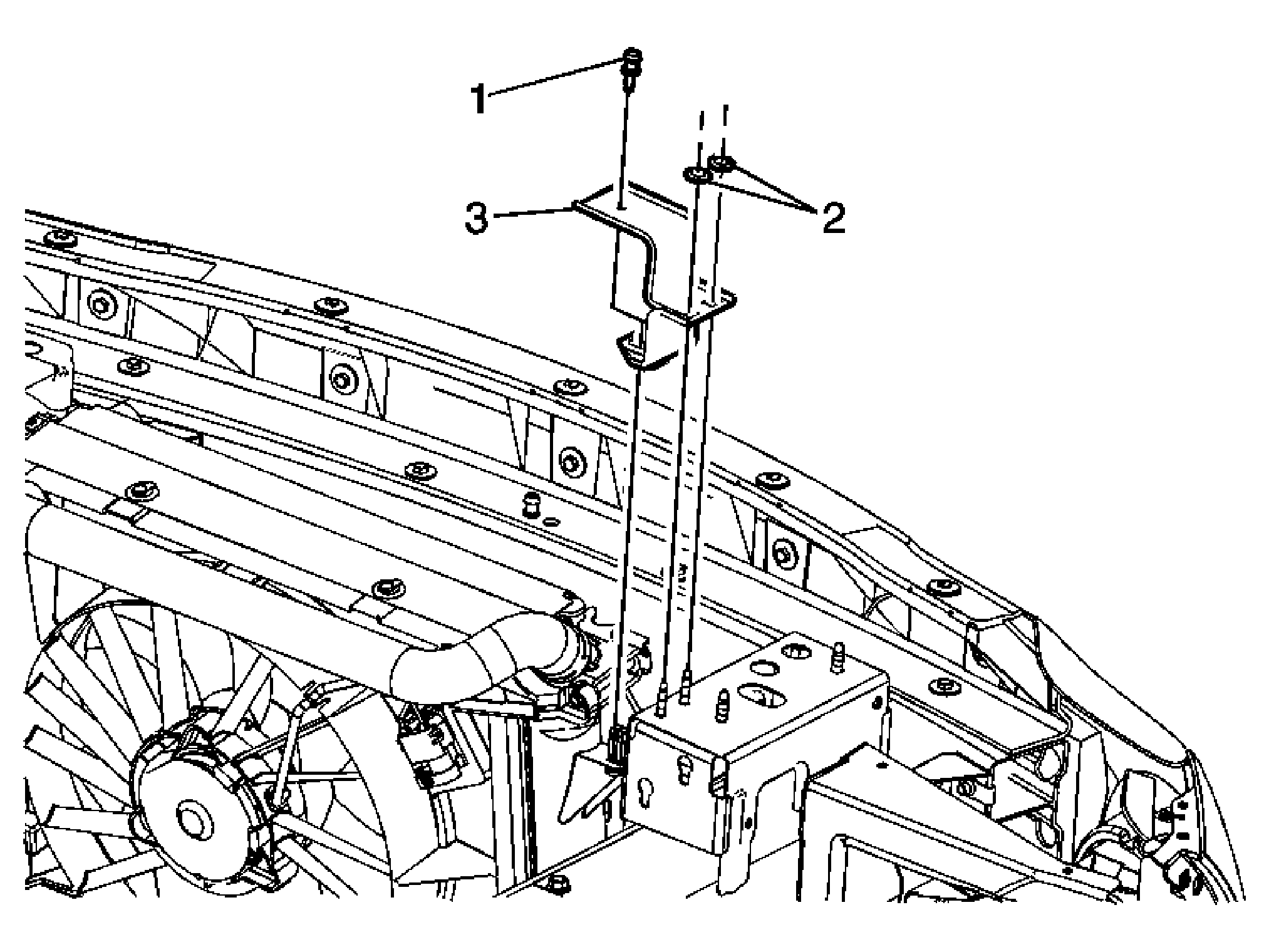

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement
. |
|
| 1 | Stud, Air Cleaner Tighten: 10 N.m (89 lb in) |
| 2 | Nut, Radiator Upper Bracket Tighten: 9 N.m (80 lb in) |
| 3 | Bracket Assembly, Radiator Upper |
