Backup Lamp Replacement
WARNING: This page is about a different car, the 2007 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.
Backup Lamp Replacement

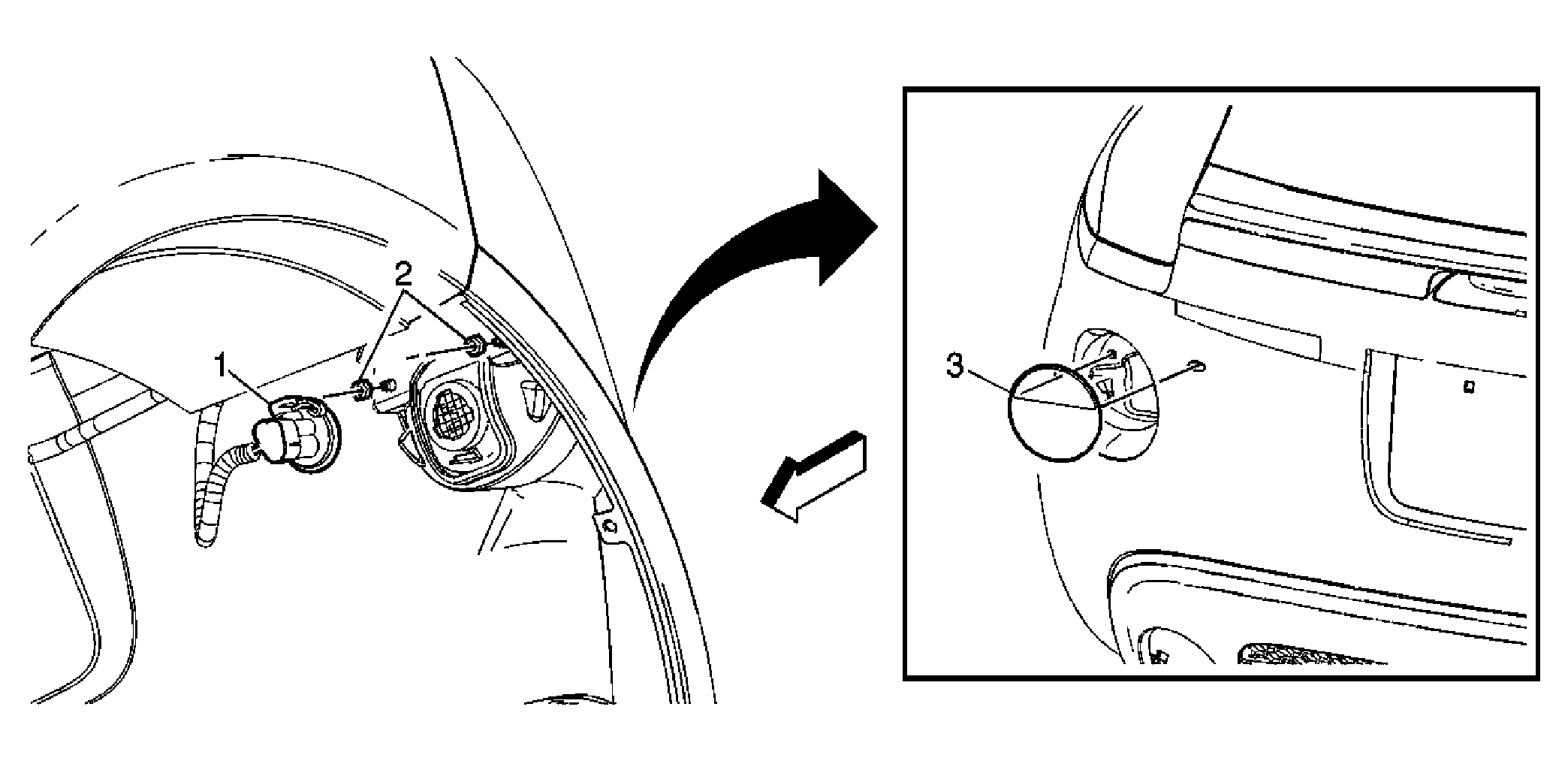

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove either the RR or LR wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Base) or Front Wheelhouse Liner Replacement (Turbo) . |
|
| 1 | Main Body Harness Electrical Connector Tip: Squeeze and turn the socket counterclockwise to remove. |
| 2 | Backup and Rear Fog Lamp Assembly Nuts (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 2.5 N.m (22 lb in) |
| 3 | Backup and Rear Fog Lamp Assembly Tip: Remove the lamp from the exterior side of the rear bumper fascia. |
