OnStar Schematics

WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

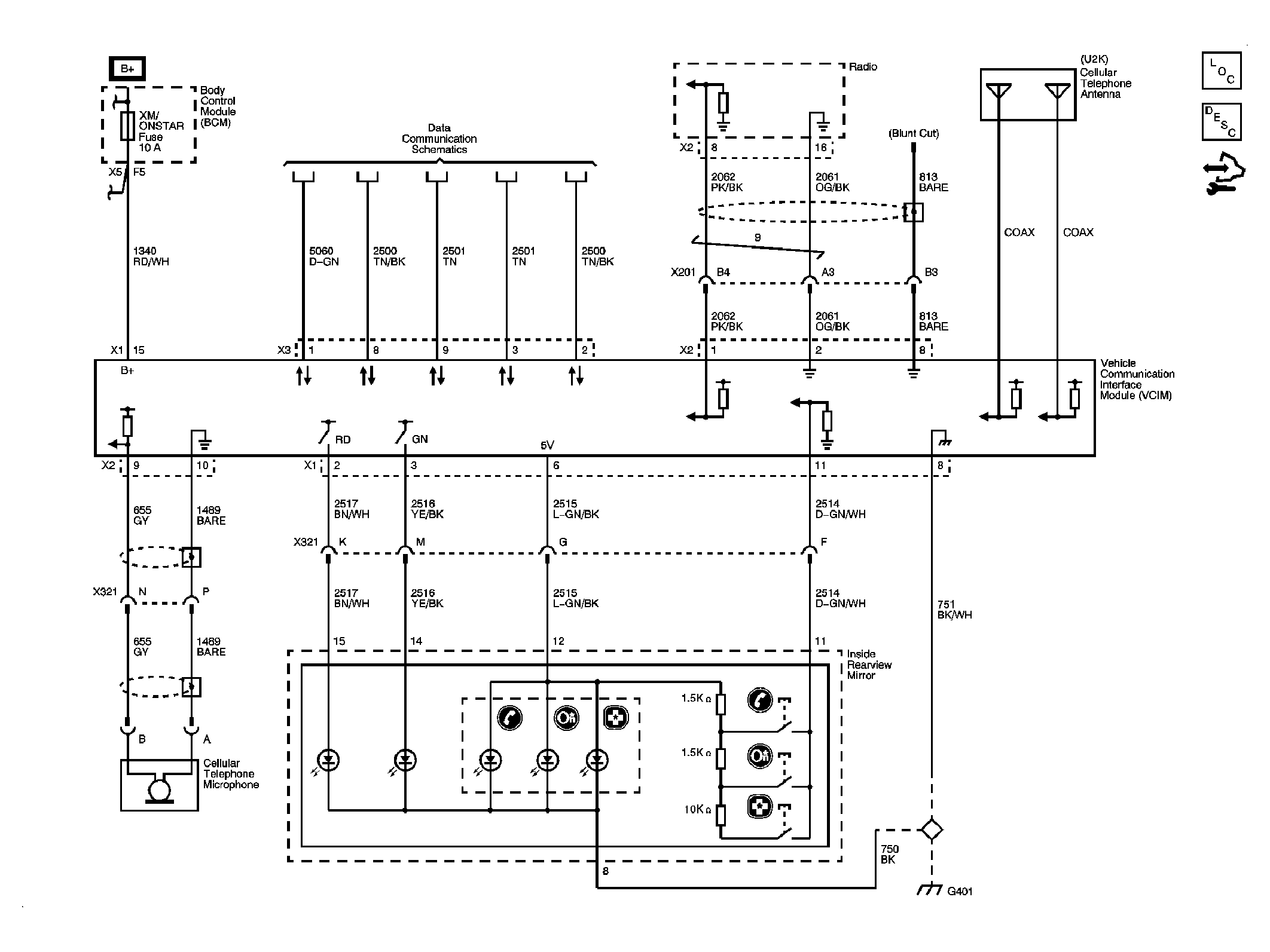

Fig 1: OnStar Schematic
GM1963477Courtesy of GENERAL MOTORS CORP.
