Power Seat Switch Replacement

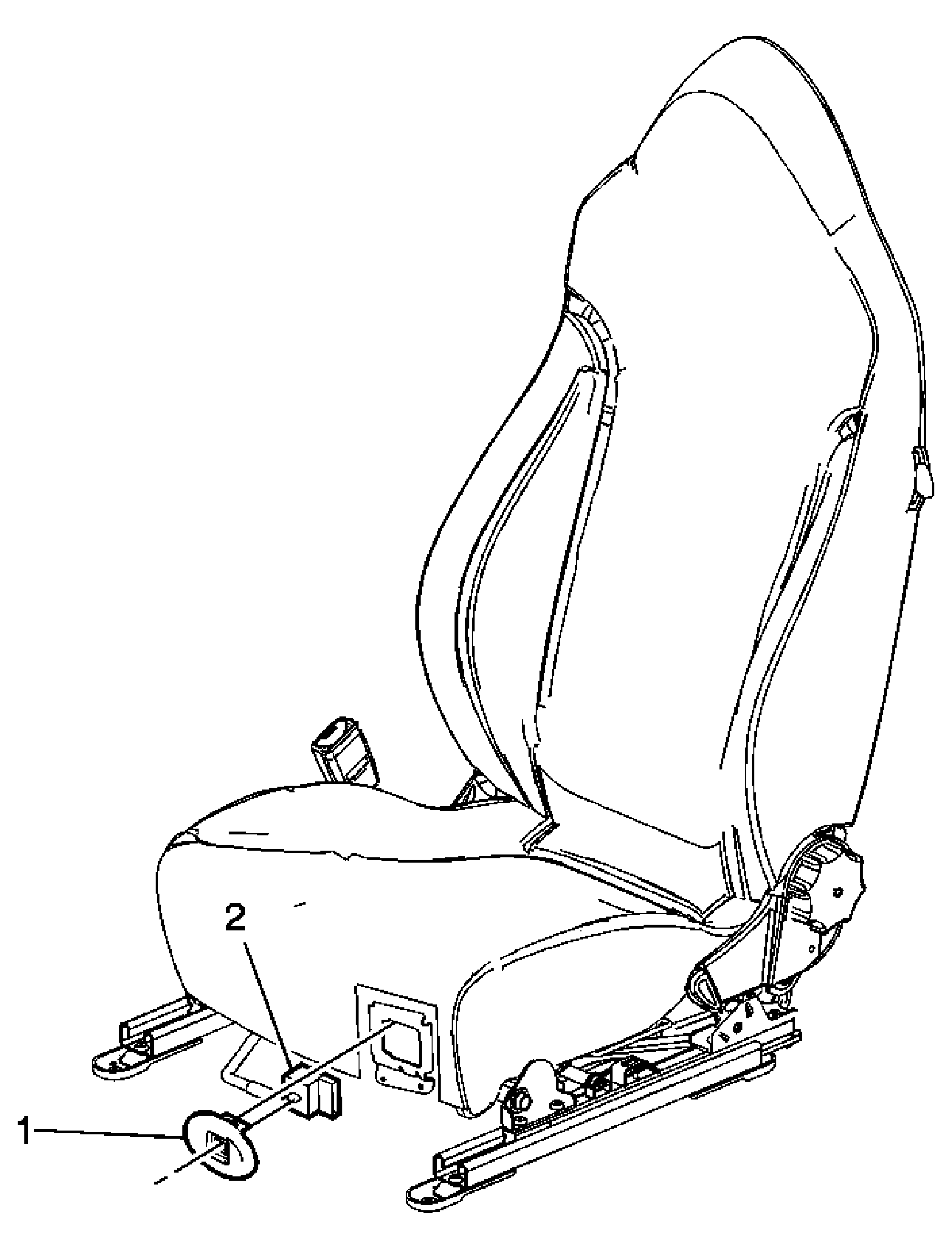

Fig 1: Identifying Power Seat Switch
GM1787709Courtesy of GENERAL MOTORS CORP.
Power Seat Switch Replacement

Callout Component Name
1 Power Seat Switch Bezel Assembly

Procedure

  1. Pull the switch bezel assembly outward from seat cushion to disengage from the switch bracket.
  2. Disconnect the electrical connector.
