Installation Procedure

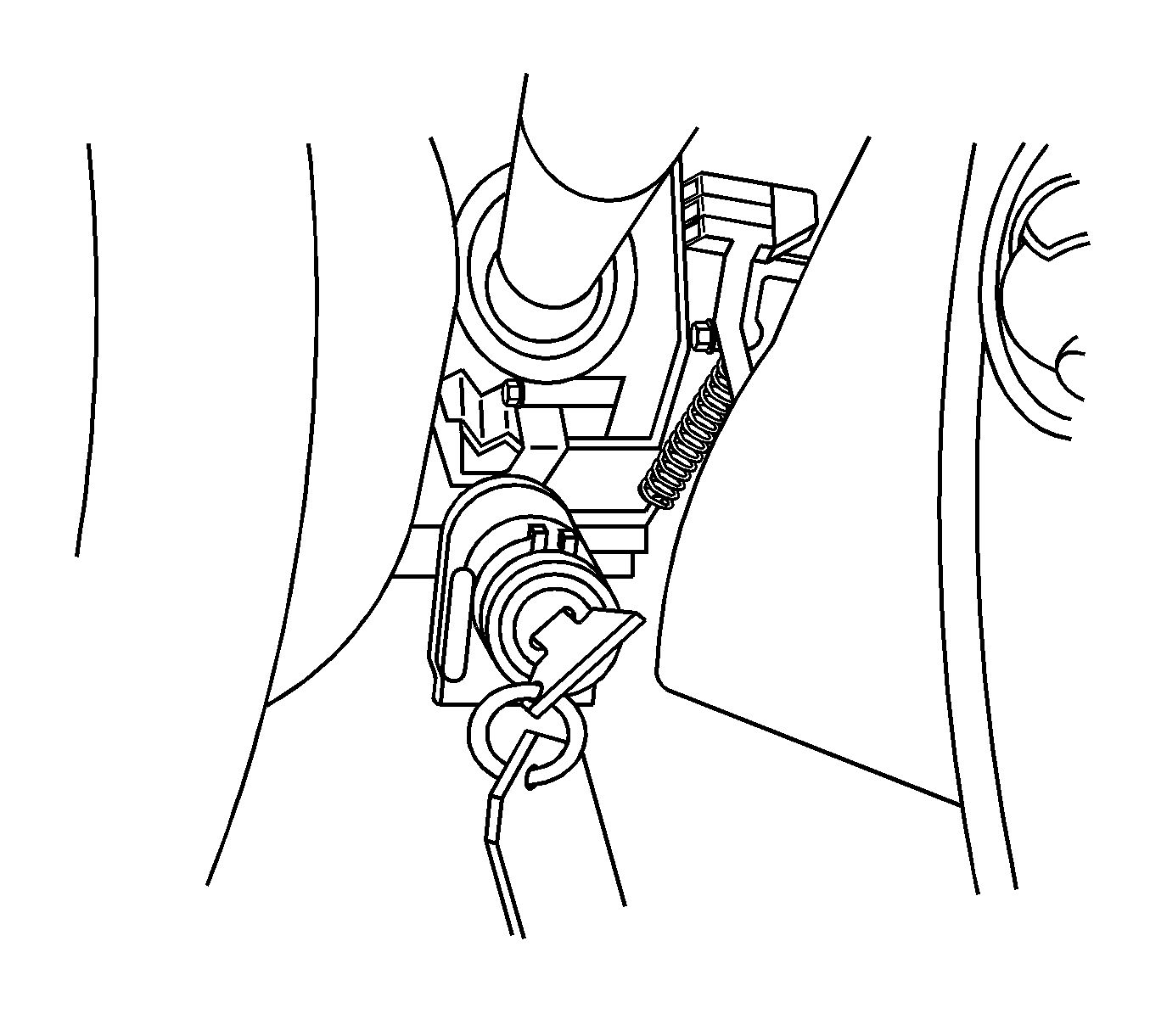

    Fig 1: Turning Ignition Lock Cylinder To RUN Position
    GM874786Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: If you are installing a new lock cylinder, refer to Key and Lock Cylinder Coding .
  1. Position the lock cylinder in the run position. Insert the cylinder into the lock housing.
  2. Rotate the lock cylinder in the housing. Verify proper rotation.
  3. Install the steering column trim covers. Refer to Steering Column Trim Covers Replacement .
  4. Enable the SIR system. Refer to SIR Disabling and Enabling .
  5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
