Engine Coolant Temperature (ECT) Sensor

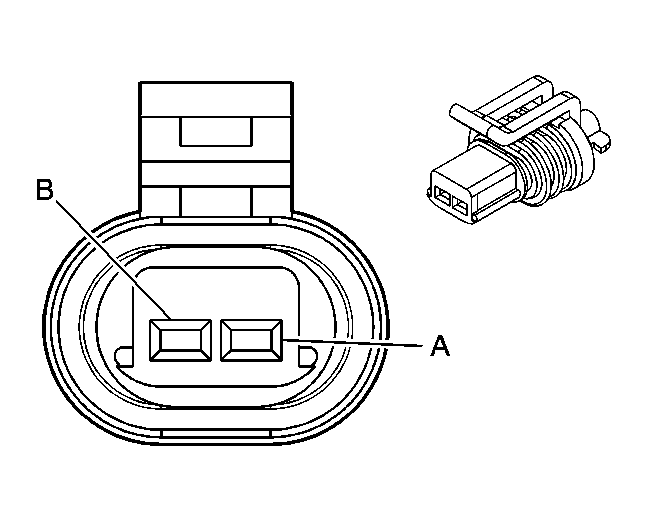

Fig 1: Engine Coolant Temperature (ECT) Sensor Connector End View
GM1401776Courtesy of GENERAL MOTORS CORP.
Engine Coolant Temperature (ECT) Sensor Connector Parts Information

Connector Part Information
  • OEM: 15336024
  • Service: 88987978
  • Description: 2-Way F GT 150 Series Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 12191819/8
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
Engine Coolant Temperature (ECT) Sensor Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 TN 2761 Low Reference
2 YE 410 ECT Sensor Signal
