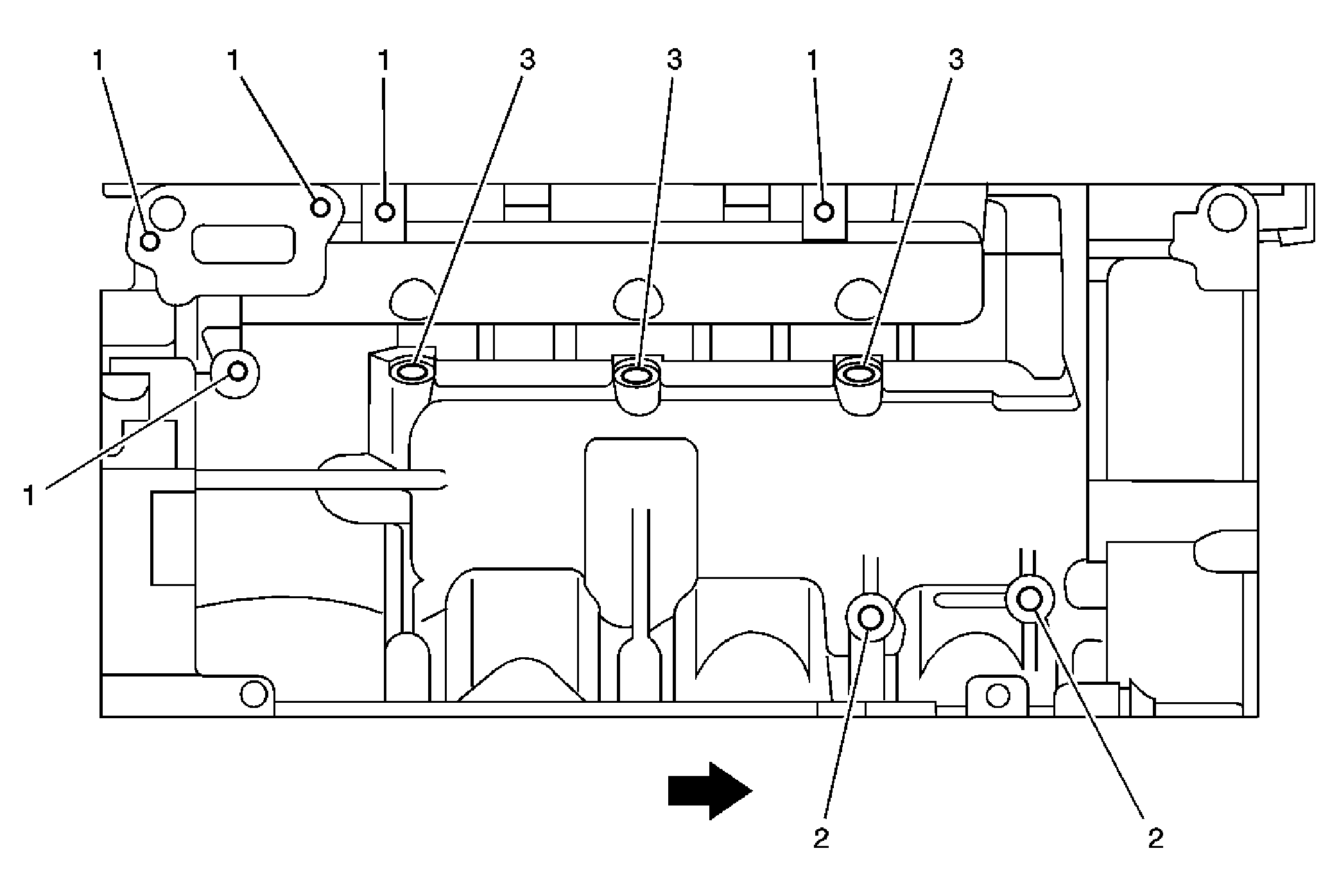

Engine Block - Left Side View
Engine Block - Left Side View
| Service Call Out | Thread Size | Insert | Drill | Counterbore Tool | Tap | Driver | Drill Depth (Maximum) | Tap Depth (Maximum) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| J 42385-850 | MM | (IN) | MM | (IN) | ||||||
| 1 | M6 x 1 | 205 | 201 | 202 | 203 | 204 | 20.5 | 0.807 | 16 | 0.63 |
| 2 | M10 x 1.5 | 215 | 211 | 212 | 213 | 214 | 23.5 | 0.925 | 18.5 | 0.73 |
| 3 | M12 x 1.75 | 865 | 856 | 857 | 858 | 859 | 19.5 | 0.768 | 12.5 | 0.49 |
