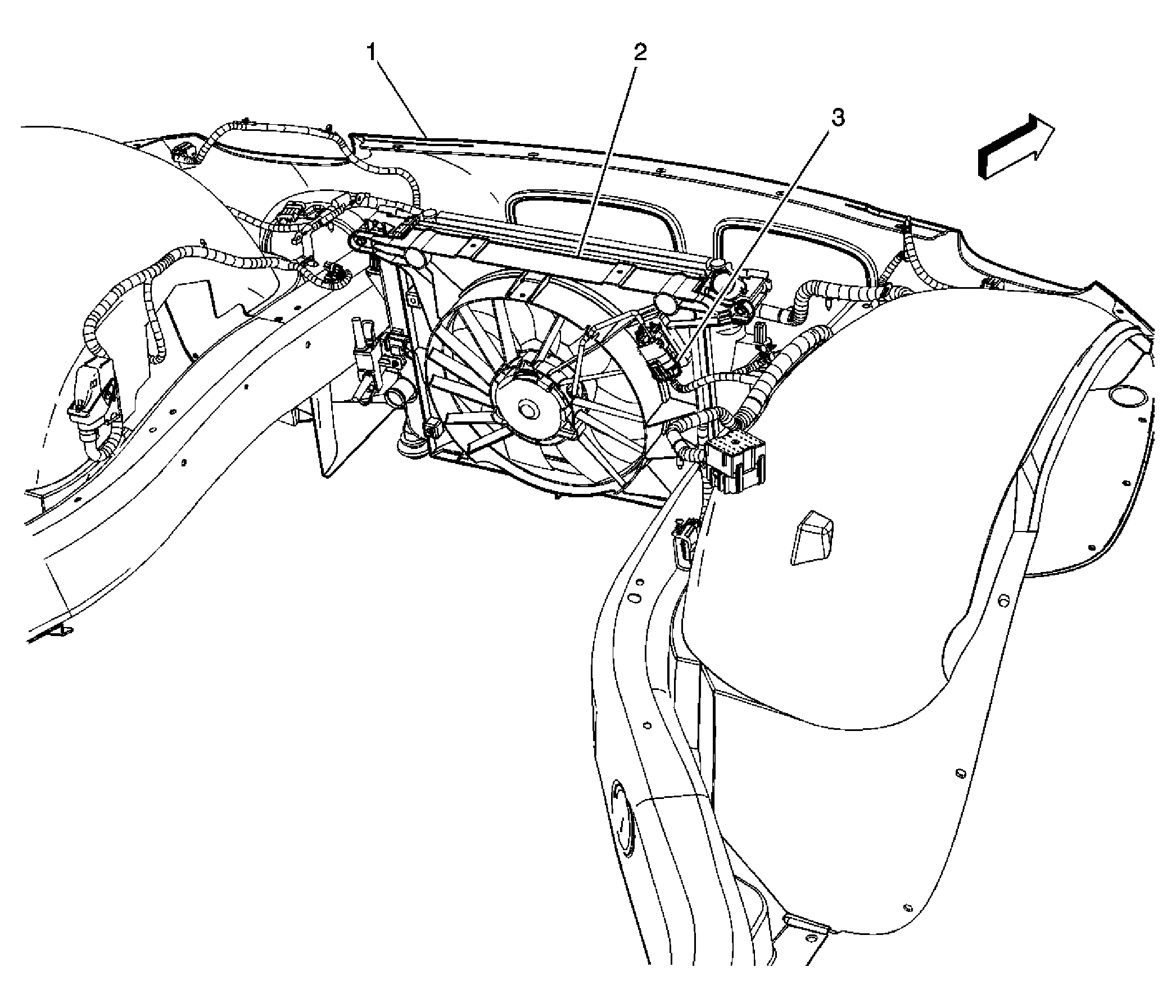

Cooling System Component Views
| Callout | Component Name |
|---|---|
| 1 | Front Fascia |
| 2 | Engine Cooling Fan |
| 3 | Engine Cooling Fan Connector |
| Callout | Component Name |
|---|---|
| 1 | Windshield Wiper Motor and Module |
| 2 | Coolant Surge Tank |
| 3 | Engine Control Module (ECM) Connectors |
| 4 | Engine Control Module (ECM) |
| 5 | Transmission Control Module (TCM) (M82) |
| 6 | Transmission Control Module (TCM) Connector (M82) |
| 7 | Windshield Washer Fluid Pump |
| 8 | Windshield Washer Fluid Container |
| 9 | Engine Coolant Level Switch |
| 10 | Coolant Surge Tank |
| 11 | Brake Fluid Level Switch |
| 12 | Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor |
