Body Control Module/Junction Block

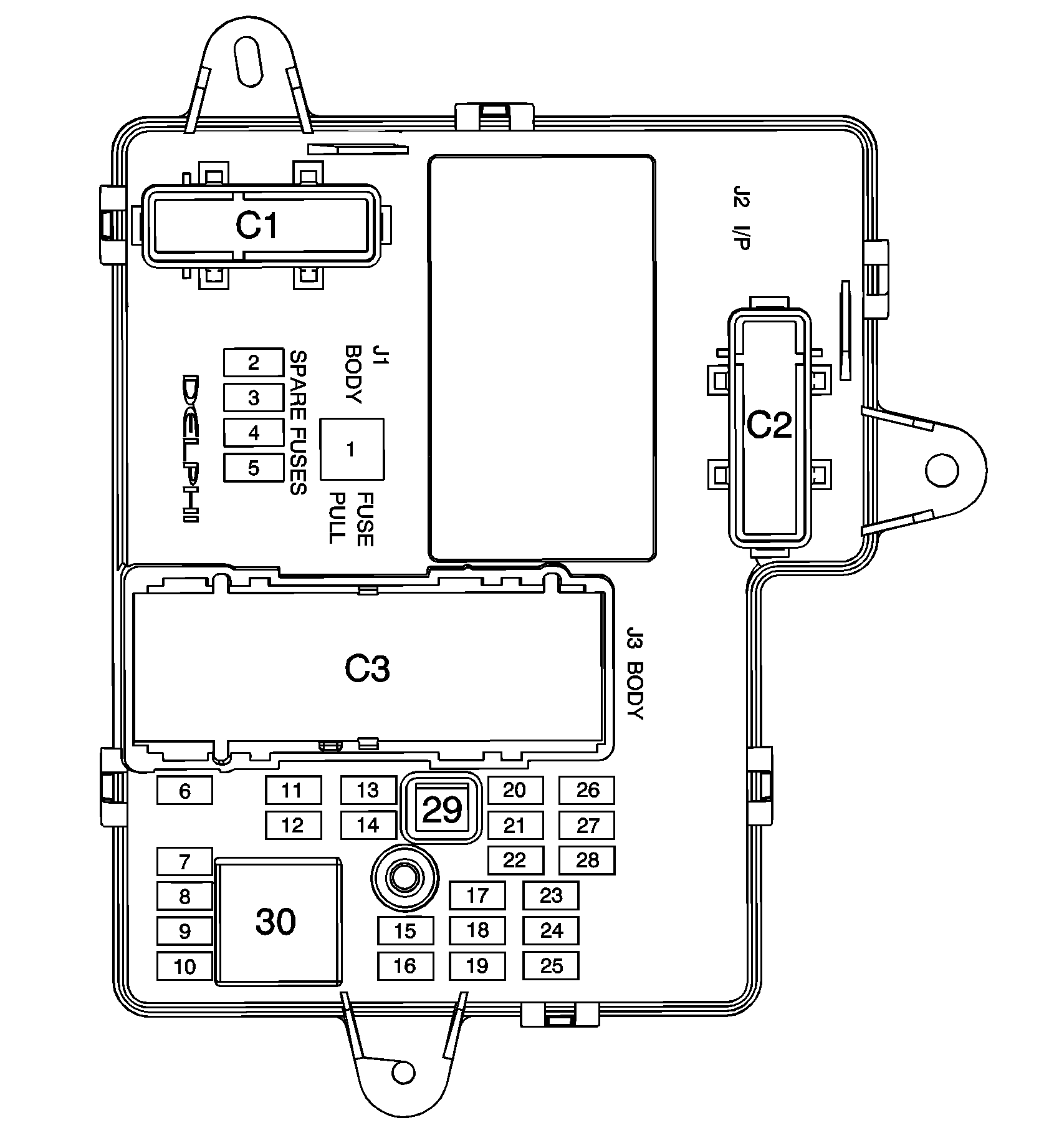

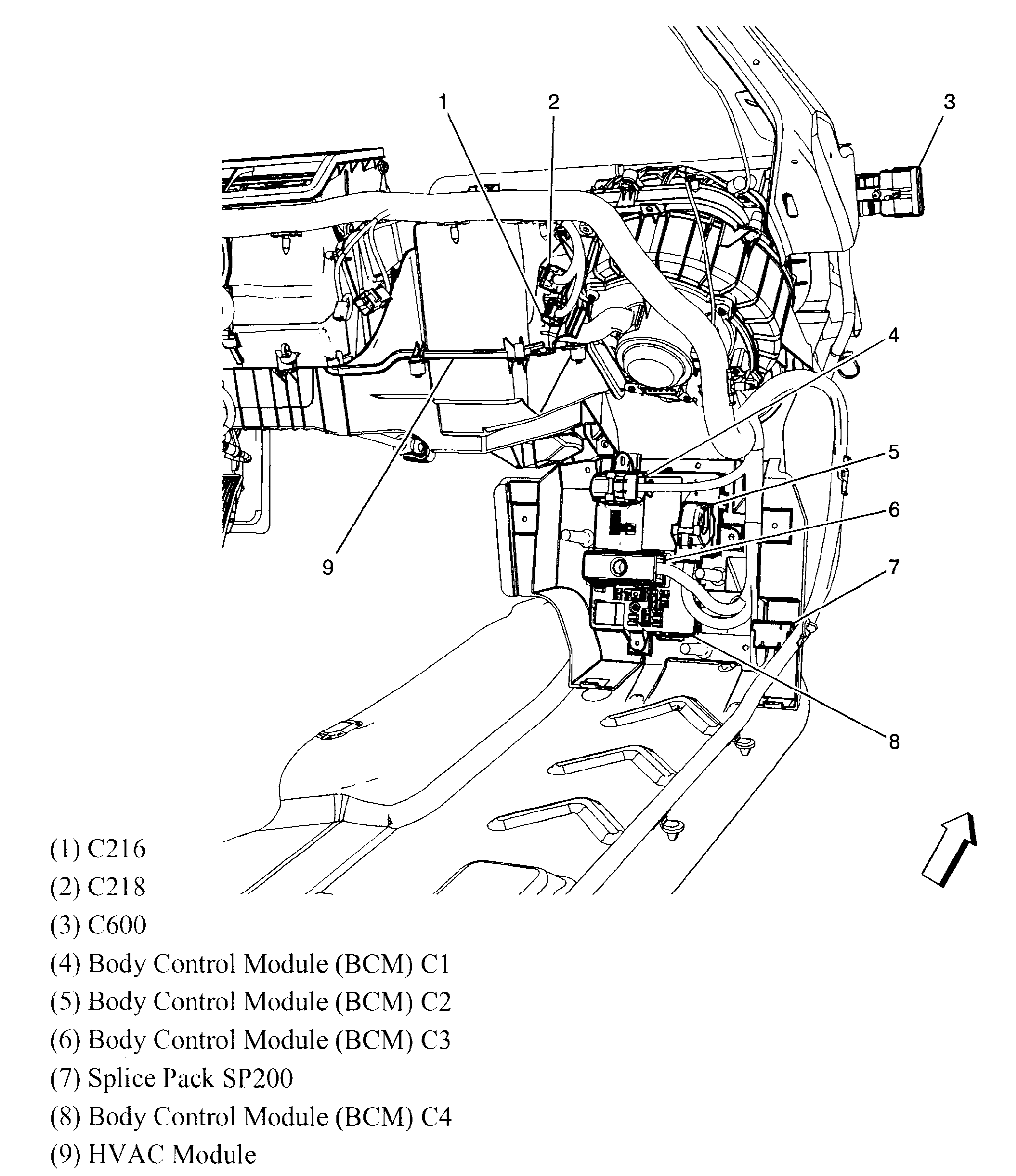

Body Control Module/Junction Block is located on the passenger side of the lower instrument panel. See Fig 1.

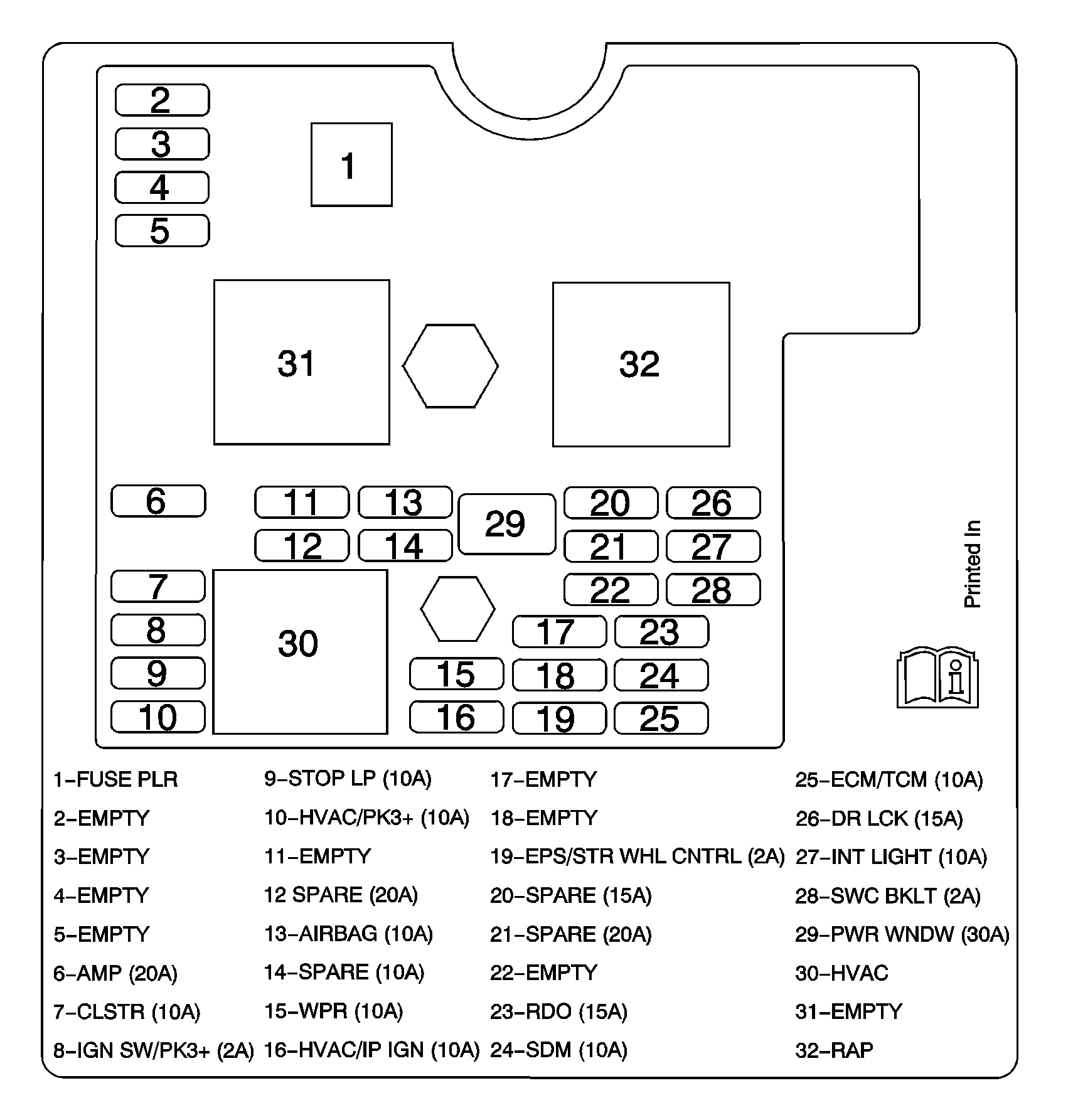

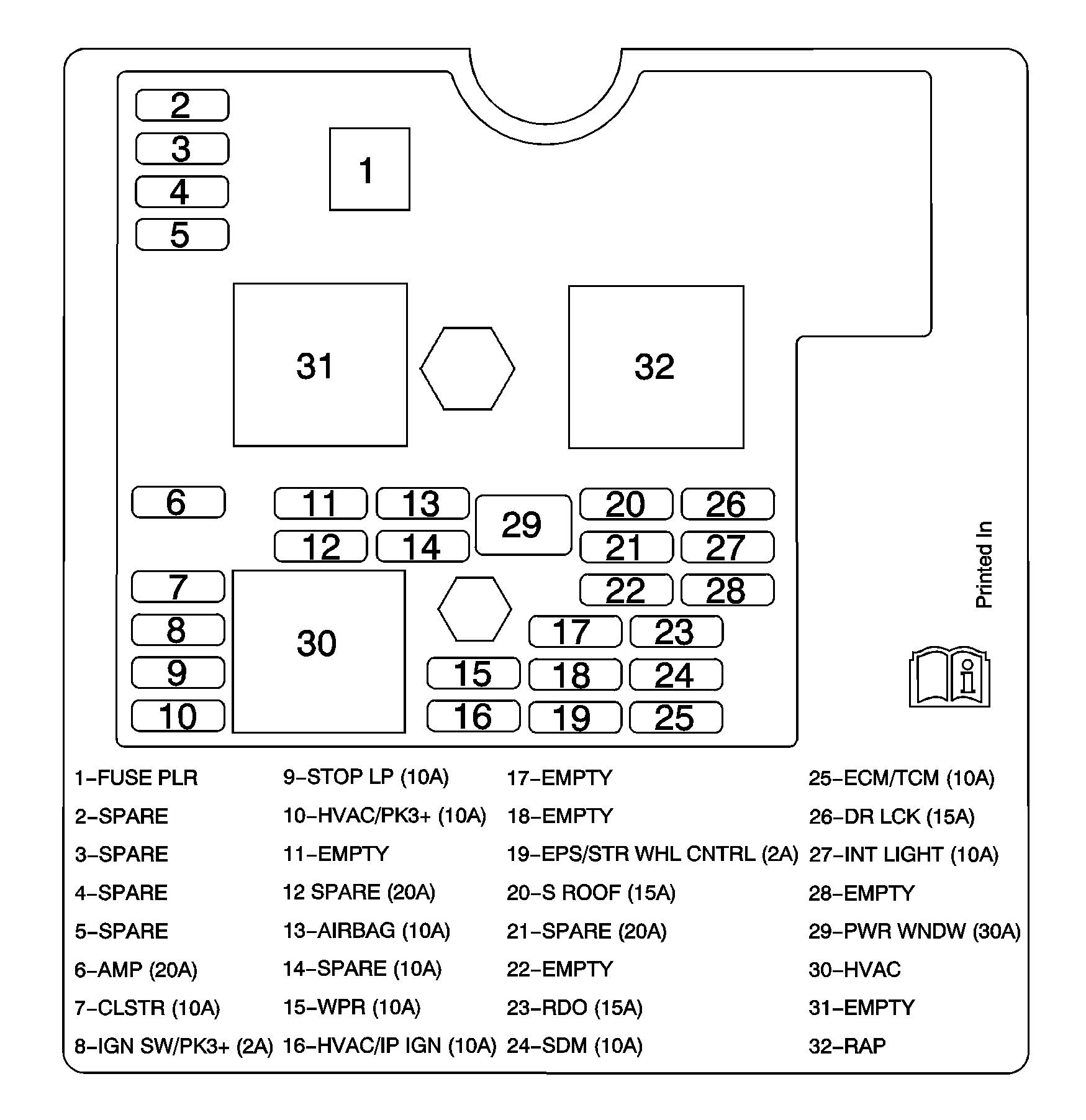

FUSE IDENTIFICATION LEGEND (PASSENGER COMPARTMENT - JUNCTION BOX)
| No. | Device | Rating (A) | Description |
|---|---|---|---|
| 1 | FUSE PLR | -- | -- |
| 2 | SPARE (Early Production) | -- | Spare Fuse |
| EMPTY (Late Production) | -- | Not Used | |
| 3 | SPARE (Early Production) | -- | Spare Fuse |
| EMPTY (Late Production) | -- | Not Used | |
| 4 | SPARE (Early Production) | -- | Spare Fuse |
| EMPTY (Late Production) | -- | Not Used | |
| 5 | SPARE (Early Production) | -- | Spare Fuse |
| EMPTY (Late Production) | -- | Not Used | |
| 6 | AMP Fuse | 20A | Audio Amplifier |
| 7 | CLSTR Fuse | 10A | Instrument Panel Cluster |
| 8 | IGN SW/PK3+ Fuse | 2A | Ignition Switch |
| 9 | STOP LP Fuse | 10A | Not Used |
| 10 | HVAC/PK3+ Fuse | 10A | Theft Deterrent Module and HVAC Control Module |
| 11 | EMPTY | -- | Not Used |
| 12 | SPARE Fuse | 20A | Spare Fuse |
| 13 | AIRBAG Fuse | 10A | Inflatable Restraint Sensing and Diagnostic Module (SDM) and Inflatable Restraint Passenger Presence System (PPS) Module |
| 14 | SPARE Fuse | 10A | Spare Fuse |
| 15 | WPR Fuse | 10A | Windshield Wiper/Washer Switch |
| 16 | HVAC/IP IGN Fuse | 10A | Clutch Start Switch (MA5), Fuse Block - Underhood (M82), HVAC Control Module, Inflatable Restraint Passenger Air Bag ON/OFF Indicator, and Instrument Panel Cluster (IPC) |
| 17 | EMPTY | -- | Not Used |
| 18 | EMPTY | -- | Not Used |
| 19 | EPS/STR WHL CNTRL Fuse | 2A | Inflatable Restraint Steering Module Coil |
| 20 | S ROOF Fuse (Early Production) | 15A | Not Used |
| SPARE (Late Production) | 15A | Spare Fuse | |
| 21 | SPARE Fuse | 20A | Spare Fuse |
| 22 | EMPTY | -- | Not Used |
| 23 | RDO Fuse | 15A | Radio |
| 24 | SDM Fuse | 10A | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 25 | ECM/TCM Fuse | 10A | Engine Control Module (ECM) and Transmission Control Module (TCM) (M82) |
| 26 | DR LCK Fuse | 15A | DOOR LOCK PCB Relay, DOOR UNLOCK PCB Relay, and DR DOOR UNLOCK PCB Relay |
| 27 | INT LIGHT Fuse | 10A | INADVERTENT LOAD CONTROL PCB Relay |
| 28 | EMPTY (Early Production) | -- | Not Used |
| SWC BKLT (Late Production) | 2A | Steering Wheel Control Switch - Left and Steering Wheel Control Switch - Right | |
| 29 | PWR WNDW Fuse | 30A | Window Switch - Driver and Window Switch - Passenger |
RELAY IDENTIFICATION LEGEND (ENGINE COMPARTMENT - JUNCTION BOX)
| No. | Relay Description | Circuits |
|---|---|---|
| 30 | HVAC Relay | Blower Motor and Blower Motor High Speed Relay |
| 31 | EMPTY | Not Used |
| 32 | RAP Relay | PWR WNDW and S ROOF Fuses |
PCB RELAY IDENTIFICATION LEGEND (ENGINE COMPARTMENT - JUNCTION BOX)
| Relay Description | Circuits |
|---|---|
| DOOR LOCK PCB Relay | Door Latch - Driver and Door Latch - Passenger |
| DOOR UNLOCK PCB Relay | Door Latch - Passenger |
| DR DOOR UNLOCK PCB Relay | Door Latch - Driver |
| INADVERTENT LOAD CONTROL PCB Relay | Inside Rearview Mirror |
| * : Printed Circuit Board (PCB) Relays - Not Serviceable | |
