Vehicle Access Component Views

Fig 1: Driver Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Actuator - Driver
2	Window Switch - Driver (A31)
3	Outside Rearview Mirror - Driver (D48)
4	Outside Rearview Mirror Switch (D48)
5	Speaker - LF Door
6	C166
7	C165
8	Window Motor - Driver (A31)

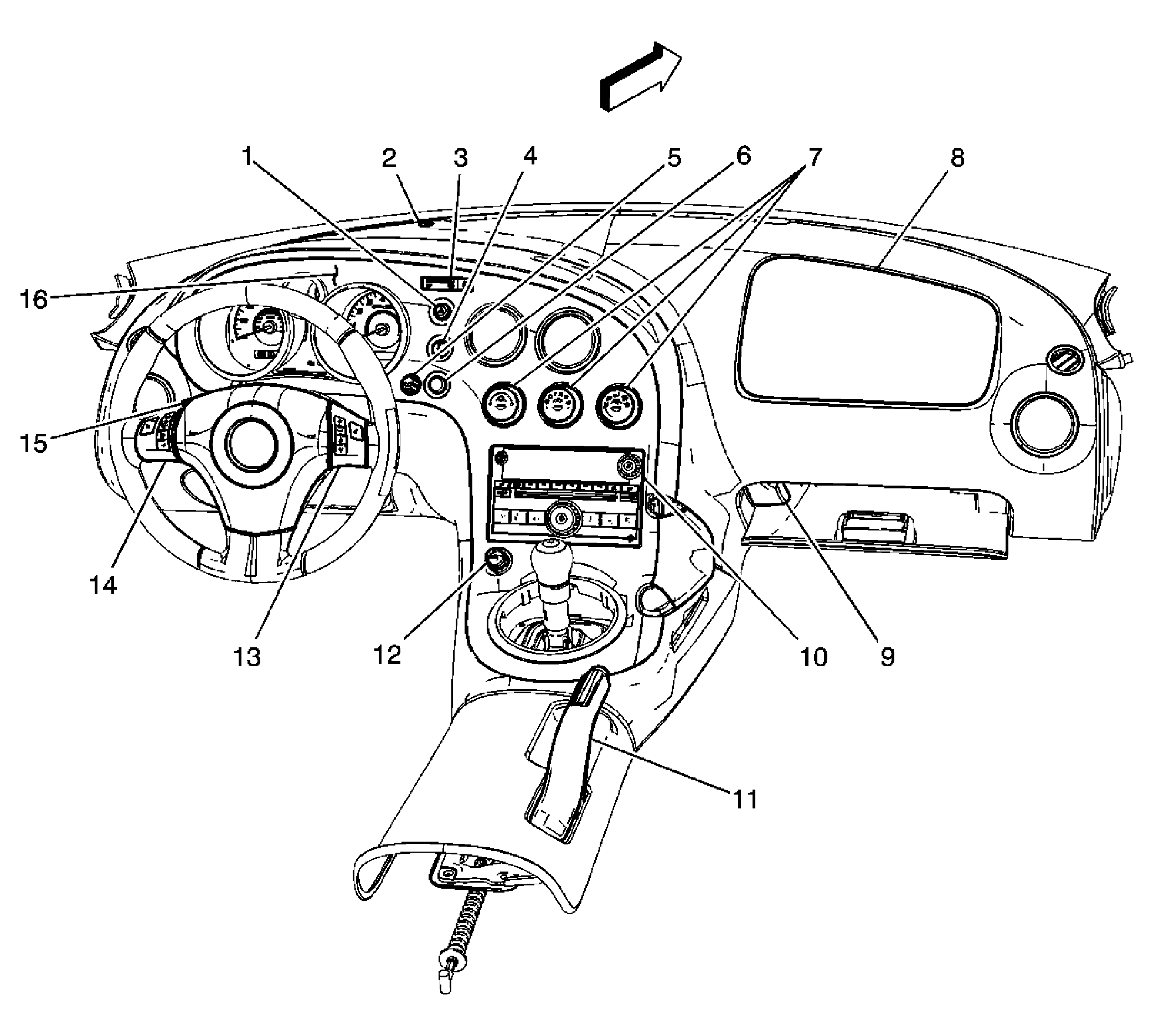

Fig 2: I/P Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hazard Switch
2	Ambient Light Sensor
3	Inflatable Restraint Passenger Airbag On/Off Indicator
4	Fog Lamp Switch (T96)
5	I/P Dimmer Switch
6	Traction Control Switch (if equipped)
7	HVAC Control Module
8	Inflatable Restraint I/P Module
9	Rear Compartment Lid Release Switch
10	Radio/Navigation Unit (UE1/U2K)
11	Park Brake Lever
12	Auxiliary Power Outlet
13	Steering Wheel - Controls - Right
14	Steering Wheel - Controls - Left
15	Inflatable Restraint Steering Wheel Module
16	Instrument Panel Cluster (IPC)

Fig 3: Passenger Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RF Door
2	Outside Rearview Mirror - Passenger (D48)
3	Door Lock Actuator - Passenger
4	Window Switch - Passenger (A31)
5	Window Motor - Passenger (A31)
6	C167

Fig 4: Rear Cargo Area (Convertible)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Ajar Switch
2	Rear Deck Lid
3	Folding Top Cover Actuator
4	Rear Compartment Lid Release Actuator
5	Folding Top Cover
