Radio Replacement

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

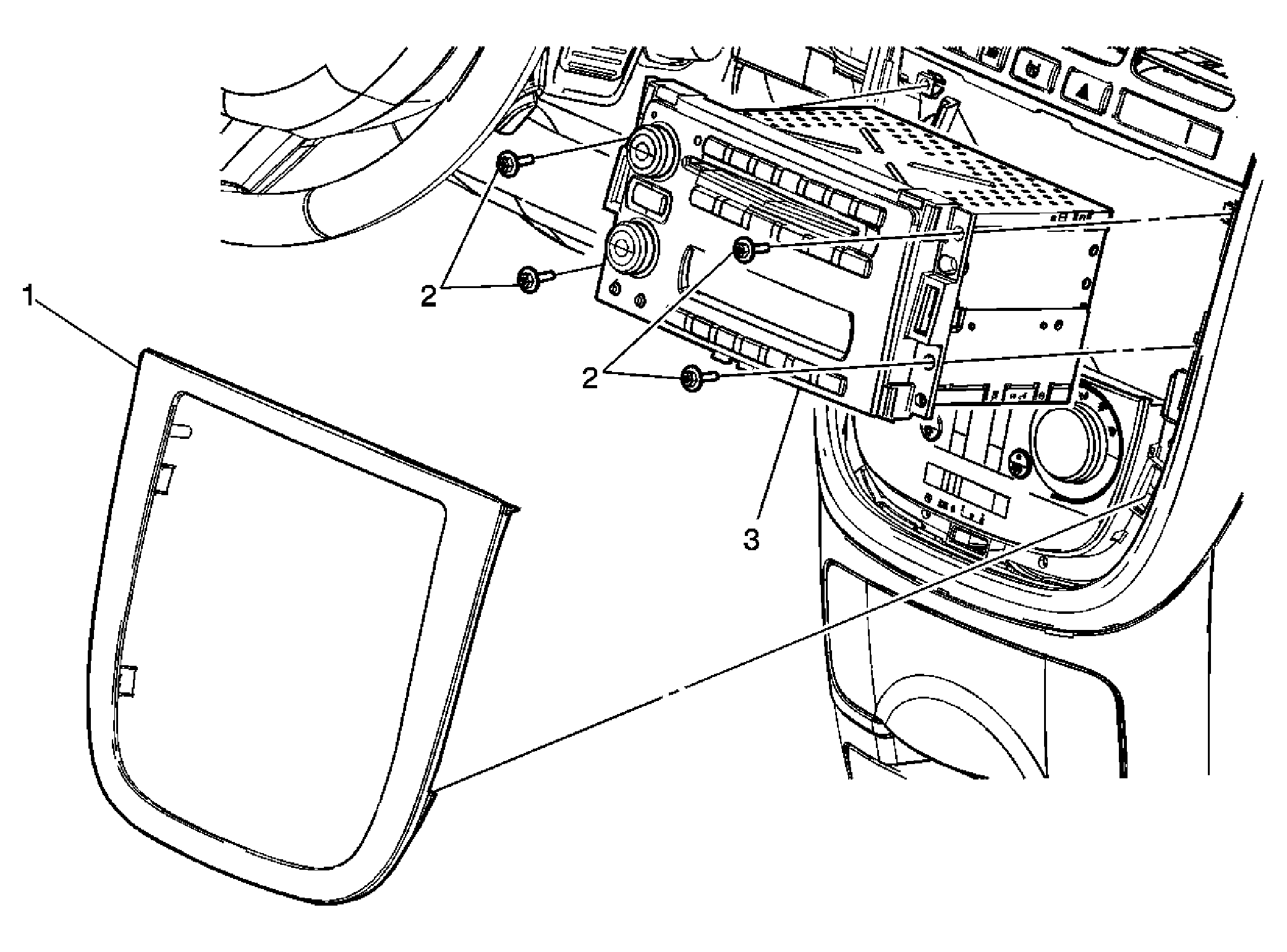

Fig 1: Radio

Courtesy of GENERAL MOTORS CORP.

Radio Replacement

Callout	Component Name
1	Panel, I/P Accessory Trim
2	Screw, Radio Assembly (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
3	Radio Assembly Refer to Control Module References for programming and setup information. Tip: Loosen the HVAC control enough to let the radio clear the I/P. Disconnect the antenna cable. Disconnect the electrical connector. Perform the radio setup procedure when replacement is complete. Refer to Radio Setup .
