Installation Procedure

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

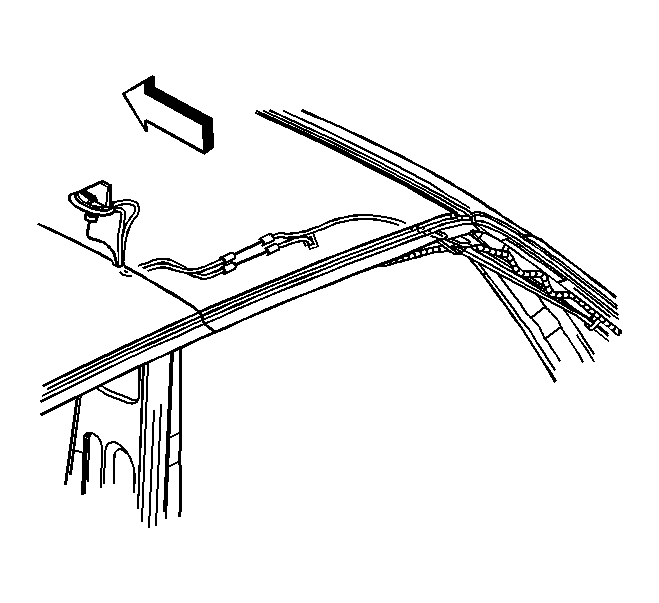

Fig 1: Antenna Base & Cable Connectors

Courtesy of GENERAL MOTORS CORP.

Route the antenna base cables through the roof opening.

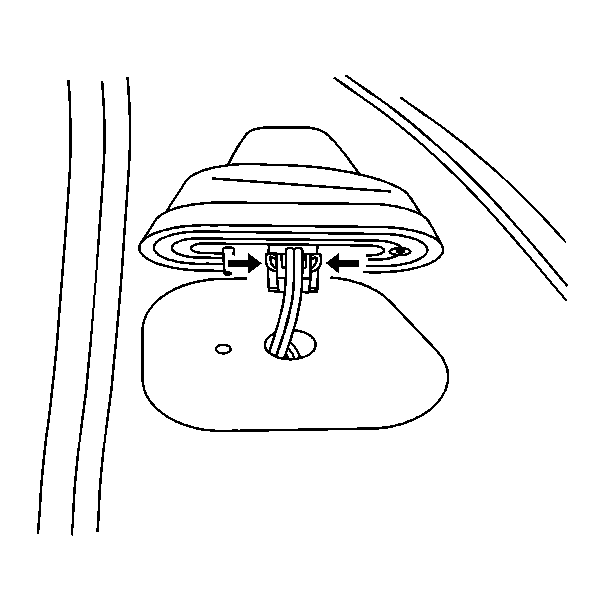

Fig 2: View Of Antenna Base Cable Connectors

Courtesy of GENERAL MOTORS CORP.

Install the antenna base to the roof.

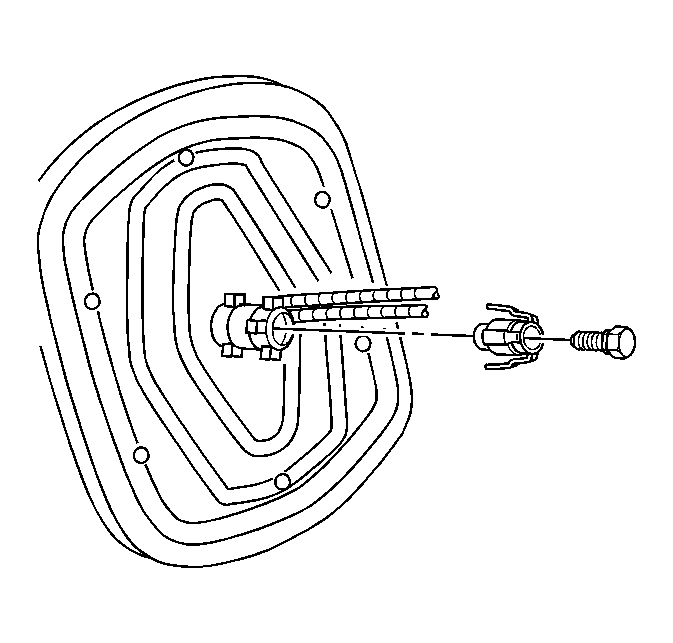

Fig 3: Identifying Antenna Base Bolt

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Secure the antenna base with the bolt.
Tighten: Tighten the bolt to 3 N.m (27 lb in).
Connect the antenna cables to the antenna base cable connectors.
Install the headliner. Refer to Headlining Trim Panel Replacement .
