Installation Procedure

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

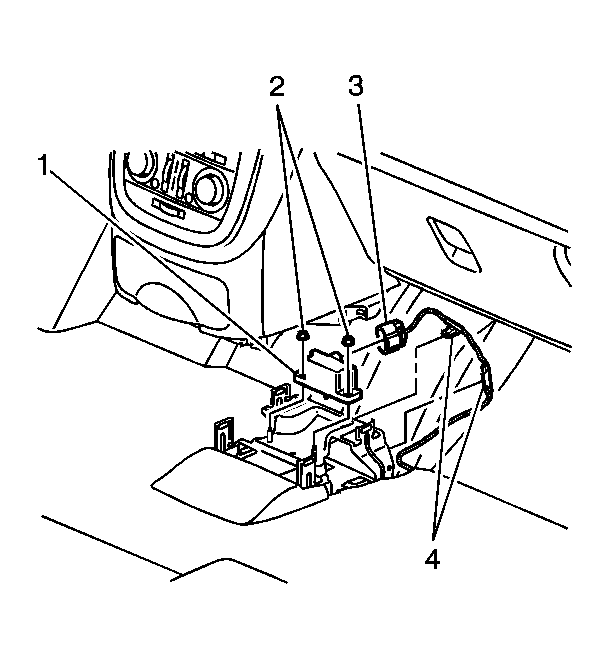

Fig 1: Locating Yaw Rate Sensor/Lateral Accelerometer

Courtesy of GENERAL MOTORS CORP.

Install the yaw rate sensor (1) to the console bracket.

NOTE: Refer to Fastener Notice .

Install the nuts (2) retaining the yaw rate sensor.
Tighten: Tighten the nuts to 9 N.m (80 lb in).
Connect the electrical connector (3) to the yaw rate sensor.
Install the front floor console bracket assembly. Refer to Front Floor Console Bracket Assembly Replacement .
