Installation Procedure

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install EBCM onto the BPMV if replacing the BPMV only. Refer to Electronic Brake Control Module Replacement .

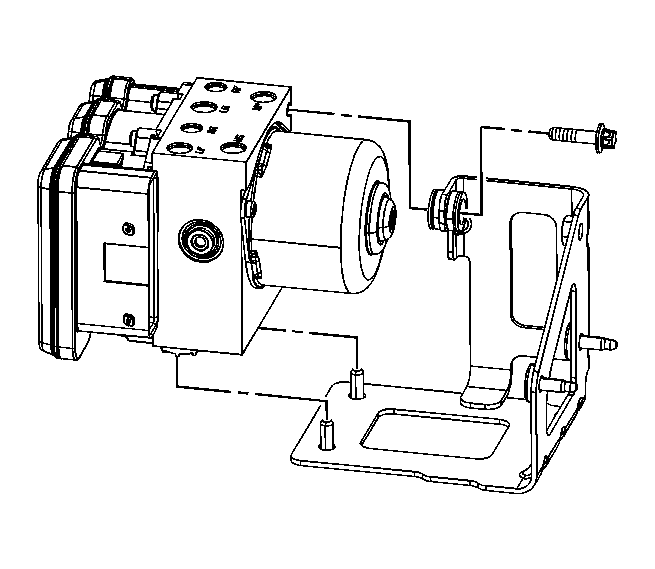

    2. Fig 1: Removing/Installing BPMV To Mounting Bracket Bolts
    GM1542701Courtesy of GENERAL MOTORS CORP.
  2. Install BPMV and EBCM as an assembly onto the mounting bracket studs.
    3. NOTE: Refer to Fastener Notice .
  3. Install the bolt that connects the BPMV assembly to the mounting bracket.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

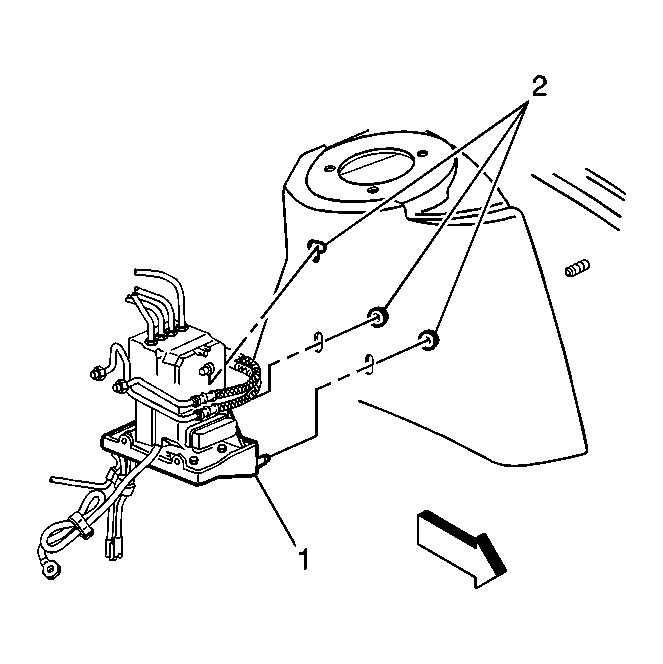

    4. Fig 2: Locating BPMV Mounting Bracket Nuts
    GM648180Courtesy of GENERAL MOTORS CORP.
  4. Install the BPMV bracket to the strut tower.
  5. Install the 3 nuts (2) that attach the BPMV mounting bracket to the strut tower.

    Tighten:

    • Tighten the nuts to 10 N.m (89 lb in).
    • Reposition any lines or hoses that were moved out of place.

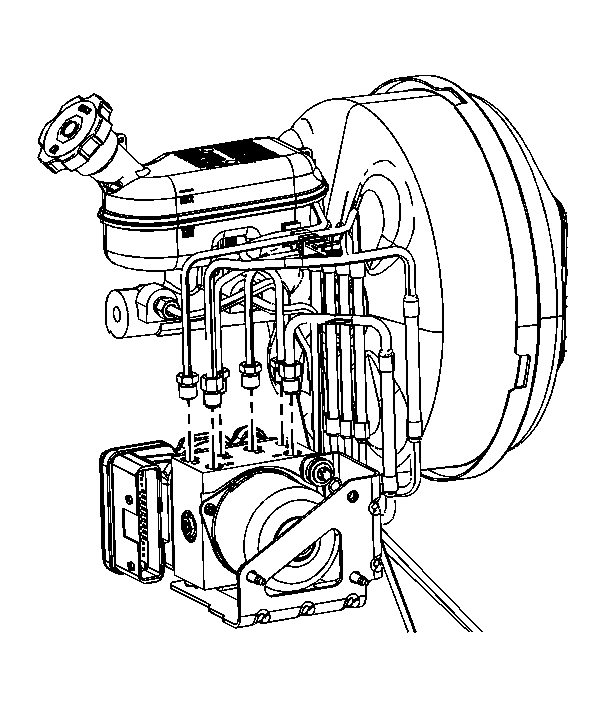

    6. Fig 3: View Of Brake Pressure Modulator Valve (BPMV)
    GM1542699Courtesy of GENERAL MOTORS CORP.
    CAUTION: Make sure brake pipes are correctly connected to brake pressure modulator valve. If brake pipes are switched by mistake, wheel lockup will occur and personal injury may result. The only two ways this condition can be detected are by using a Scan Tool or by doing an Antilock stop.
    IMPORTANT: If a new BPMV is being installed, remove the shipping plugs from the valve openings during the next few steps when ready.
  6. Install the master cylinder brake pipes into the BPMV.

    Tighten:  Tighten the fittings to 27 N.m (20 lb ft).

  7. Install the wheel brake pipes on the BPMV.

    Tighten:  Tighten the fittings to 20 N.m (15 lb ft).

    8. Fig 4: Identifying Electronic Brake Control Module
    GM1544732Courtesy of GENERAL MOTORS CORP.
  8. Connect the EBCM electrical harness connector (2).
  9. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  10. When all procedures have been completed, the automated ABS bleed procedure is required. Refer to Antilock Brake System Automated Bleed Procedure .
