Starter Motor Replacement

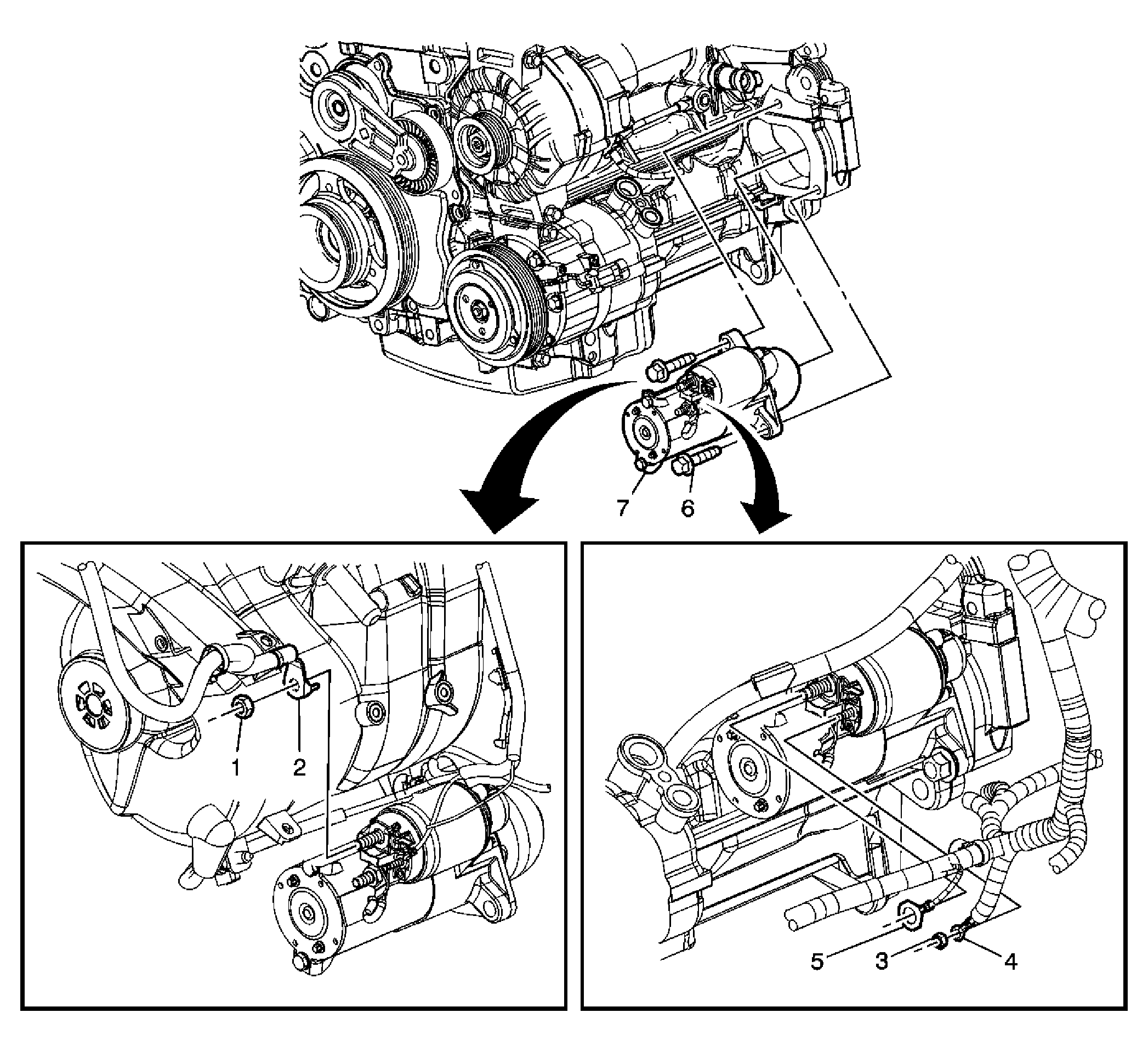

Fig 1: Starter Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the intake manifold. Refer to Intake Manifold Replacement or Intake Manifold Replacement .
1	Nut, Starter Solenoid Terminal Tighten: 10 N.m (89 lb in)
2	Terminal, Positive Battery Cable
3	Nut, Starter Solenoid "S" Terminal Tighten: 3 N.m (27 lb in)
4	Terminal, Engine Harness
5	Terminal, Engine Harness
6	Bolt, Starter Motor (Qty: 2) Tighten: 40 N.m (30 lb ft)
7	Motor, Starter
