Outside Rearview Mirror Motor Replacement

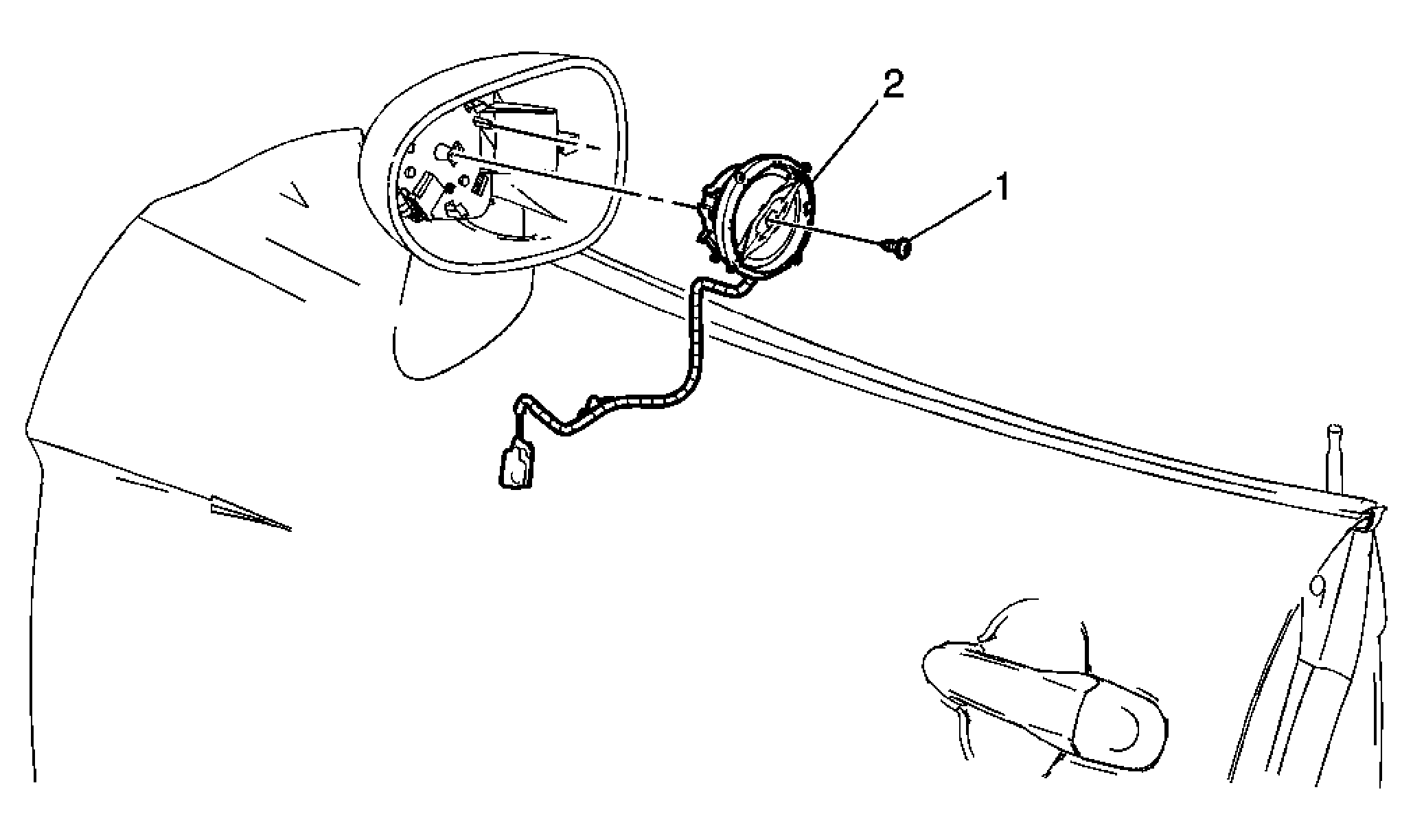

Fig 1: Outside Rearview Mirror Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the door trim panel. Refer to Door Trim Panel Replacement . Remove the door mirror face. Refer to Mirror Face Replacement .
1	Front Door Mirror Motor Screw NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Front Door Mirror Motor Tip: Disconnect the electrical connector from the mirror motor.

Callout

Component Name

Preliminary Procedures

Front Door Mirror Motor Screw

NOTE: Refer to Fastener Notice .

Tighten: 2 N.m (18 lb in)

Front Door Mirror Motor
Tip: Disconnect the electrical connector from the mirror motor.
