Front Side Door Window Regulator Replacement

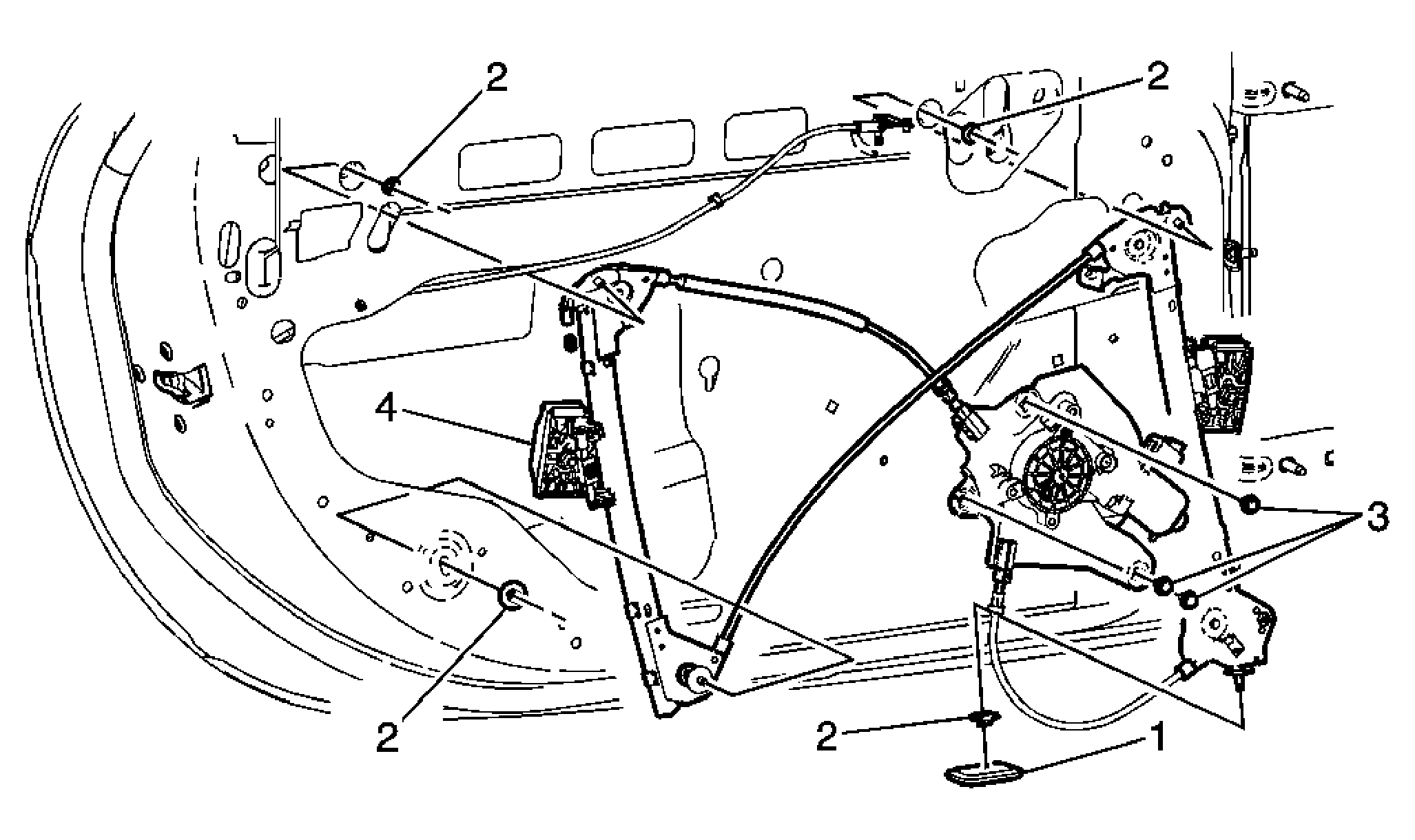

Fig 1: Front Door Power Window Regulator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the interior trim panel. Refer to Door Trim Panel Replacement . Remove the water deflector. Refer to Door Water Deflector Replacement . Remove the front side door window. Refer to Front Side Door Window Replacement .
1	Window Regulator Nut Access Plug Tip: Use a plastic flat-bladed tool to remove the plug from the bottom of the door.
2	Front Side Door Window Regulator Nut (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
3	Front Door Window Regulator Bolt (Qty: 3) Tighten: 10 N.m (89 lb in)
4	Front Door Power Window Regulator Tip: Disconnect the electrical connector from the regulator.
