Shoulder Belt Guide Adjuster Replacement - Front

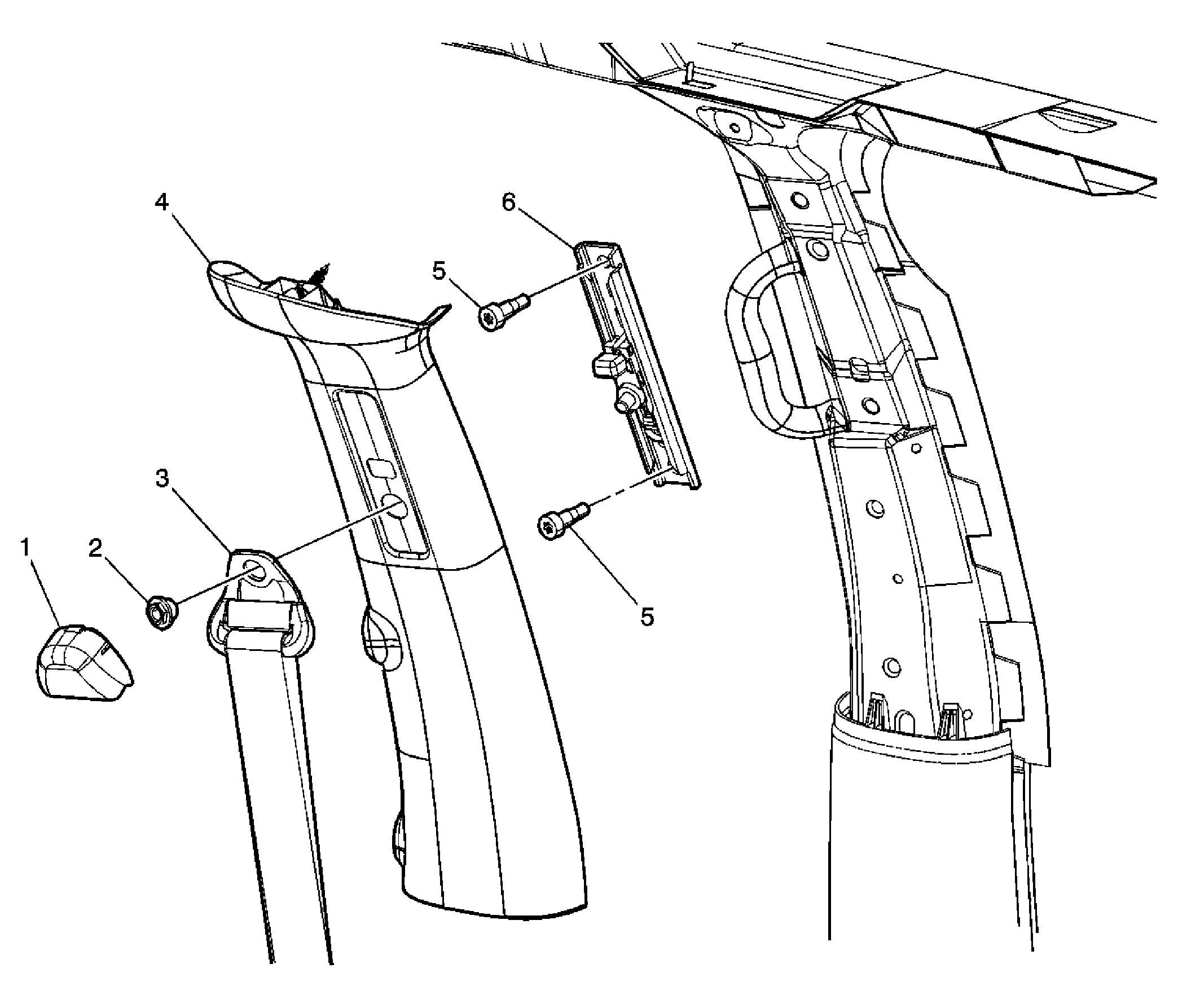

Fig 1: Identifying Front Seat Belt Guide Adjuster Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Cover, Shoulder Belt Guide Trim
2	Nut, Shoulder Belt Guide Tighten: 50 N.m (37 lb ft)
3	Guide, Shoulder Belt
4	Panel, Center Pillar Upper Trim Refer to Center Pillar Upper Trim Panel Replacement .
5	Bolts, Shoulder Belt Guide Adjuster (Qty: 2) Tighten: 50 N.m (37 lb ft)
6	Adjuster, Shoulder Belt Guide Tip: Ensure that the release lever is at the top of the adjuster bracket in the full up position.
