Washer Solvent Container Replacement

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

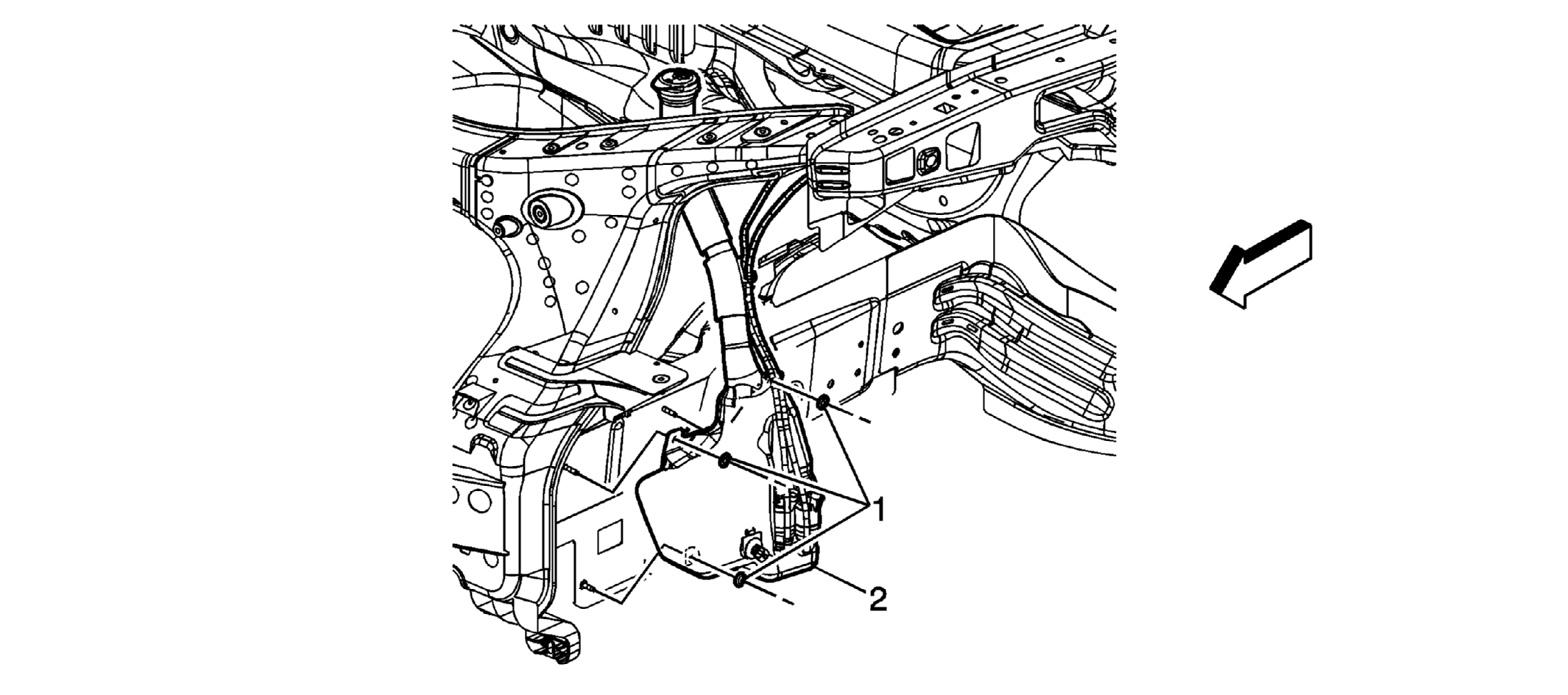

Fig 1: Identifying Windshield Washer Solvent Container

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Procedures Remove the left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Front) or Front Wheelhouse Liner Replacement (Rear) . Disconnect the washer pump hoses. Drain the washer solvent into a suitable clean container. Disconnect the washer pump electrical connectors. Disconnect the windshield washer level indicator electrical connector. Disconnect the upper neck from the lower portion of the washer solvent container.
1	Windshield Washer Solvent Container Nut (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Windshield Washer Solvent Container Tip: Remove the container from the front side rail studs. Transfer the washer pumps as needed. Transfer the level indicator as needed.

Callout

Component Name

Procedures

Remove the left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Front) or Front Wheelhouse Liner Replacement (Rear) .
Disconnect the washer pump hoses.
Drain the washer solvent into a suitable clean container.
Disconnect the washer pump electrical connectors.
Disconnect the windshield washer level indicator electrical connector.
Disconnect the upper neck from the lower portion of the washer solvent container.

Windshield Washer Solvent Container Nut (Qty: 3)

NOTE: Refer to Fastener Notice .

Tighten: 10 N.m (89 lb in)

Windshield Washer Solvent Container
Tip:

Remove the container from the front side rail studs.
Transfer the washer pumps as needed.
Transfer the level indicator as needed.
