Front Seat Lumbar Support Replacement

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

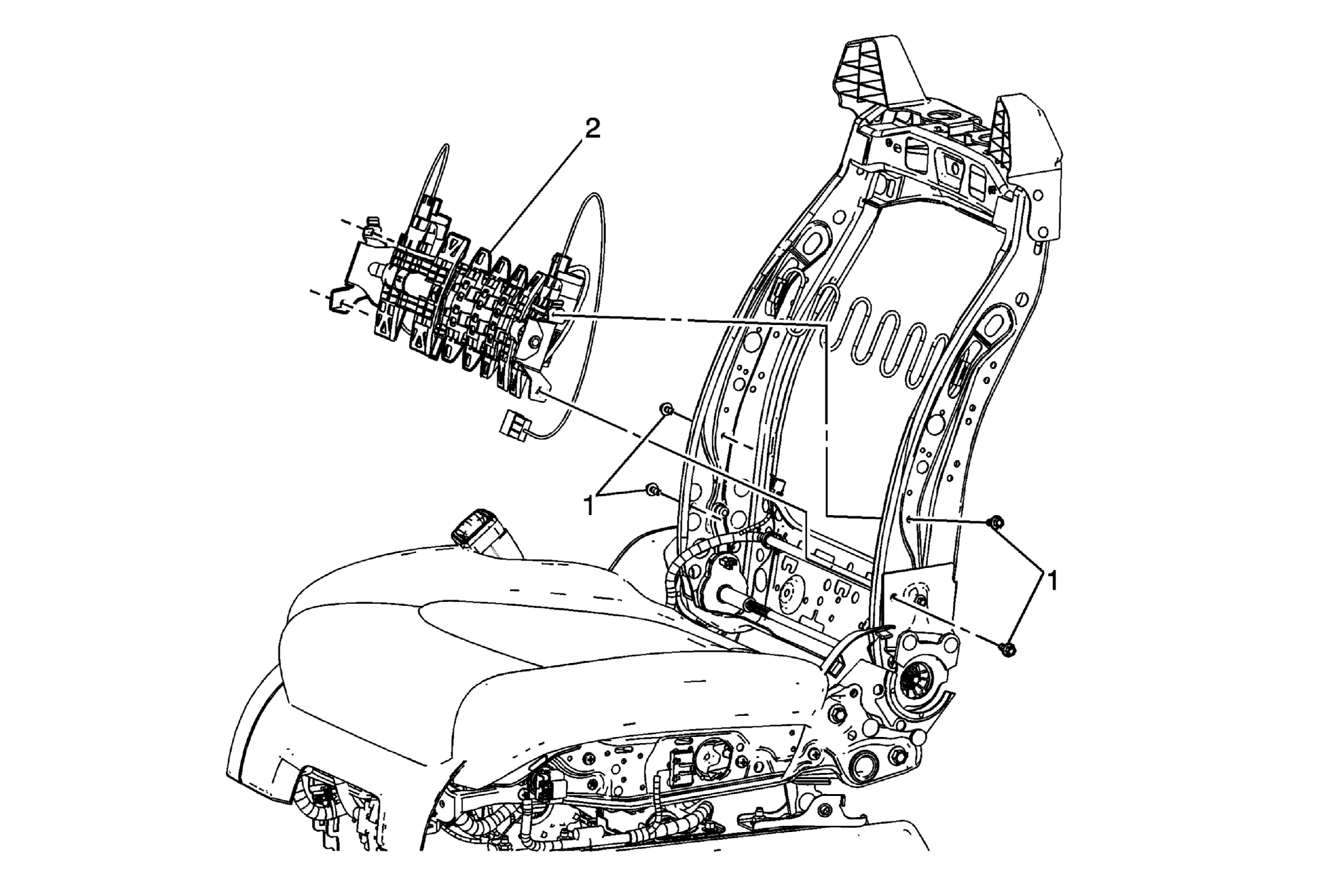

Fig 1: View Of Front Seat Lumbar Support
GM1828459Courtesy of GENERAL MOTORS CORP.
Front Seat Lumbar Support Replacement

Callout Component Name
Preliminary Procedure:
Remove the front seat back cushion cover j-clips and reposition the seat back cushion cover to gain access to the lumbar support and bolts.
1 Front Seat Lumbar Assembly Bolt (Qty: 4)
NOTE: Refer to Fastener Notice .

Tighten:  9 N.m (80 lb in)
2 Front Seat Lumbar Assembly
Procedure:
Disconnect the electrical connector.
