Inflatable Restraint Side Impact Sensor Replacement - Rear

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

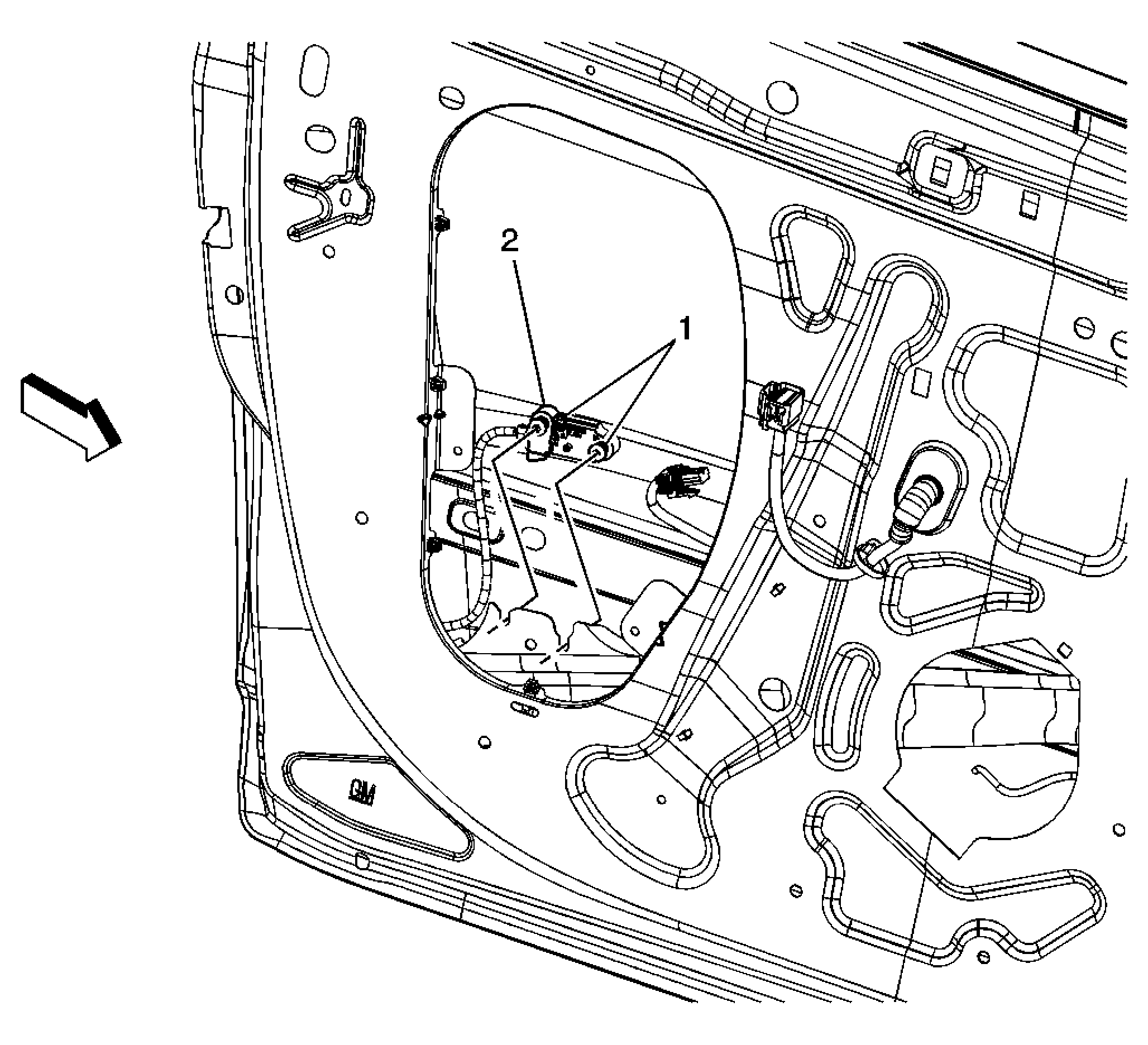

Fig 1: Locating Inflatable Restraint Side Impact Sensor - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: When performing service on or near the SIR components or the SIR wiring, the SIR system must be disabled. Refer to Inflatable Restraint Side Impact Sensor Replacement - Front . Failure to observe the correct procedure could cause deployment of the SIR components, personal injury or unnecessary SIR system repairs. CAUTION: Do not strike or jolt the inflatable restraint side impact sensor (SIS). Before applying power to the SIS make sure that it is securely fastened. Failure to observe the correct installation procedures could cause SIR deployment, personal injury or unnecessary SIR system repairs. Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the rear side door water deflector. Refer to Rear Side Door Water Deflector Replacement .
1	Inflatable Restraint Side Impact Sensor Module Bolts (Qty: 2) NOTE: Refer to Fastener Notice . Procedures Loosen the bolts and slide sensor out of key hole slots. Disconnect electrical connector. Tighten: 9 N.m (80 lb in)
2	Inflatable Restraint Side Impact Sensor Module

Callout

Component Name

CAUTION: When performing service on or near the SIR components or the SIR wiring, the SIR system must be disabled. Refer to Inflatable Restraint Side Impact Sensor Replacement - Front . Failure to observe the correct procedure could cause deployment of the SIR components, personal injury or unnecessary SIR system repairs.

CAUTION: Do not strike or jolt the inflatable restraint side impact sensor (SIS). Before applying power to the SIS make sure that it is securely fastened. Failure to observe the correct installation procedures could cause SIR deployment, personal injury or unnecessary SIR system repairs.

Preliminary Procedures

Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement .
Remove the rear side door water deflector. Refer to Rear Side Door Water Deflector Replacement .

Inflatable Restraint Side Impact Sensor Module Bolts (Qty: 2)

NOTE: Refer to Fastener Notice .

Procedures

Loosen the bolts and slide sensor out of key hole slots.
Disconnect electrical connector.

Tighten: 9 N.m (80 lb in)

Inflatable Restraint Side Impact Sensor Module
